Brother MFC-J6920DW Service Manual

3-123
Confidential

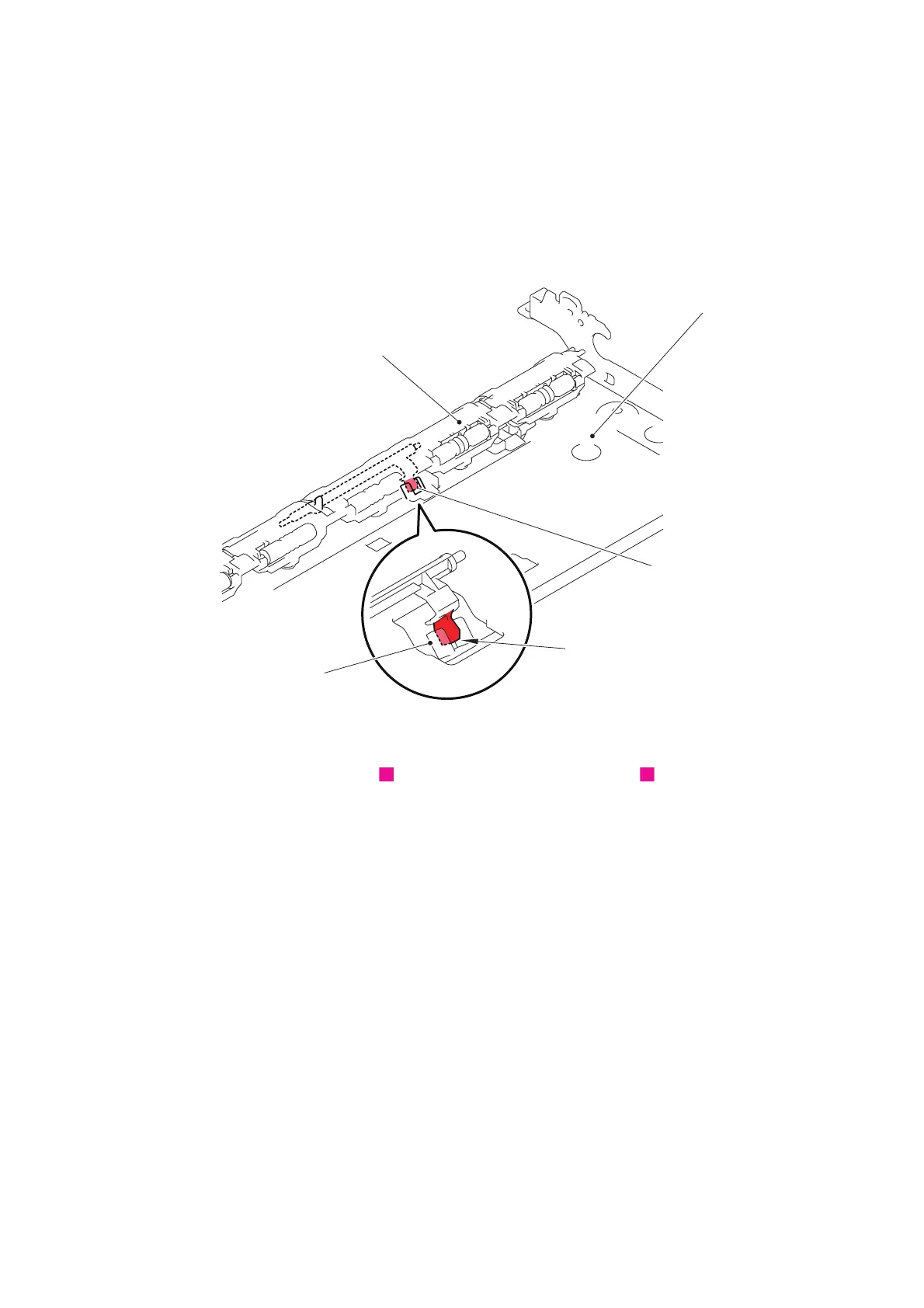

Assembling Note:
1) Assemble the Inner chute ASSY to the Frame base so that the actuator of the
Inner chute ASSY works correctly against the Registration sensor PCB ASSY of
the Frame base.
2) The state of the Assembling Note: 1) must be maintained when the DX paper guide
ASSY is assembled.
Fig. 3-148
Harness routing: Refer to " Registration sensor harness", " Lower cover (Right
side)"
Inner chute ASSY
Registration sensor PCB ASSY
Actuator
Actuator
Frame base
6 7

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
