Brother MFC-J6920DW Service Manual

4-14
Confidential

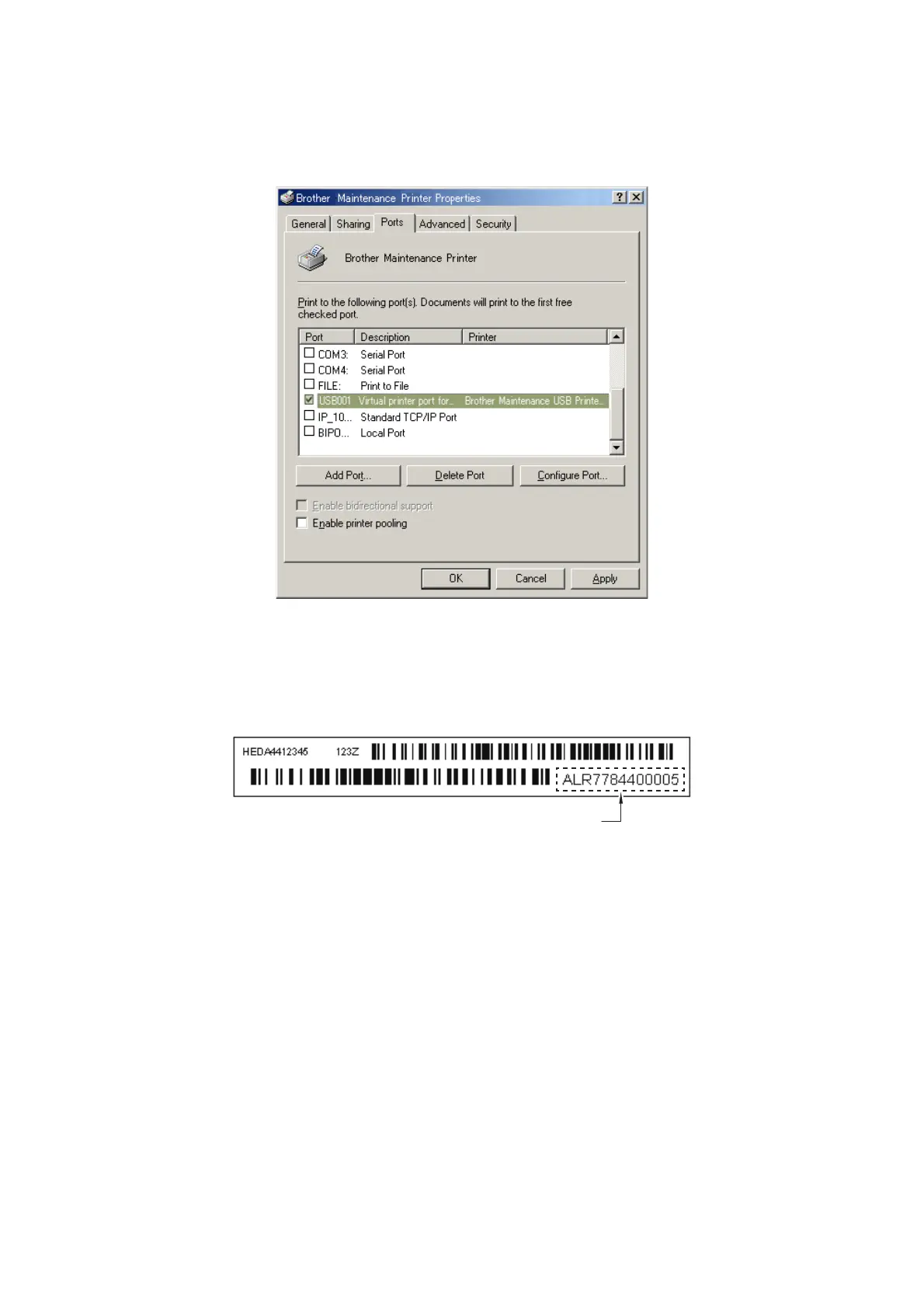

The Brother Maintenance Printer Properties window appears as shown below.
4) Click the Ports tab.
In this example, the port number assigned to the Brother Maintenance USB Printer
is USB001.
(7) In the Head Info. box, type the 13-digit head property code. The head property
data is printed on the bar code label attached to the head/carriage unit.
Tip: Opening the scanner cover when the machine is on maintenance mode 75
moves the head/carriage unit to the center of its travel. This makes it possible
to check the head property label through the opening. (refer to Chapter 5,
Section 1.3.28 "Move of the Head/Carriage Unit to the Center").
(8) Click the OK key.
(9) Wait for the confirmation screen of the head property code entered to appear, then
click Yes.
(10)Use Maintenance mode 80 to display the head property data and check that the
entered data is correct.
Head property data

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
