BRP-Rotax
INSTALLATION MANUAL
Harness Interface
Connector B
The HIC Connector B is equipped with a Maintenance CAN interface, a Display CAN inter-
face and terminals which can be used to actuate a warning lamp indicating the current sta-
tus of the ECU Lane B. Interfaces to control elements are described in Chapter 76-00-00.
AE 5iS_0187

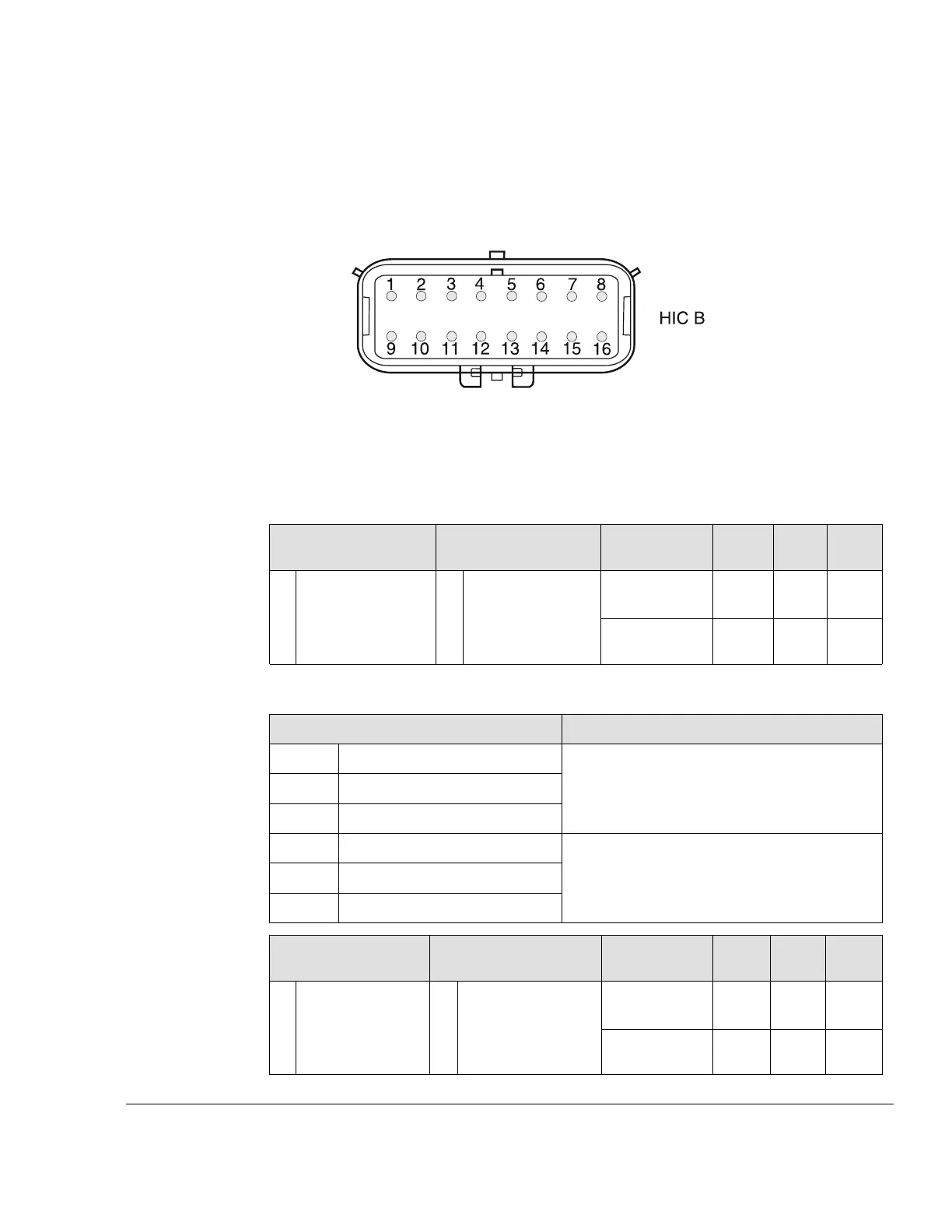

Figure 10.5: HIC B connector
Warning Lamp
Terminal (Supply) Terminal (Ground) Interface
Parameter
Min. Max. Nom-
inal
2
SUPP_WARN_
LAMP_B
10
WARN_LAMP_B Nominal
voltage
12 V
Nominal
current
120
mA
CAN Interfaces
Terminal
Specification
6
CAN_GND_1_B Display CAN Lane B
7
CAN_LOW_1_B
8
CAN_HIGH_1_B
14 CAN_GND_2_B Maintenance CAN Lane B
15
CAN_LOW_2_B
16
CAN_HIGH_2_B
Terminal (Supply) Terminal (Ground) Interface
Parameter
Min. Max. Nom-
inal
2 SUPP_WARN_
LAMP_B
10
WARN_LAMP_B Nominal
voltage
12 V
Nominal
current
120
mA
Effectivity: 916 i A / C24
Edition 0/Rev. 1
77–00–00
Page 7
December 01 2023
