2. PROGRAM THE INTERFACE
2-1 Introduction
This chapter describes how to program your system for the desired interface.
2-2 Program the Interface - Plug and Play
Plug and Play bar codes provide instant scan engine set up for commonly
used interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have
the interface in effect.
2-2-1 RS232 serial port
The RS232 Interface bar code is used when connecting to the serial port of a
PC or terminal. It also programs a carriage return (CR) and a line feed (LF)
suffix, baud rate, and data format as indicated below. It also changes the
trigger mode to manual.

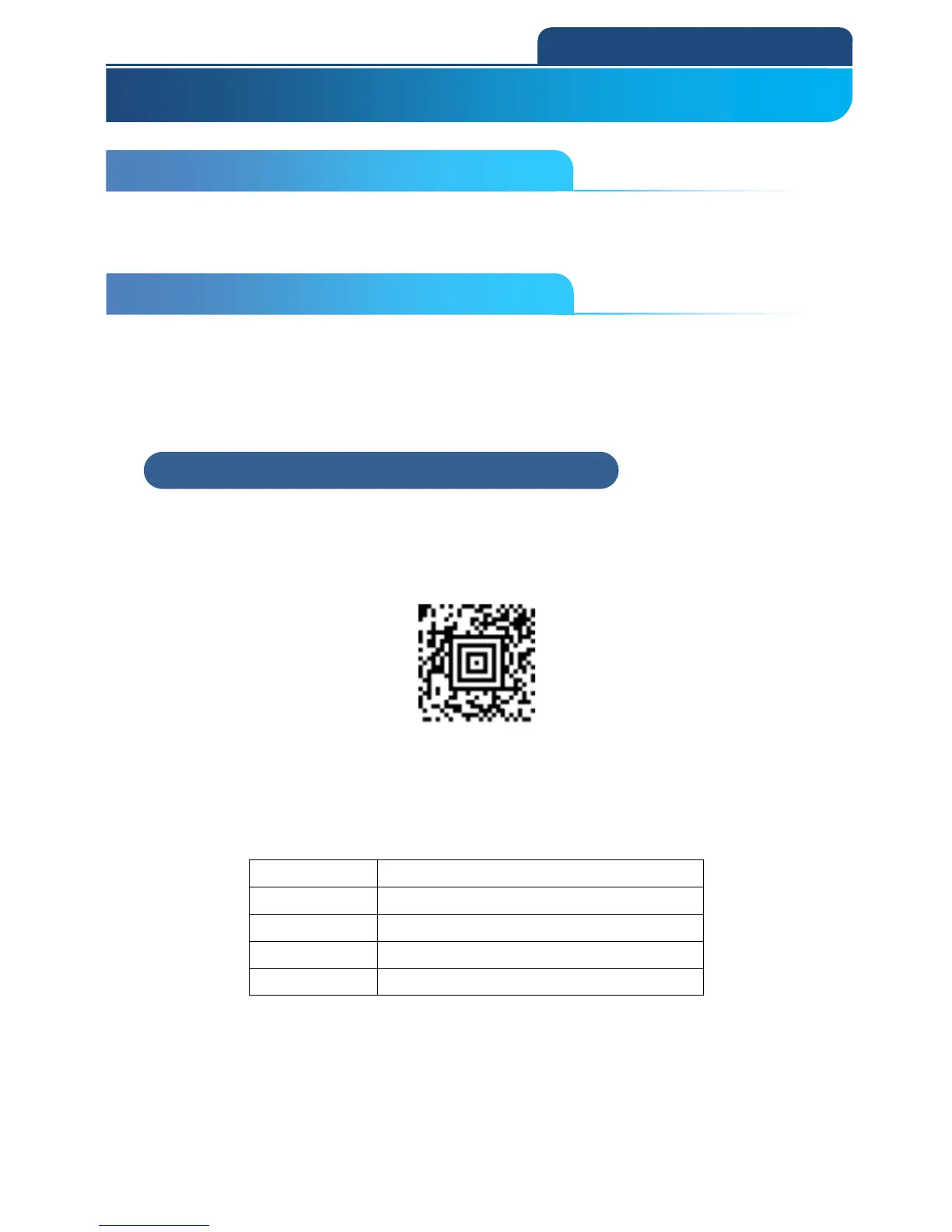

TERMID0;232BAD9;232WRD2
RS-232 interface
And the setting parameter for RS232C is as below :
Parameter information
Baud rate 115,200bps
Data Format 8 bits, no parity, 1 stop bit
suffix CR/LF
Trigger mode Manual trigger
