2. PROGRAM THE INTERFACE
2-8-2 RS232 Word Length Data Bits, Stop Bits, and Parity
Data Bits sets the word length at 7 or 8 bits of data per character. If an
application requires only ASCII Hex characters 0 through 7F decimal (text,
digits, and punctuation), select 7 data bits. For applications that require use of
the full ASCII set, select 8 data bits per character. Default = 8
Stop Bits sets the stop bits at 1 or 2. Default = 1
Parity provides a means of checking character bit patterns for validity.
Default = None

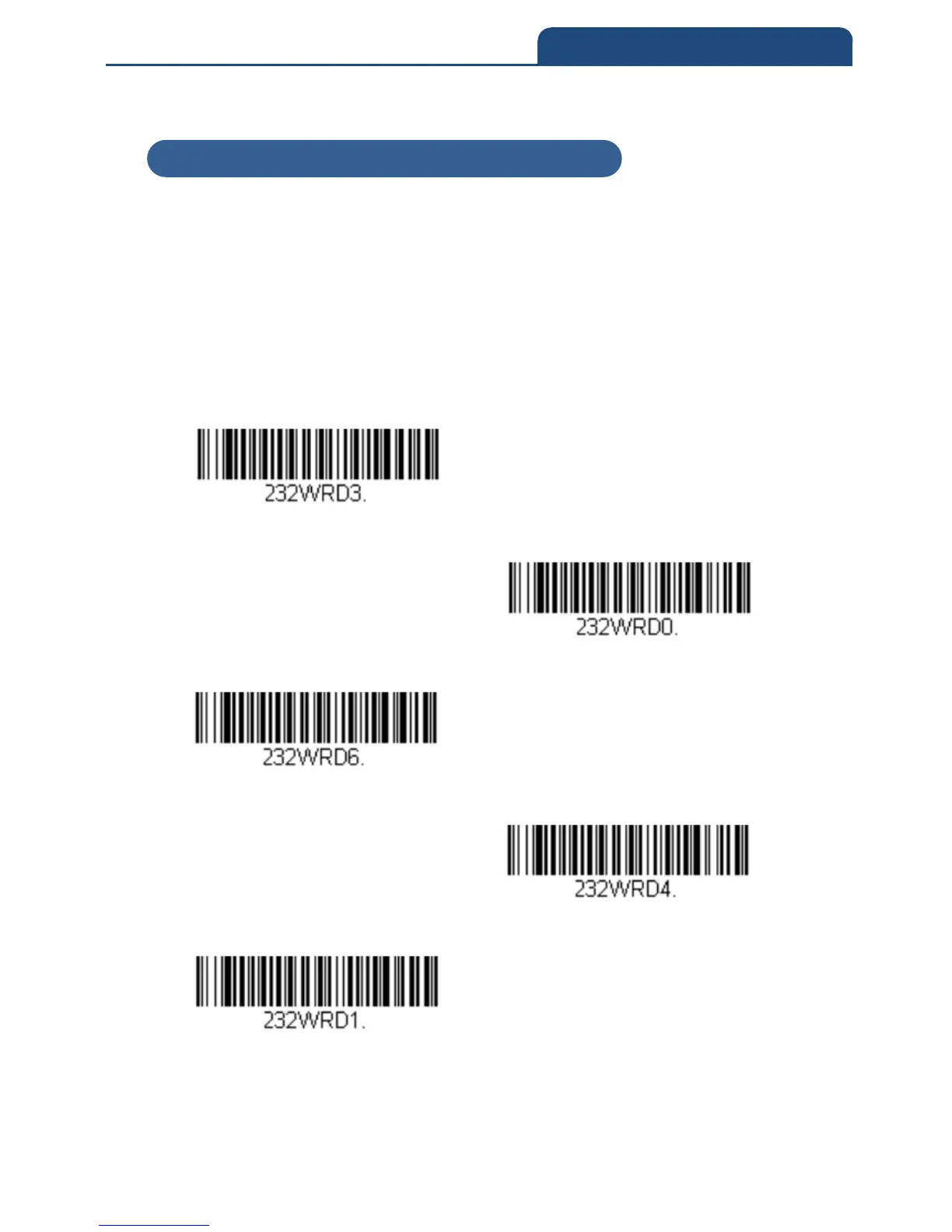

7 data, 1 stop, parity Even
7 data, 1 stop, parity none
7 data, 1 stop, parity odd
7 data, 2 stop, Parity Even
7 data, 2 stop, Parity None
2-8-2 RS232 Word Length Data Bits, Stop Bits, and Parity
