Canon imagePROGRAF iPF810 User Manual

Handling rolls
Selecting the Paper T ype (Roll)
When changing the type of paper after the paper has been advanced, specify the type of paper as follows.
Important
• For best printing results, the printer ne-tunes the feed amount for each type of paper . Be sure to select
the type of paper to use correctly before printing.
• Because the printer ne-tunes the feed amount for each type of paper , the margins and the size of
printed images may vary depending on the type of paper used. If margins and the size of images are not
as you expected, adjust the paper feed amount and Printhead height.
( → P .562)
( → P .561)
Note
• After you load the roll, the printer automatically shows a menu for selection of the paper type on
the Display Screen , unless a barcode has been printed on the roll or you have activated automatic
monitoring of the remaining roll paper . Select the type of paper , and then press the OK button.
If no barcode has been printed on the roll and you have activated automatic monitoring of the remaining
roll paper , specify the roll length after the paper type. ( → P .135)

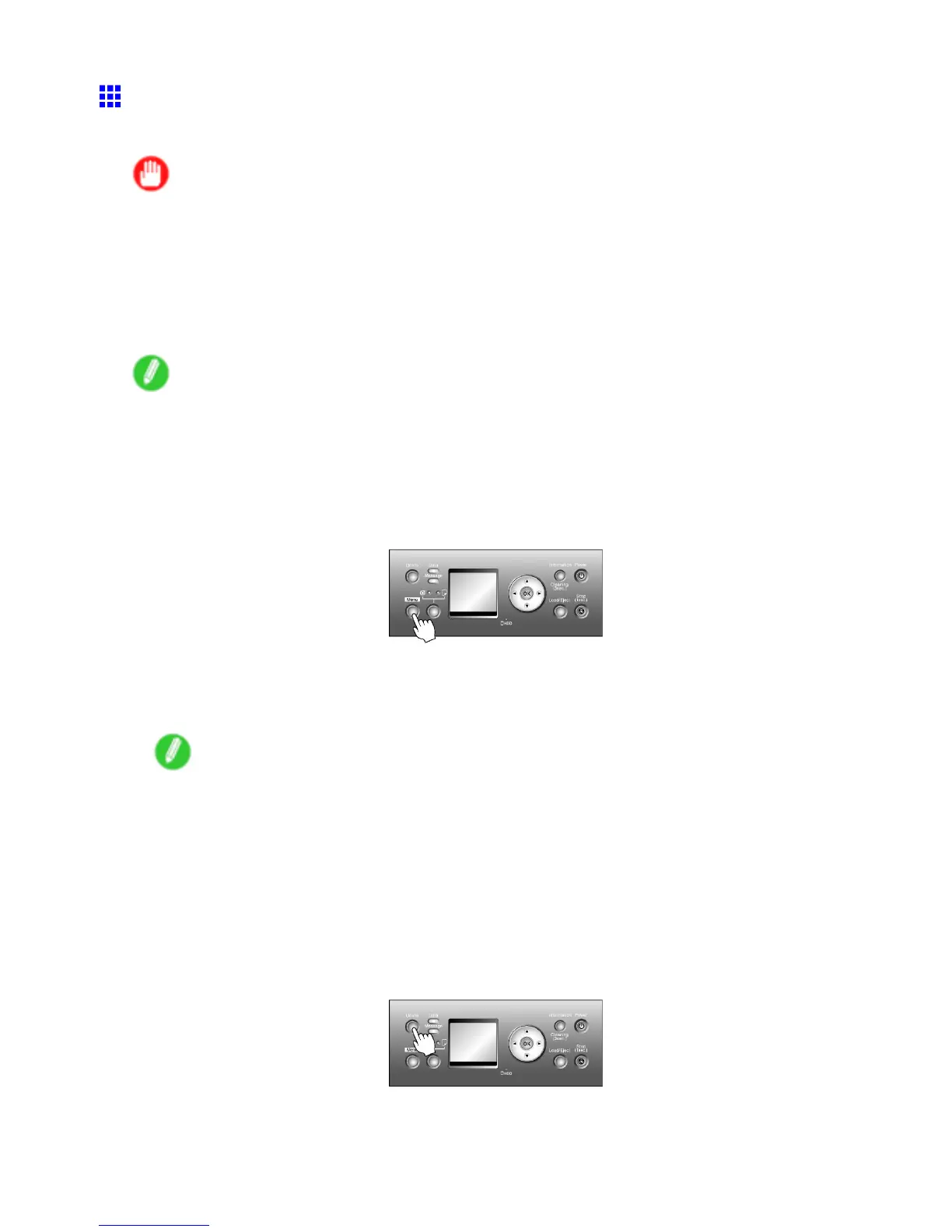

1. Press the Menu button to display MAIN MENU .
2. Press ▲ or ▼ to select Media Menu , and then press the ► button.
3. Press ▲ or ▼ to select Roll Media T ype , and then press the ► button.
4. Press ▲ or ▼ to select the type of paper loaded in the printer , and then press the OK button.
Note
• For details on types of paper , see the Paper Reference Guide . ( → P .125) By default, Plain Paper
is selected.
• If you move the Release Lever , the setting automatically reverts to the previously selected paper .
• Be sure to select the correct paper type. If this setting does not match the loaded paper , it may
cause feed errors and af fect printing quality .
• If automatic monitoring of the remaining roll is deactivated ( Off is selected) and you have selected a
type of paper for which width detection is deactivated ( Off is selected), you must advance the paper
manually to the position for printing. ( → P .167)
5. Press the Online button to bring the printer online.
134 Handling Paper

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
