Maintenance Cartridge
Checking the Remaining Maintenance Cartridge Capacity
The Maintenance Cartridge absorbs excess ink from borderless printing, printhead cleaning, and other
processes. Y ou can conrm the remaining capacity of the Maintenance Cartridge by checking the
Maintenance Cartridge capacity shown on the Display Screen .

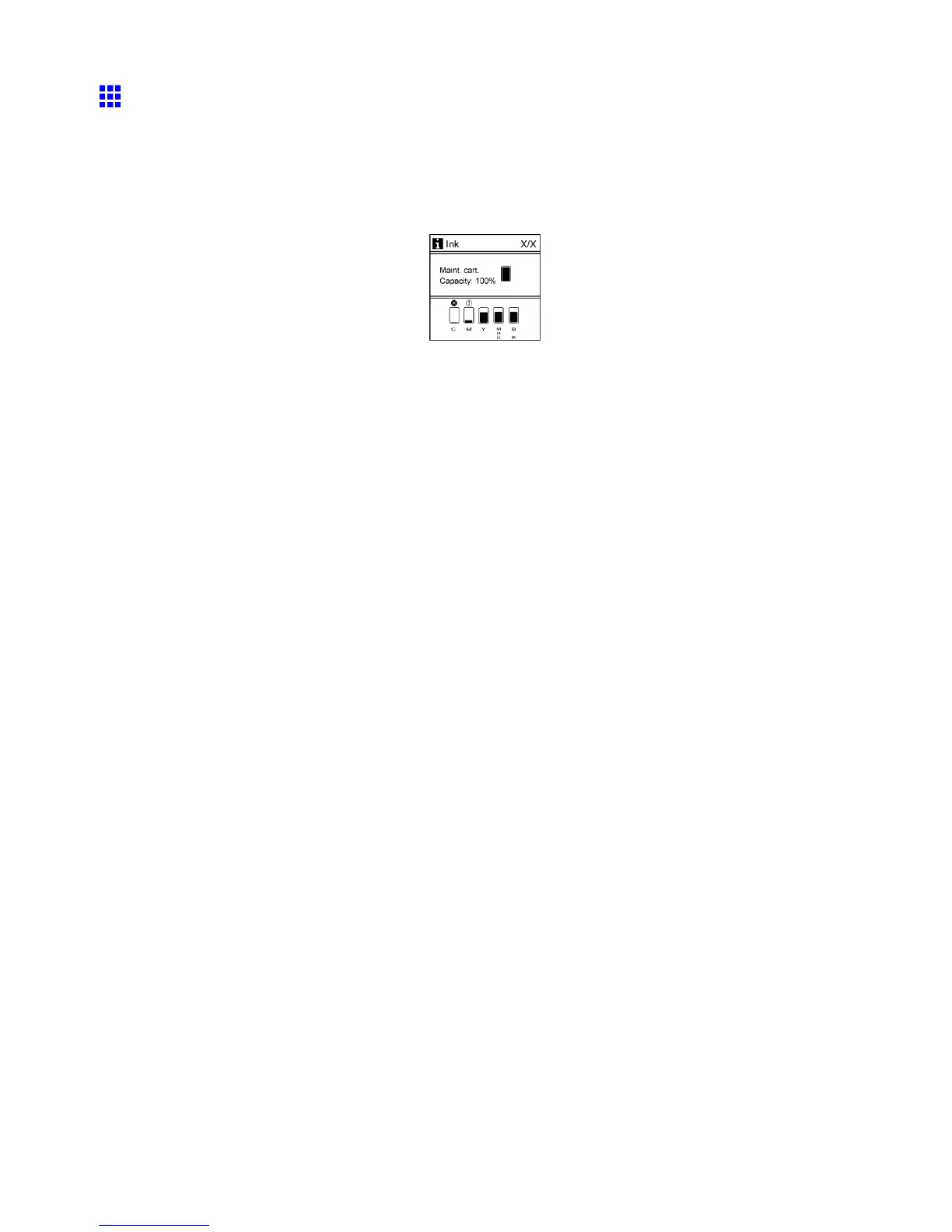

Press the Information button to display the remaining capacity of the Maintenance Cartridge on the Display
Screen .
If the Display Screen indicates to replace the Maintenance Cartridge , replace the Maintenance Cartridge . If a
message is displayed indicating to check the remaining capacity of the Maintenance Cartridge , or before
tasks that deplete much of the capacity such as head cleaning or preparations to move the printer , check the
remaining Maintenance Cartridge capacity and replace the Maintenance Cartridge as needed. ( P .595 )
Maintenance 603

Table of Contents

Other manuals for Canon imagePROGRAF iPF810

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Canon imagePROGRAF iPF810 and is the answer not in the manual?

Canon imagePROGRAF iPF810 Specifications

Print Specifications IconPrint Specifications
print resolution2400 x 1200 dpi
line accuracy±0.1% or Less
minimum line weight0.02 mm
number of nozzles (Matte Black)5, 120 Nozzles
number of nozzles (Other Colors)2, 560 Nozzles per Color
droplet size4 Picoliter
nozzle pitch (head resolution)1200 dpi x Two Rows
print-head swath1.07 inch
Ink and Media IconInk and Media
ink type (Dye)Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)Matte Black (MBK)
ink tank shipped with printerPFI-303 (330ml) MBK, C, M, Y, K
ink tank replacementPFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)10" – 44" (254mm – 1118mm)
media width (Cut Sheet)8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)59' (18m)
maximum print length (Cut Sheet)63" (1.6m)
media thickness0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter5.9" (150mm)
Power and Noise IconPower and Noise
power supplyAC 100–240V (50-60Hz)
power consumption (Maximum)190W or Less
power consumption (Standby)6W or Less
acoustic noise (Operation)52dB (A) or Less
acoustic noise (Standby)35dB (A) or Less
acoustic power6.8 Bels or Less
Operating Environment IconOperating Environment
temperature59 – 86 F° (15 – 30 C°)
relative humidity10 – 80% (No Condensation)
Weight and Dimensions IconWeight and Dimensions
printer dimensions (iPF810/iPF810 PRO)45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)Approx. 768 lb. (348kg)
