Printer parts

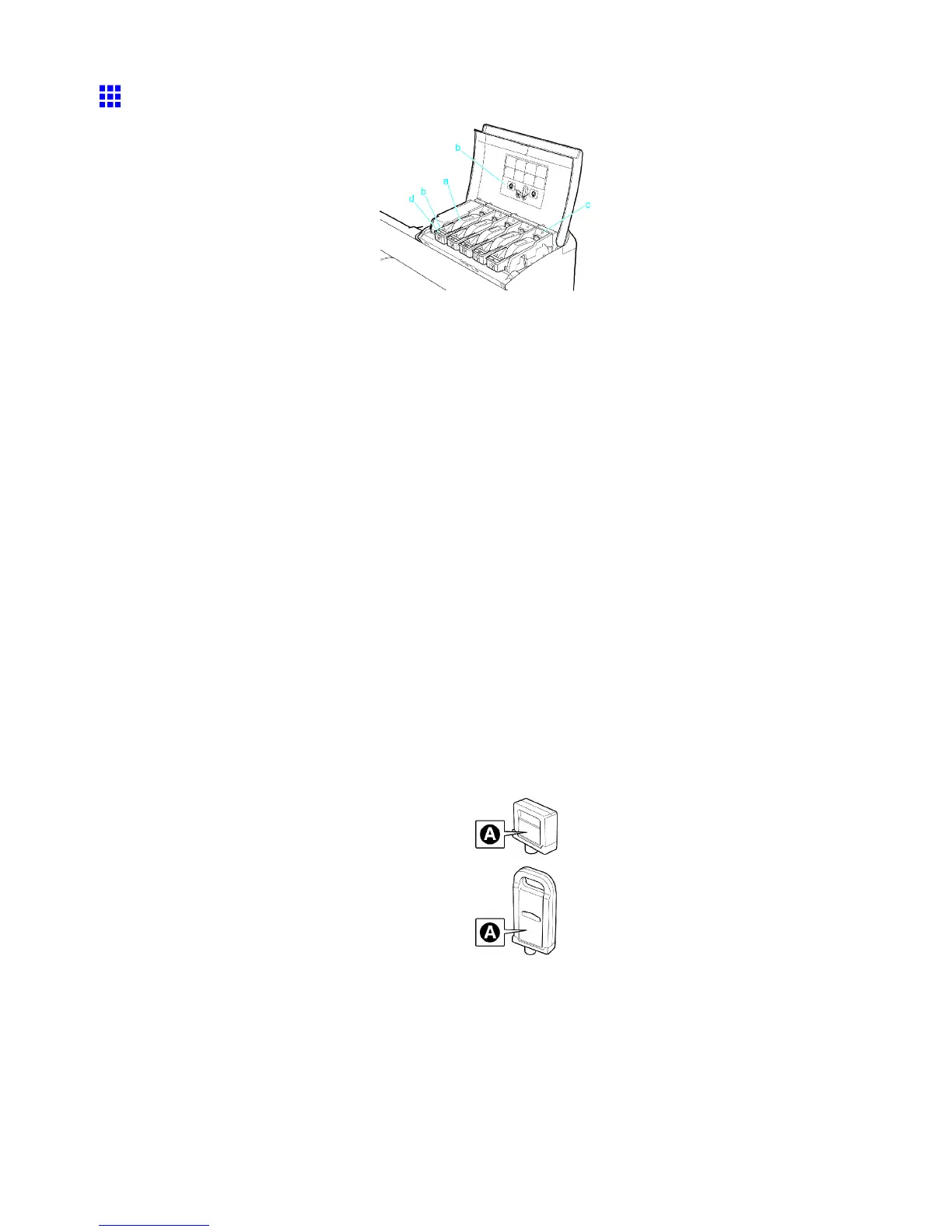

Ink T ank Cover (Inside)
Note: The gure shows the printer as loaded with 700 ml (23.7 oz) Ink T ank .
a. Ink T anks
Cartridges of ink in various colors.
b. Ink T ank Lock Lever
A lever that locks the Ink T ank in place and protects it. Lift and lower the lever when replacing an Ink
T ank . T o open it, lift the stopper of the lever until it stops, and then push it down toward the front. T o
close it, push it down until it clicks into place.
c. Ink Lamp (Red)
Indicates the state of the Ink T ank as follows when the Ink T ank Cover is opened.
• On
The Ink T ank is installed correctly .
• Of f
No Ink T ank is installed, or the ink level detection function is disabled.
• Flashing Slowly
Not much ink is left.
• Flashing Rapidly
Ink tank is empty .
d. Ink Color Label
Load an Ink T ank that matches the color and name on this label.
e. Ink Set
An Ink T ank that can be used in the printer is labeled with a white letter “A” in a black circle on the
side. When purchasing an Ink T ank , make sure an “A” is printed on the label. ( → P .572)
Printer Parts 19
