Maintenance Cartridge
Replacing the Shaft Cleaner
Replace the Shaft Cleaner when you replace the Maintenance Cartridge . New Shaft Cleaner is included
with replacement Maintenance Cartridge .
After you execute Repl. maint cart and replace the Maintenance Cartridge , a message will appear on the
Display Screen requesting you to replace the Shaft Cleaner . Select Y es and press the OK button. Next,
go to step 4.

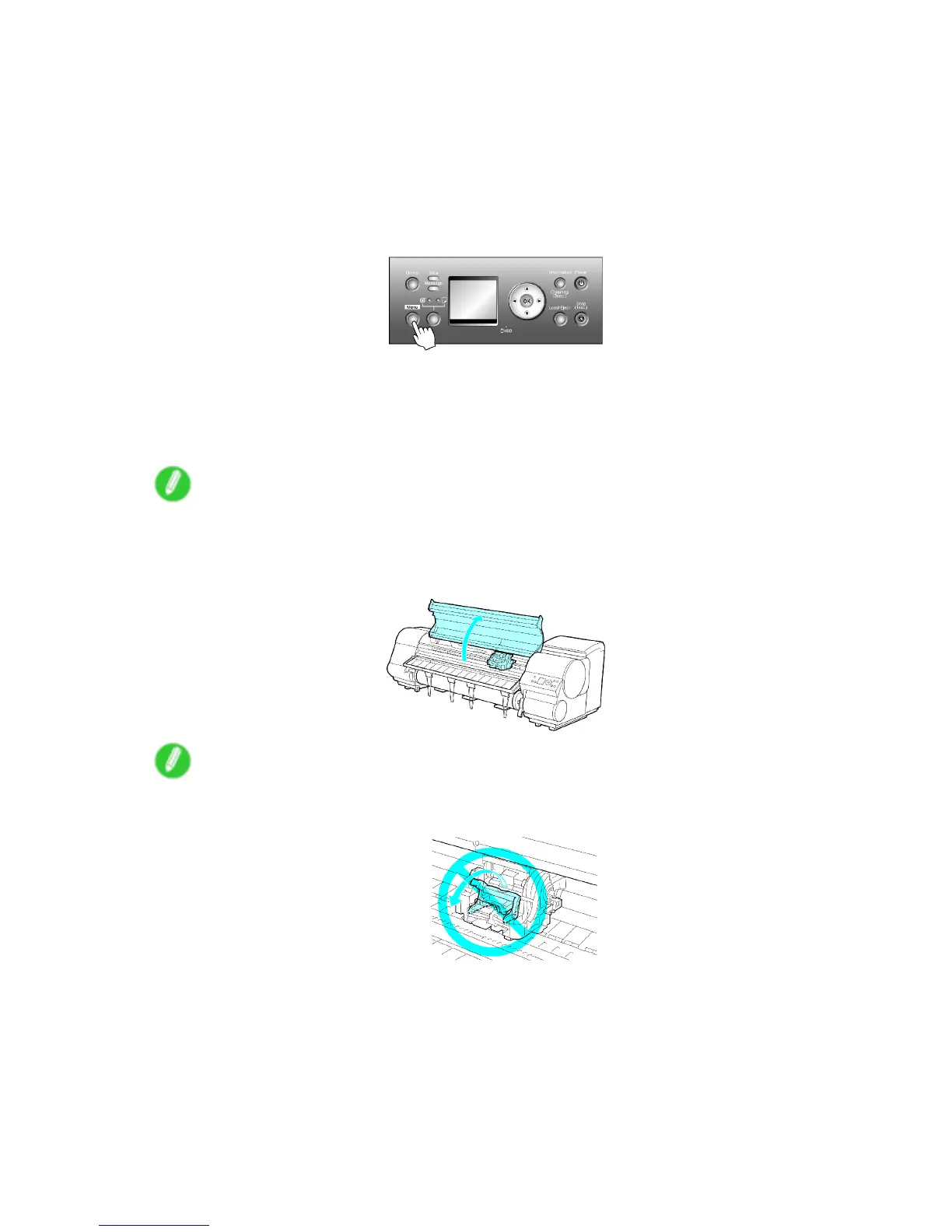

1. Press the Menu button to display MAIN MENU .
2. Press ▲ or ▼ to select Maintenance , and then press the ► button.
3. Press ▲ or ▼ to select Repl. S. Cleaner , and then press the ► button.
4. Press ▲ or ▼ to select Y es , and then press the OK button.
After the Carriage is moved, the Display Screen indicates Open Upper Cover .
Note
• If you do not respond within two minutes, shaft cleaner replacement is canceled and the printer goes
online automatically . In this case, repeat the procedure.
5. Open the T op Cover .
Note
• Do not open the Printhead Fixer Lever toward the front.
Accidentally opening the Printhead Fixer Lever toward the front will draw out ink, which consumes ink.
600 Maintenance

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
