Canon imagePROGRAF iPF810 User Manual

Adjusting the feed amount
Adjusting Line Length (Adjust Length)
Use Adjust Length to ensure that lines in CAD drawings are printed at exactly the right length.
In the Adjust Length menu, choose the mode of length adjustment ( A:High or B:Standard/Draft ) that
suits your particular printing application.
• A:High : This setting is applied when Highest or High is selected in Print Quality in the printer driver .
• B:Standard/Draft : This setting is applied when Standard or Draft is selected in Print Quality in
the printer driver .
Check the Feed Priority setting before using Adjust Length . ( → P .563)
Note
• Use paper of the same type and size for adjustment as you will use for printing.
• If you have selected Easy Settings on the printer , follow these steps to conrm the Print Quality setting.
• Windows: Click V iew Settings on the Main tab to display the V iew Settings dialog box.
• Mac OS X: Click V iew set. on the Main pane to display the V iew settings dialog box.
Paper to Prepare
Rolls An unused roll at least 10 inches wide
Sheets One sheet of unused paper of at least A4/Letter size
Follow these steps to change the Adjust Length setting.
1. Load paper .
• Attaching the Roll Holder to Rolls (→P .136)
• Loading Rolls in the Printer (→P .139)
• Loading Sheets in the Printer (→P .164)
Note
• Always make sure the loaded paper matches the type of paper specied in the settings. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.

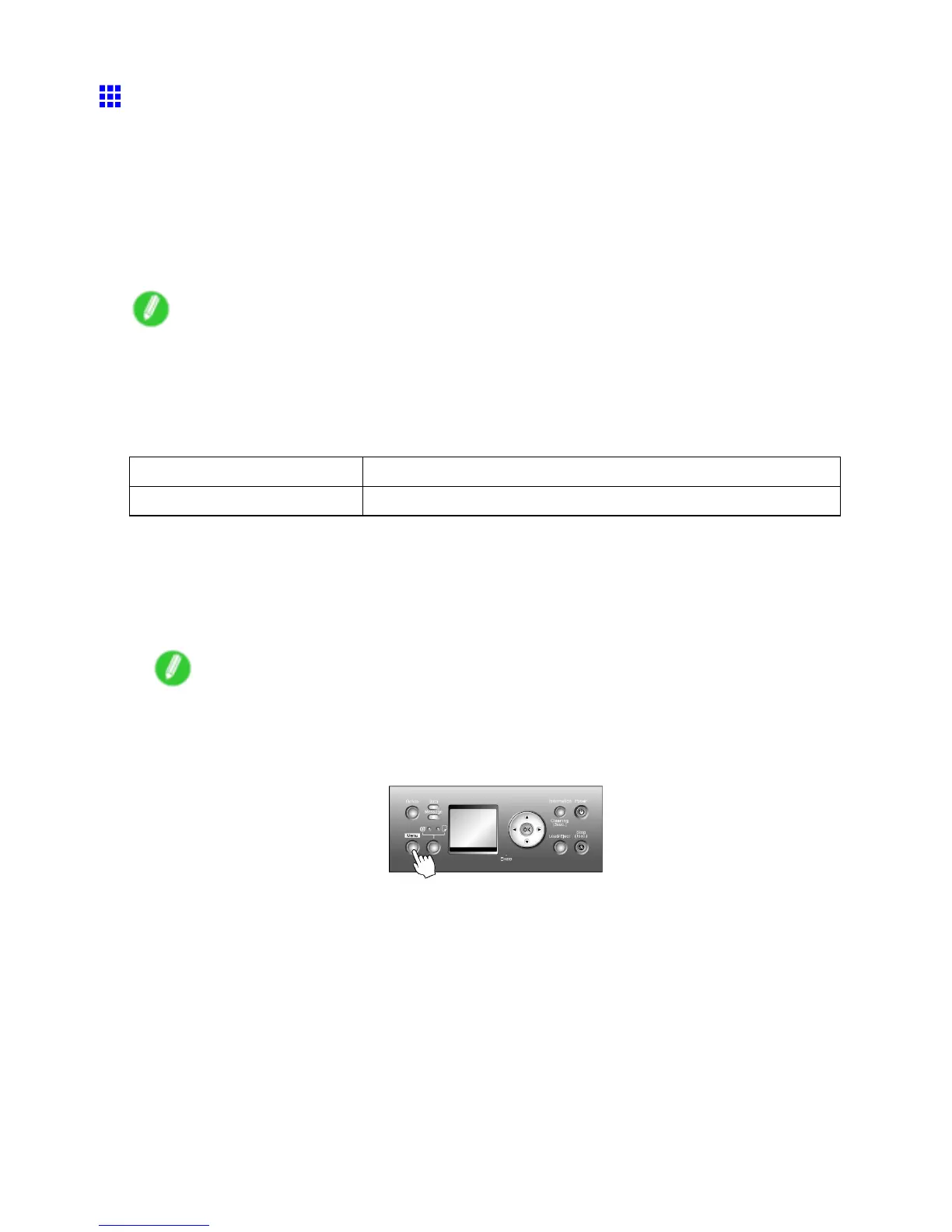

2. Press the Menu button to display MAIN MENU .
3. Press ▲ or ▼ to select Adjust Printer , and then press the ► button.
4. Press ▲ or ▼ to select Adjust Length , and then press the ► button.
5. Press ▲ or ▼ to select A:High or B:Standard/Draft , and then press the ► button.
Adjustments for Better Print Quality 569

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
