Canon imagePROGRAF iPF810 User Manual

Control Panel

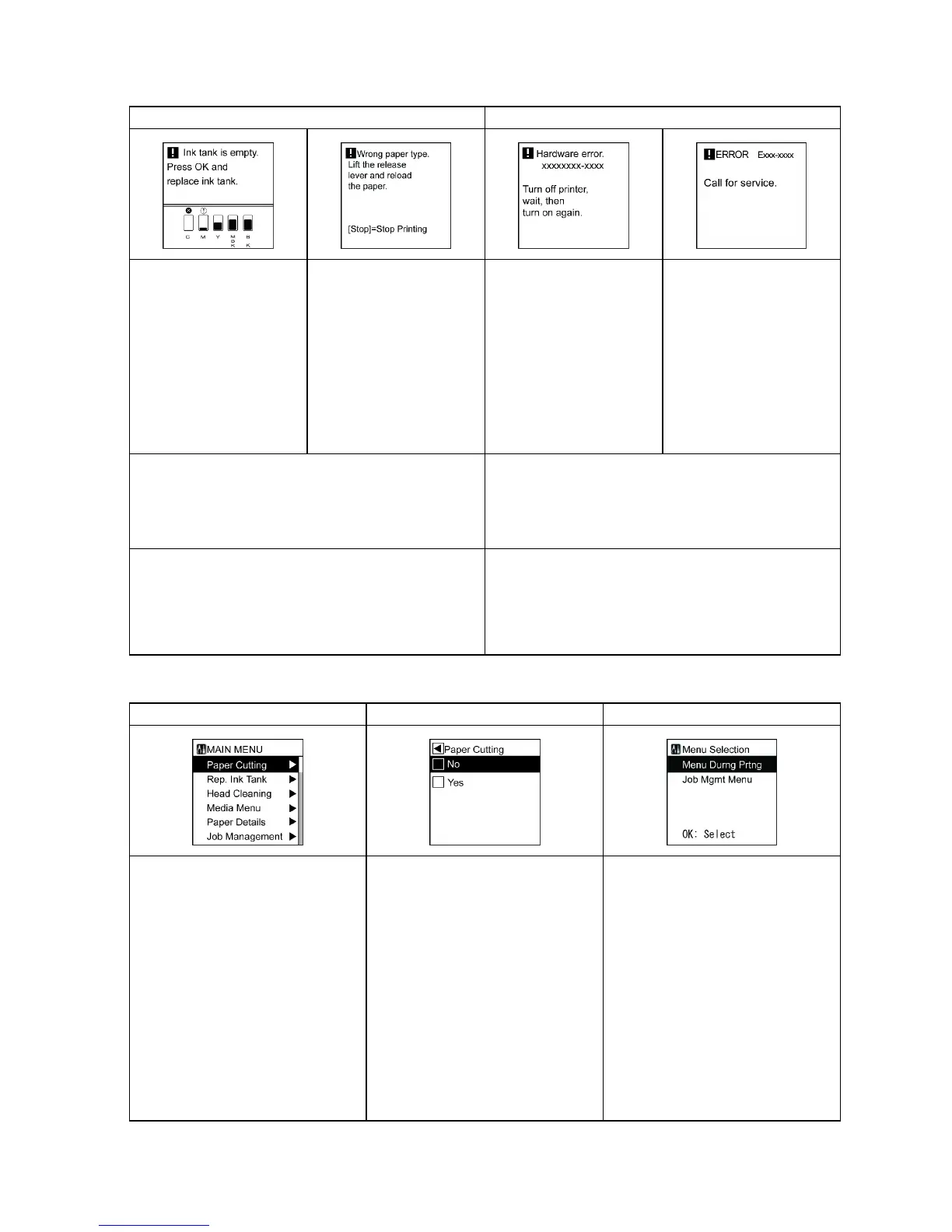

Error Messages
If action can be taken If no action can be taken
• T op Line of the Display
Screen
Error messages are
displayed.
• Bottom Line of the
Display Screen
Here, the remaining
ink level is indicated.
( → P .584)
• T op Line of the Display
Screen
Error messages are
displayed.
• Bottom Line of the
Display Screen
The corrective actions
are displayed here.
• T op Line of the Display
Screen
The error message
is displayed with the
following instructions:
T urn off printer , wait,
then turn on again. .
• Display Screen
“ERROR” is displayed,
followed by the error
code and Call for
service. .
• Data lamp
Flashes when print jobs are being received.
• Message lamp
Flashes when error messages are displayed.
• Data lamp
Flashes when print jobs are being received.
• Message lamp
Flashes when error messages are displayed.
T ake the appropriate action. ( → P .658) T urn of f the printer and wait at least three seconds
before restoring the power .
If the message is still displayed after this, write down
the error code and message, turn of f the printer , and
contact the Canon dealer for assistance.
Menu mode, and state of the Control Panel
Main menu
Menu items and settings
Main menu (during printing)
• Display Screen
Pressing the Menu button
when printing is not in progress
displays the main menu.
The title of the selected menu
is displayed on the rst line,
and menus immediately under
the current menu are displayed
on the second and subsequent
lines. Lower level menus are
available if “►” is displayed at
right. ( → P .40)
• Display Screen
The title of the selected menu
is displayed on the rst line,
and menu items or settings are
displayed on the second and
subsequent lines. ( → P .40)
The menu of options available
during printing (top gure) can
be displayed by pressing the ►
button when the main menu is
displayed (left gure).
• Display Screen
Menus available during printing
are displayed if you press the
Menu button during printing.
If you select a menu, the title of
the selected menu is displayed
on the rst line, and menus
immediately under the current
menu are displayed on the
second and subsequent lines.
Lower level menus are available
if “►” is displayed at right.
( → P .40)
34 Printer Parts

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
