Canon imagePROGRAF iPF810 User Manual

Control Panel
Specifying menu items
Follow these steps to specify menu items.
1. Press ▲ or ▼ to select a menu, and then press the ► button.
Repeat these steps until the desired menu options are displayed.

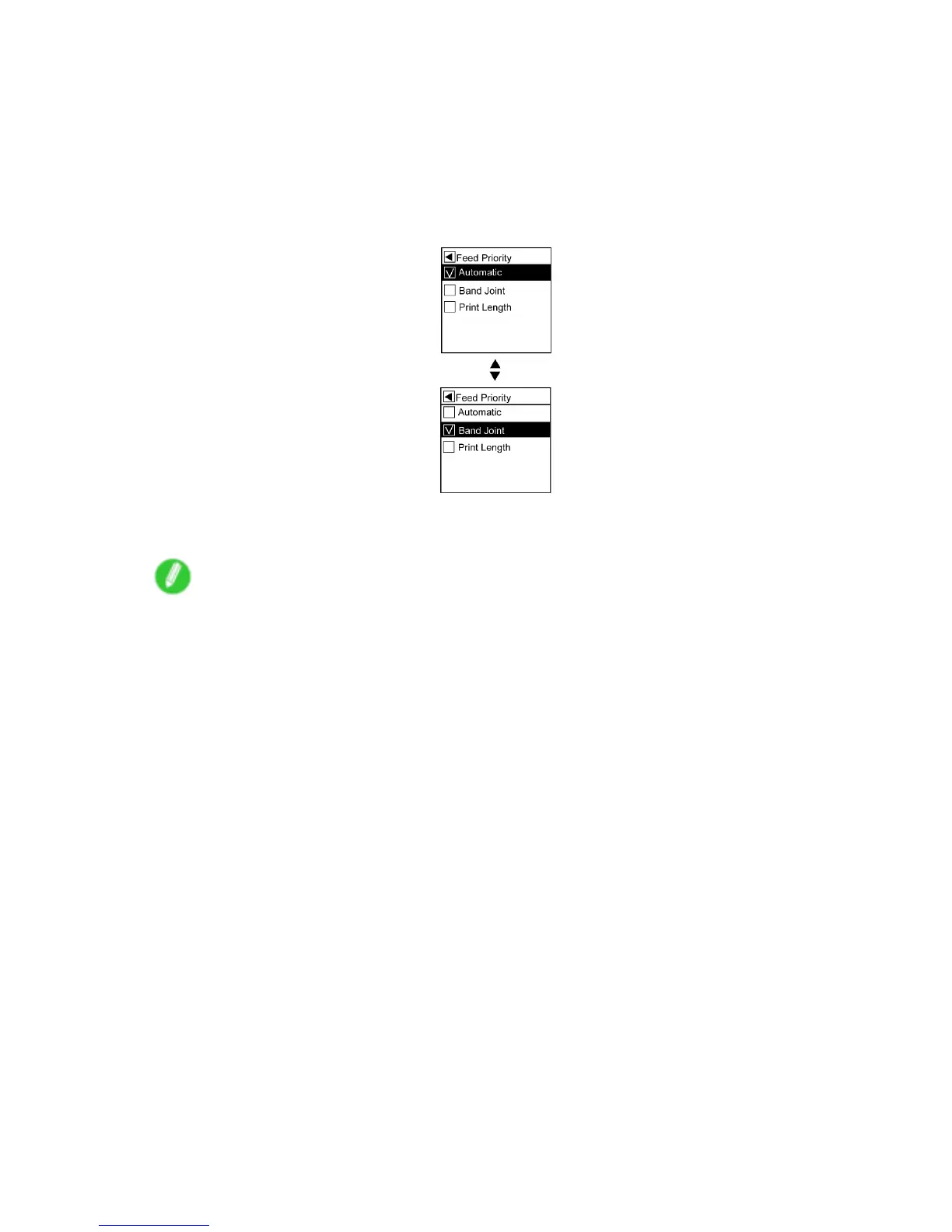

2. Press ▲ or ▼ to select a setting item to complete, and then press the OK button.
The check box at left is selected, and the setting is conrmed.
After two seconds, the display reverts to the upper level menu.
3. Press the Online button to bring the printer online.
Note
• If a conrmation message is displayed regarding the setting you entered, press the OK button. The
setting is applied, and the printer goes online.
42 Printer Parts

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
