Control Panel
Main Menu Operations
Press the Menu button to display the main menu. For details, see “Main Menu Settings”. (→P .57)

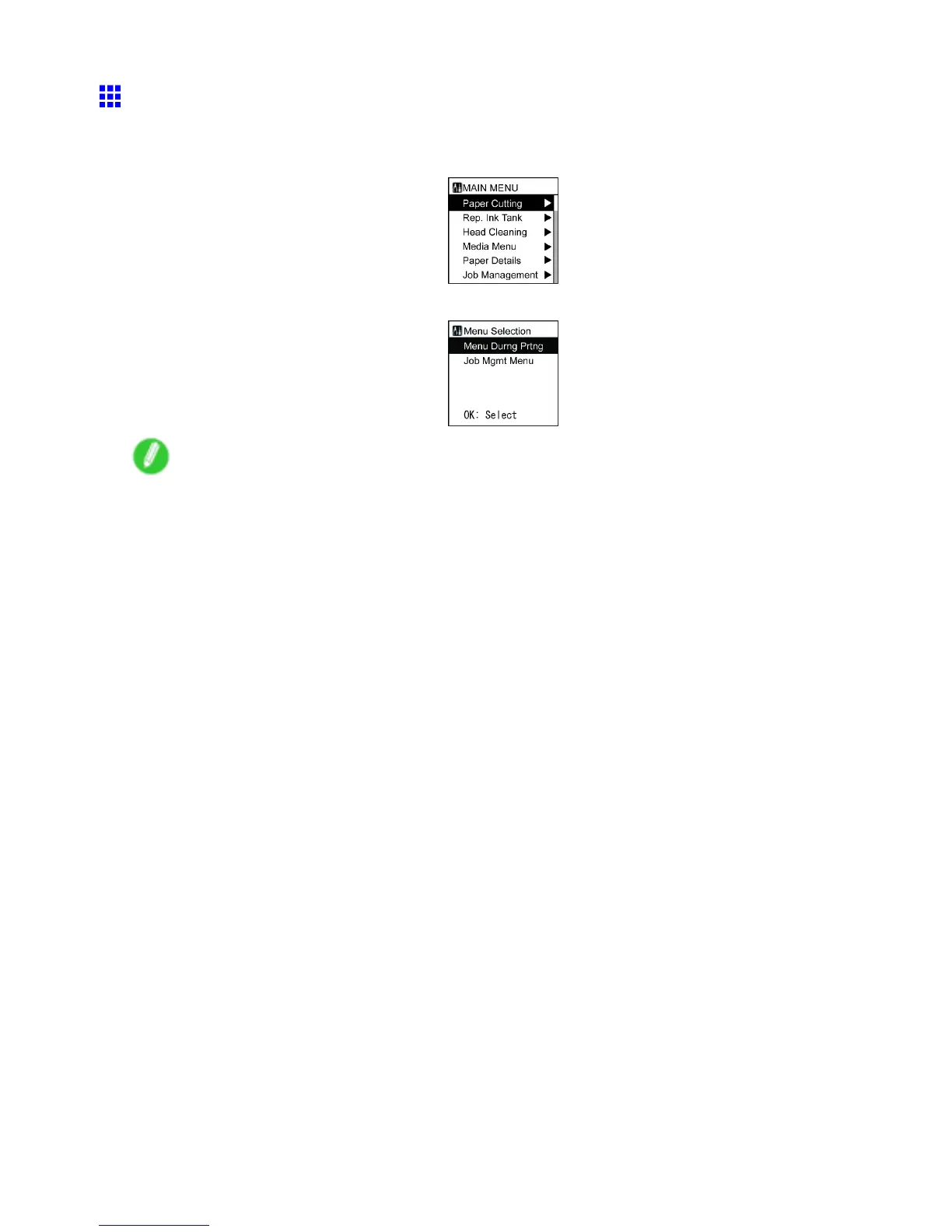

Main menu (displayed if you press the Menu button when printing is not in progress)
Menu selection (if you press the Menu button when printing is in progress)
Note
The main menu will not be displayed in the following case even if you press the Menu button.
When an error message is displayed
Y ou can switch to Menu mode after the problem is solved.
Simply press buttons on the Control Panel to access various function menus from the main menu and set
or execute menu items.
The following section describes menu operations and how they are presented in this User Manual .
Accessing menus (→P .41)
Specifying menu items (→P .42)
Specifying numerical values (→P .43)
Executing menu commands (→P .43)
