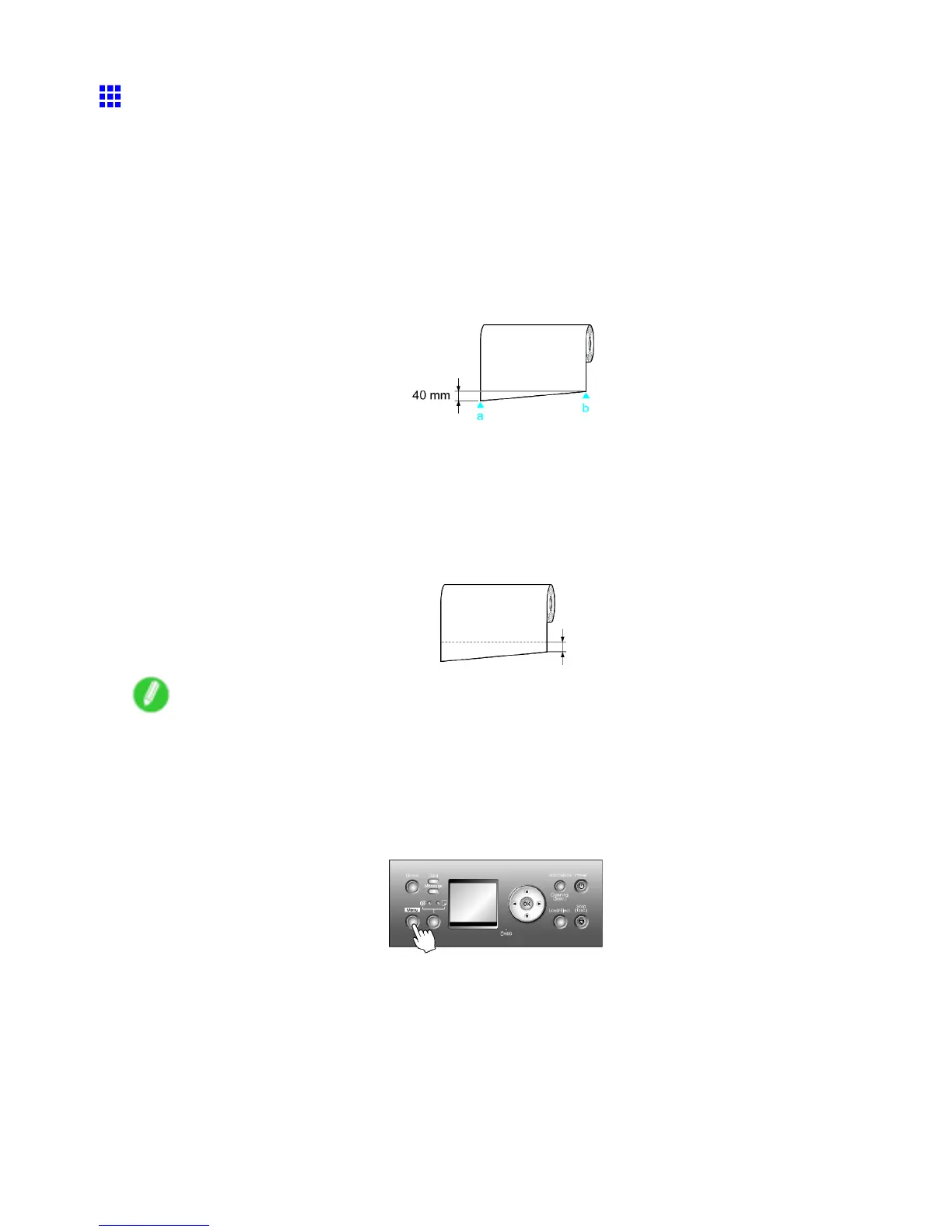

Handling rolls
Cutting the Leading Edge of Roll Paper Automatically
If the leading edge of a roll is crooked or warped, it may cause an error message or printing problems. In this
case, set T rim Edge First to Automatic or On on the Control Panel to have the printer cut the leading edge to
make the edge straight after you load a roll.
T rim Edge First of fers the following options.
Automatic
If the left and right side of the leading edge of the roll ((a) and (b)) are uneven by 40 mm (1.6 in) or
more when you load the roll, the edge is cut an amount relative to the slant to ensure a straight edge,
and scraps are removed. The edge is not cut if the unevenness is less than 40 mm. However , paper
may sometimes be cut, depending on the state of the leading edge.
Off
The edge is not cut and scraps are not removed. This setting is Off for most types of paper , by default.
For more information, see the Paper Reference Guide . ( P .125)
On
The leading edge is cut of f when you load a roll, and scraps are removed. The amount of paper cut
of f from the leading edge varies depending on the paper type. For more information, see the Paper
Reference Guide . ( P .125)
Note
If you print on paper that has an irregular width, set Skew Check Lv . to Loose for a higher skew
detection threshold or to Off to disable skew detection. However , if paper is loaded askew when
detection is Off , note that paper jams or Platen soiling may occur .
Follow these steps to change the T rim Edge First setting.
1. Press the Menu button to display MAIN MENU .
2. Press or to select Paper Details , and then press the button.
3. Press or to select the type of paper , and then press the button.
4. Press or to select T rim Edge First , and then press the button.
5. Press or to select the desired setting option, and then press the OK button.
This setting takes ef fect the next time you load a roll.
Handling Paper 159
