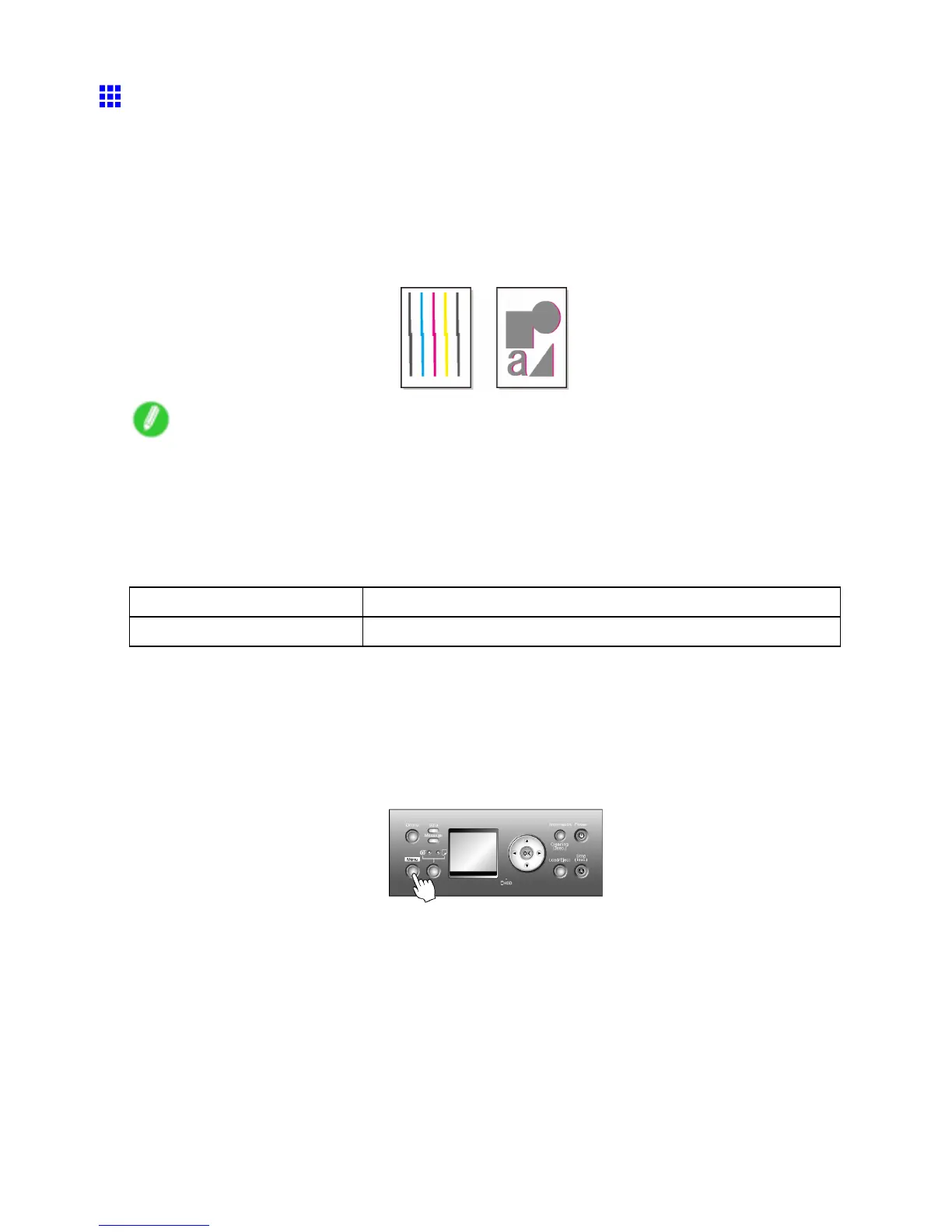

Page #570 background imageLoading...
Page #570 background image
Adjusting the Printhead
Manual Straightening of Lines and Colors (Manual Head
Adj)
If printed vertical lines are warped or colors are out of alignment, adjust the Printhead alignment.
With Manual Head Adj , you can manually adjust the Printhead alignment by printing and reading a test pattern.
Y ou can adjust the Printhead alignment automatically or manually . Normally , choose automatic adjustment. If
advanced adjustment does not improve printing results, or if you are using special paper , try manual adjustment.
For instructions on straightening lines and colors automatically , see “Automatic Straightening of Lines and Colors
(Auto Head Adj.)”. (→P .554)
Note
If Manual Head Adj is not available although displayed in the menu, choose Advanced Adj. in Auto
Head Adj. . Manual Head Adj is available in the menu after you try Advanced Adj. once.
Always make sure the loaded paper matches the type of paper specied on the printer . Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
W e recommend using the type of paper you use most often for adjustment.
Paper to Prepare
Rolls An unused roll at least 10 inches wide
Sheets One sheet of unused paper of at least A4/Letter size
Execute Manual Head Adj as follows.
1. Load paper .
Attaching the Roll Holder to Rolls (→P .136)
Loading Rolls in the Printer (→P .139)
Loading Sheets in the Printer (→P .164)
2. Press the Menu button to display MAIN MENU .
3. Press or to select Adjust Printer , and then press the button.
4. Press or to select Manual Head Adj , and then press the button.
5. Press or to select Y es , and then press the OK button.
A test pattern is printed for printhead adjustment.
6. Press or to select D , and then press the button.
7. Press or to select D-1 , and then press the button.
556 Adjustments for Better Print Quality

Table of Contents

Other manuals for Canon imagePROGRAF iPF810

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Canon imagePROGRAF iPF810 and is the answer not in the manual?

Canon imagePROGRAF iPF810 Specifications

Print Specifications IconPrint Specifications
print resolution2400 x 1200 dpi
line accuracy±0.1% or Less
minimum line weight0.02 mm
number of nozzles (Matte Black)5, 120 Nozzles
number of nozzles (Other Colors)2, 560 Nozzles per Color
droplet size4 Picoliter
nozzle pitch (head resolution)1200 dpi x Two Rows
print-head swath1.07 inch
Ink and Media IconInk and Media
ink type (Dye)Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)Matte Black (MBK)
ink tank shipped with printerPFI-303 (330ml) MBK, C, M, Y, K
ink tank replacementPFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)10" – 44" (254mm – 1118mm)
media width (Cut Sheet)8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)59' (18m)
maximum print length (Cut Sheet)63" (1.6m)
media thickness0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter5.9" (150mm)
Power and Noise IconPower and Noise
power supplyAC 100–240V (50-60Hz)
power consumption (Maximum)190W or Less
power consumption (Standby)6W or Less
acoustic noise (Operation)52dB (A) or Less
acoustic noise (Standby)35dB (A) or Less
acoustic power6.8 Bels or Less
Operating Environment IconOperating Environment
temperature59 – 86 F° (15 – 30 C°)
relative humidity10 – 80% (No Condensation)
Weight and Dimensions IconWeight and Dimensions
printer dimensions (iPF810/iPF810 PRO)45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)Approx. 768 lb. (348kg)
