Canon imagePROGRAF iPF810 User Manual

Printheads

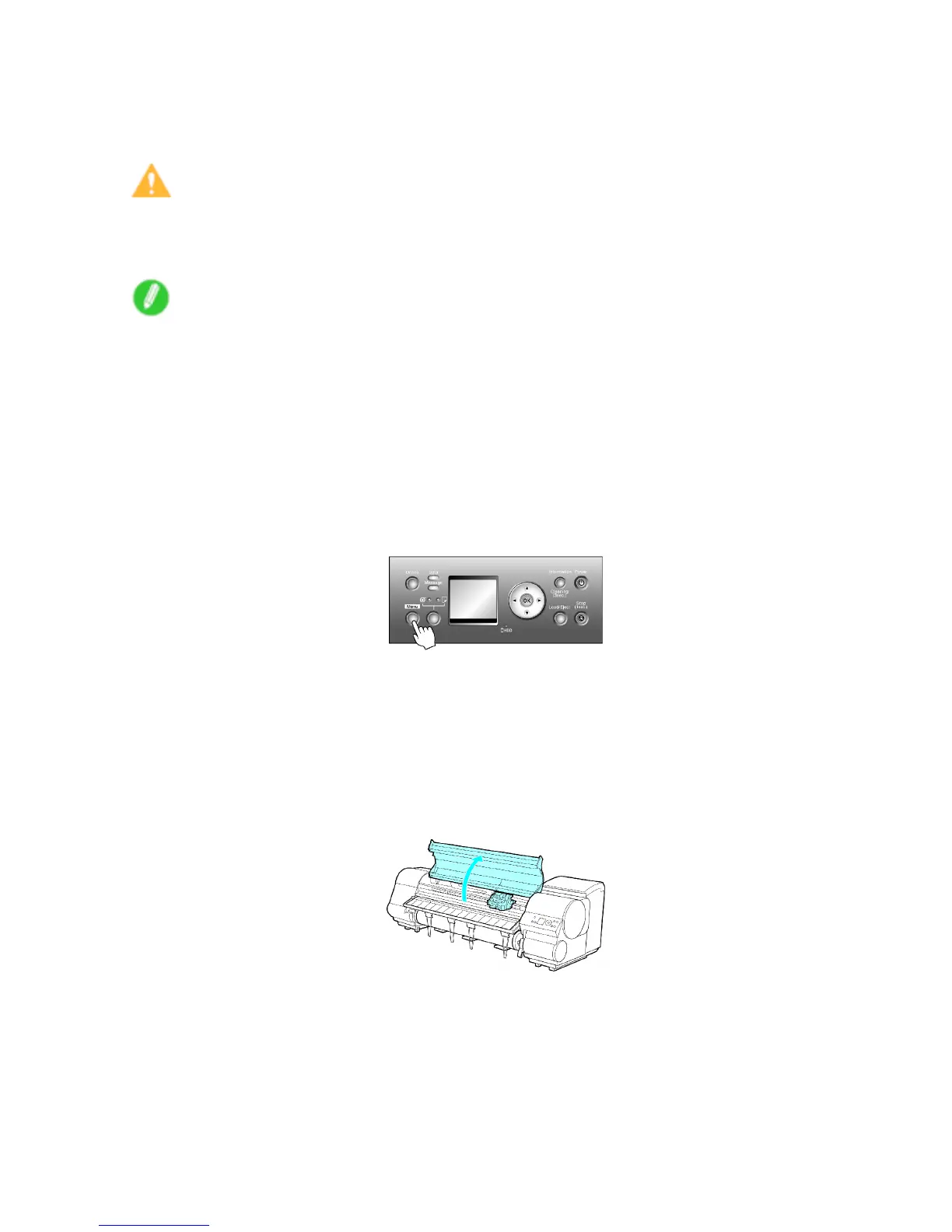

Replacing the Printhead
Follow these steps to replace the Printhead . Failure to follow this procedure may cause ink to leak from the
Printhead , resulting in stains.
Caution
• When replacing the Printhead immediately after printing, wait a few minutes before replacing it. The
metal parts of the Printhead become hot during printing, and there is a risk of burns from touching
these parts.
Note
• Prepare a new Ink T ank when ink levels are low .
• Y our hands may become dirty during Printhead replacement. Use the gloves provided with the new
Printhead for replacement.
• Choose On in Auto Print to have the printer automatically adjust the Printhead alignment after
replacement of the Printhead . ( → P .57)
1. If the roll is not ejected because of the cutting method selected, cut it manually and remove it.
( → P .376)
2. Clean inside the T op Cover . ( → P .606)
3. Press the Menu button to display MAIN MENU .
4. Press ▲ or ▼ to select Maintenance , and then press the ► button.
5. Press ▲ or ▼ to select Replace P .head , and then press the ► button.
6. Press ▲ or ▼ to select Y es , and then press the OK button.
Ink is now lled.
After about two minutes, a message is shown on the Display Screen instructing you to open
the T op Cover .
7. Open the T op Cover .
Instructions are now shown on the Display Screen regarding Printhead replacement.
590 Maintenance

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
