Other Maintenance

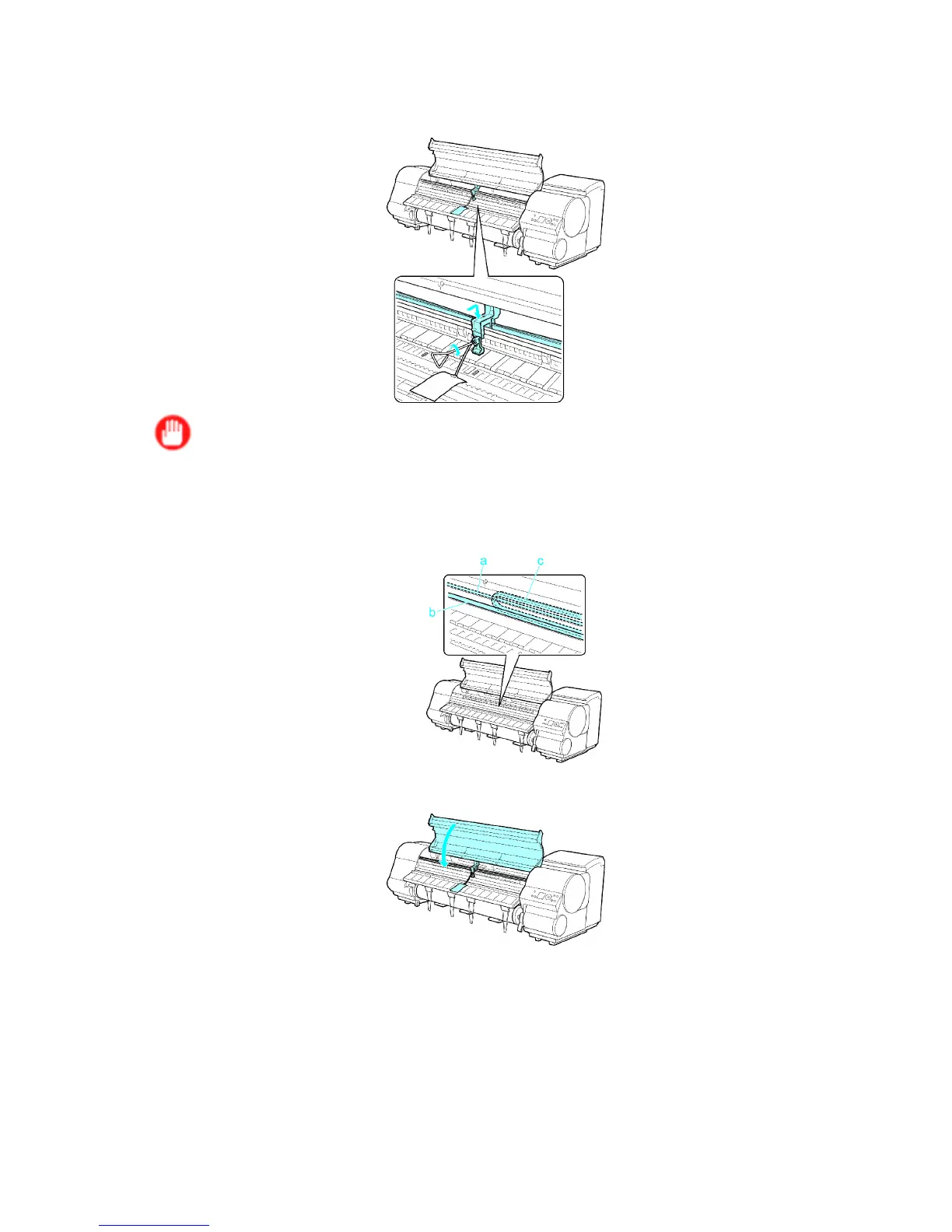

17. Grasp the Belt , insert it between the Belt Stopper , and af x the Belt Stopper with a hex screw at
the position indicated.
Important
• Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to
attach the Belt Stopper may damage the printer .
• Do not touch the Linear Scale (a), Carriage Shaft (b), or Ink T ube Stabilizer (c). T ouching these
parts may damage them.
18. Close the T op Cover .
19. T ape down printer covers to secure them, in the reverse order of tape removal during installation.
20. If the Stationary Output Stacker is installed, reverse the installation procedure to remove the
Stationary Output Stacker .
21. Remove the Stand by reversing the installation procedure, when it was attached to the printer .
22. Disassemble and repackage the Stand by following the installation procedure in reverse.
23. Repack the Roll Holder , Holder Stopper , and printer in shipping materials, and then package
them in a shipping box.
614 Maintenance

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
