Problems Regarding Paper

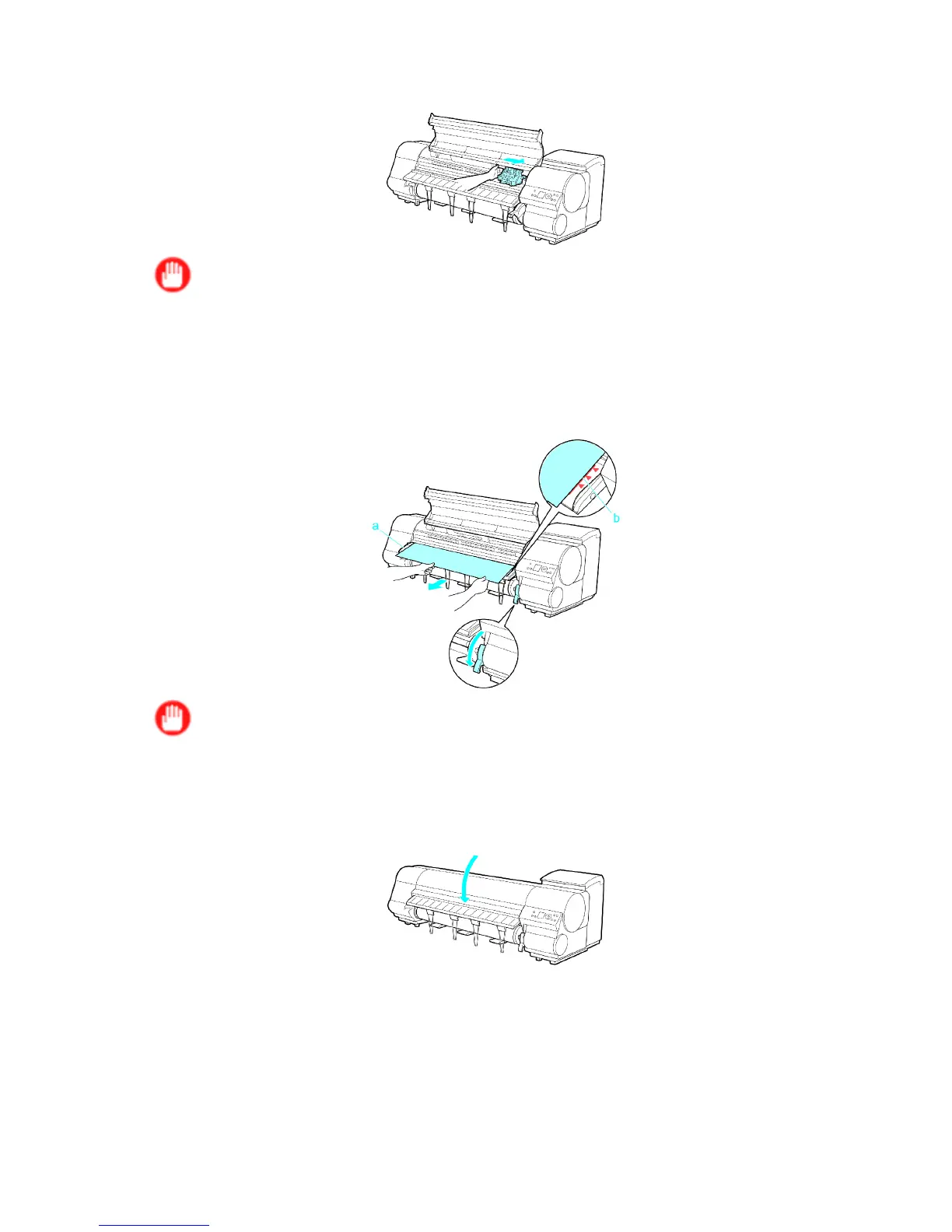

7. If the Carriage is on the left, move the Carriage to the right until it stops.
Important
• Always move the Carriage to the right side. If the Carriage is on the left, a Carriage error may
occur when you turn on the printer .
8. Hold the edge of the roll paper in the middle as you gently pull it evenly to the position of the
Ejection Guide (a). Align the right side of the roll paper with the Paper Alignment Line (b),
keeping this side parallel to the line, and then lower the Release Lever .
Important
• Do not force the roll paper into alignment with the Paper Alignment Line (b). This may prevent the
paper from being advanced straight.
• If you pull out too much of the roll, an excessive amount will be cut away .
9. Close the T op Cover .
T roubleshooting 621

Canon imagePROGRAF iPF810 Specifications

Print Specifications

print resolution	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02 mm
number of nozzles (Matte Black)	5, 120 Nozzles
number of nozzles (Other Colors)	2, 560 Nozzles per Color
droplet size	4 Picoliter
nozzle pitch (head resolution)	1200 dpi x Two Rows
print-head swath	1.07 inch

Ink and Media

ink type (Dye)	Cyan (C), Magenta (M), Yellow (Y), Black (K)
ink type (Pigment)	Matte Black (MBK)
ink tank shipped with printer	PFI-303 (330ml) MBK, C, M, Y, K
ink tank replacement	PFI-703 (700ml) MBK, C, M, Y, K
media width (Roll Feed)	10" – 44" (254mm – 1118mm)
media width (Cut Sheet)	8" – 44" (203.2mm – 1118mm)
maximum print length (Roll Feed)	59' (18m)
maximum print length (Cut Sheet)	63" (1.6m)
media thickness	0.07 – 0.8mm (2.8 – 31.4mil)
maximum roll outer diameter	5.9" (150mm)

Power and Noise

power supply	AC 100–240V (50-60Hz)
power consumption (Maximum)	190W or Less
power consumption (Standby)	6W or Less
acoustic noise (Operation)	52dB (A) or Less
acoustic noise (Standby)	35dB (A) or Less
acoustic power	6.8 Bels or Less

Operating Environment

temperature	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)

Weight and Dimensions

printer dimensions (iPF810/iPF810 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF810/iPF810 PRO)	Approx. 335 lb. (152kg)
printer dimensions (iPF820/iPF820 PRO)	45.1" x 74.6" x 50.9" (1144mm x 1893mm x 1291mm)
weight with stand (iPF820/iPF820 PRO)	Approx. 417 lb. (189kg)
package dimensions (iPF810/iPF810 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2384mm x 1585mm)
package weight (iPF810/iPF810 PRO)	Approx. 664 lb. (301kg)
package dimensions (iPF820/iPF820 PRO)	49.8" x 92.5" x 62.4" (1263mm x 2348mm x 1585mm)
package weight (iPF820/iPF820 PRO)	Approx. 768 lb. (348kg)
