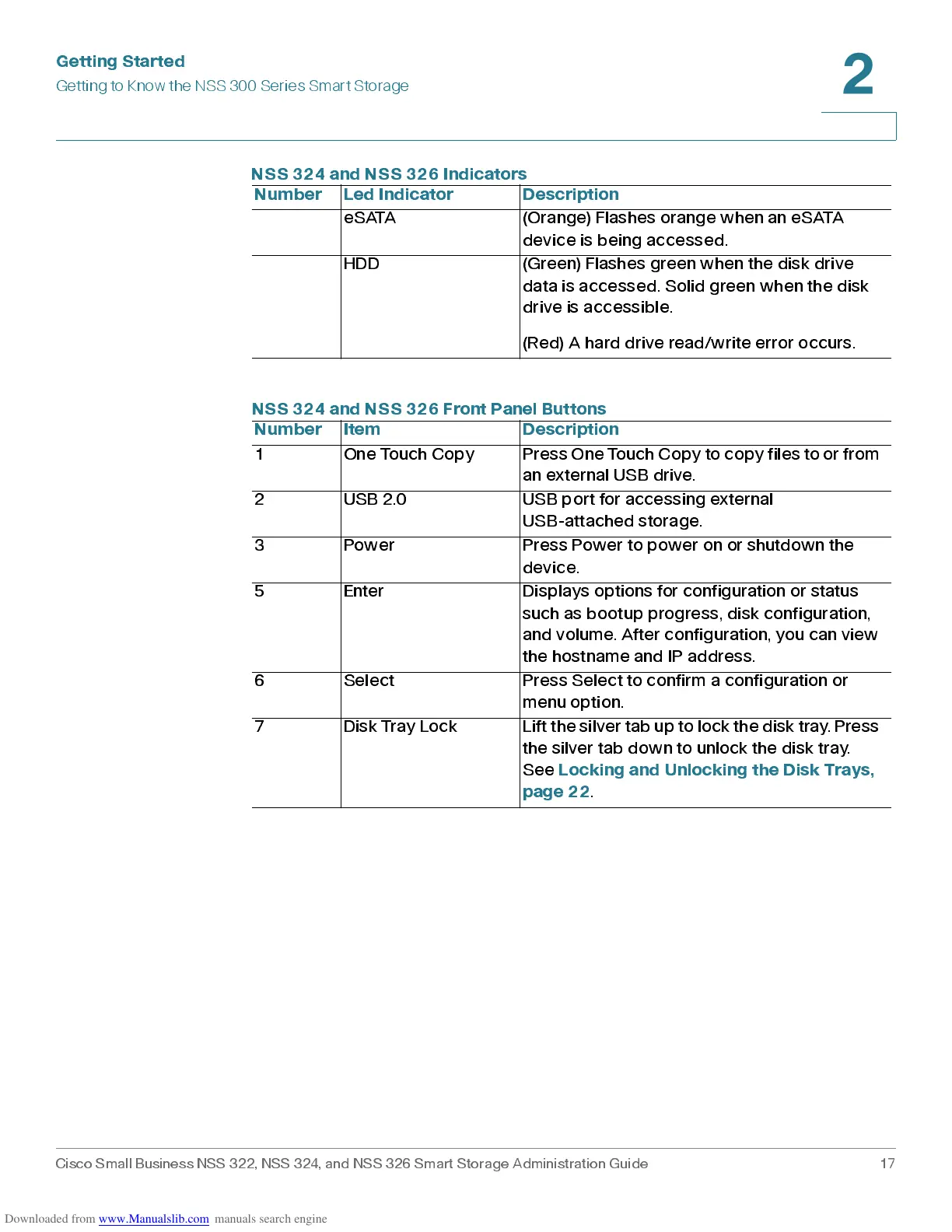

Get ting St ar t e d
Getting to Know the NSS 300 Series Smart Storage
Cisco Small Business NSS 322, NSS 324, and NSS 326 Smart Storage Administration Guide 17
2
eSATA (Orange) Flashes orange when an eSATA
device is being accessed.
HDD (Green) F lash es green when the disk dr ive
data is accessed. Solid green when the disk
drive is accessible.
(Red) A hard drive read/write error occurs.
NSS 324 and NSS 326 Front Panel Buttons
Number Item Description
1 One Touc h Copy Pr e ss On e Touc h Copy t o co py files to o r f r o m
an external US B dr ive.
2 USB 2.0 USB port for accessing external
USB-attached storage.
3 Power Pres s Power to power on or shutdown the
device.
5 Enter Displays options for configuration or status
such as bootup progress, disk configuration,
and volume. After configuration, you can view
the hostname and IP address.
6 Select Pres s Select to confirm a configuration or
menu option.
7 Disk Tray Lock Lift the silver tab up t o lock the disk tray. Press
the silver tab down to unlock the disk tray.
See
Lo cki ng and Unlo ck in g the Dis k Trays,
page 22
.
NSS 324 and NSS 326 Indicators
Number Led Indicator Description
