Get ting St ar t e d
Getting to Know the NSS 300 Series Smart Storage
Cisco Small Business NSS 322, NSS 324, and NSS 326 Smart Storage Administration Guide 16
2

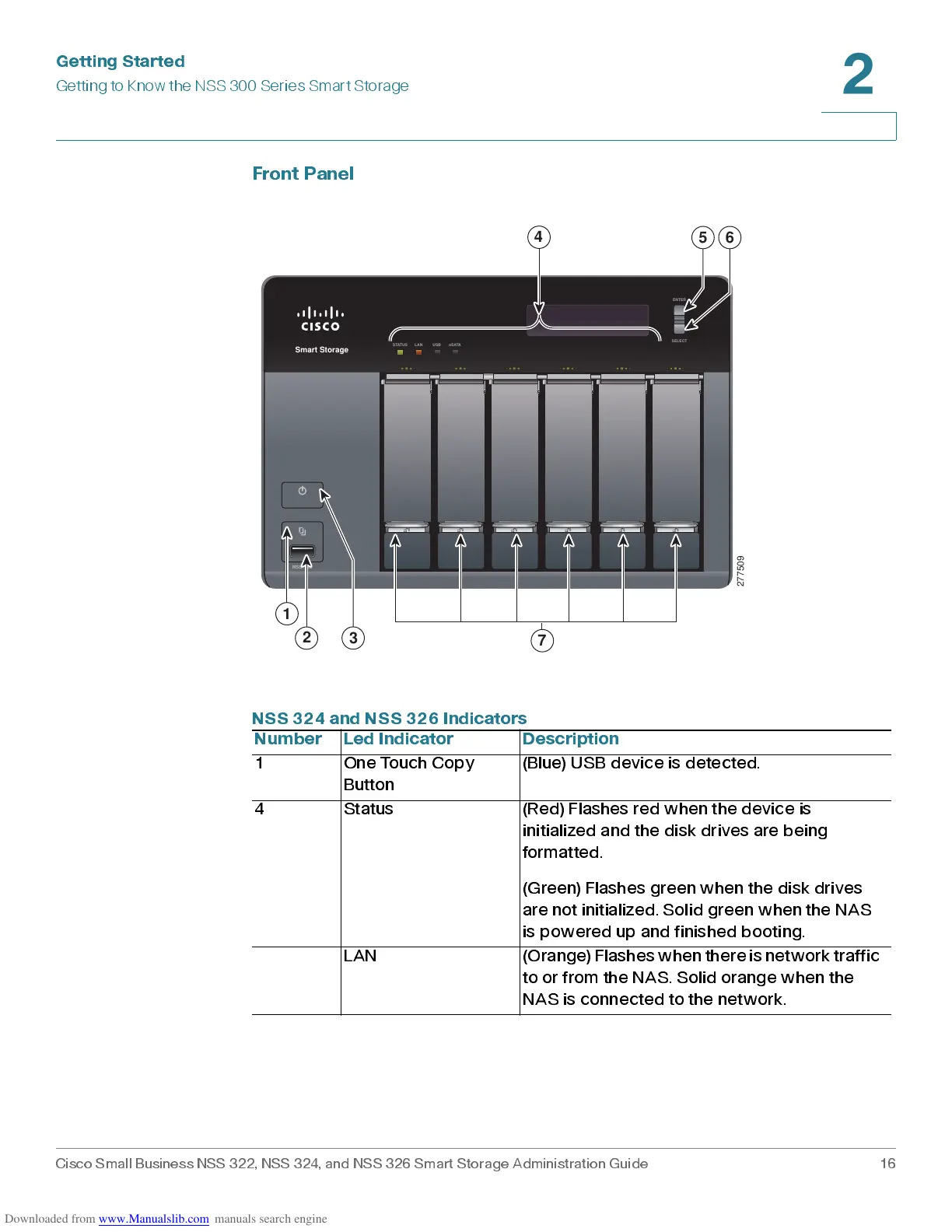

Fr ont Panel
NSS 324 and NSS 326 Indicators
Number Led Indicator Description
1 One Touch Copy
Button
(Blue) USB device is detected.
4 Status (Red) Flashes red when the device is
initialized and the disk dr ive s are being
formatted.
(Green) Flashes green when the disk dr ive s
are not initialized . Solid green when the NAS
is powered up and finished bo oting.
LAN (Or ang e) Fl ashe s whe n t he re i s ne two rk t raf fi c
to or from the NAS. Solid orange when the
NAS is connected to the network.
ENTER
SELECT
277509
STATUS LAN USB eSATA
NSS 326
Smart Storage
5 6
1
2
3
4
7
