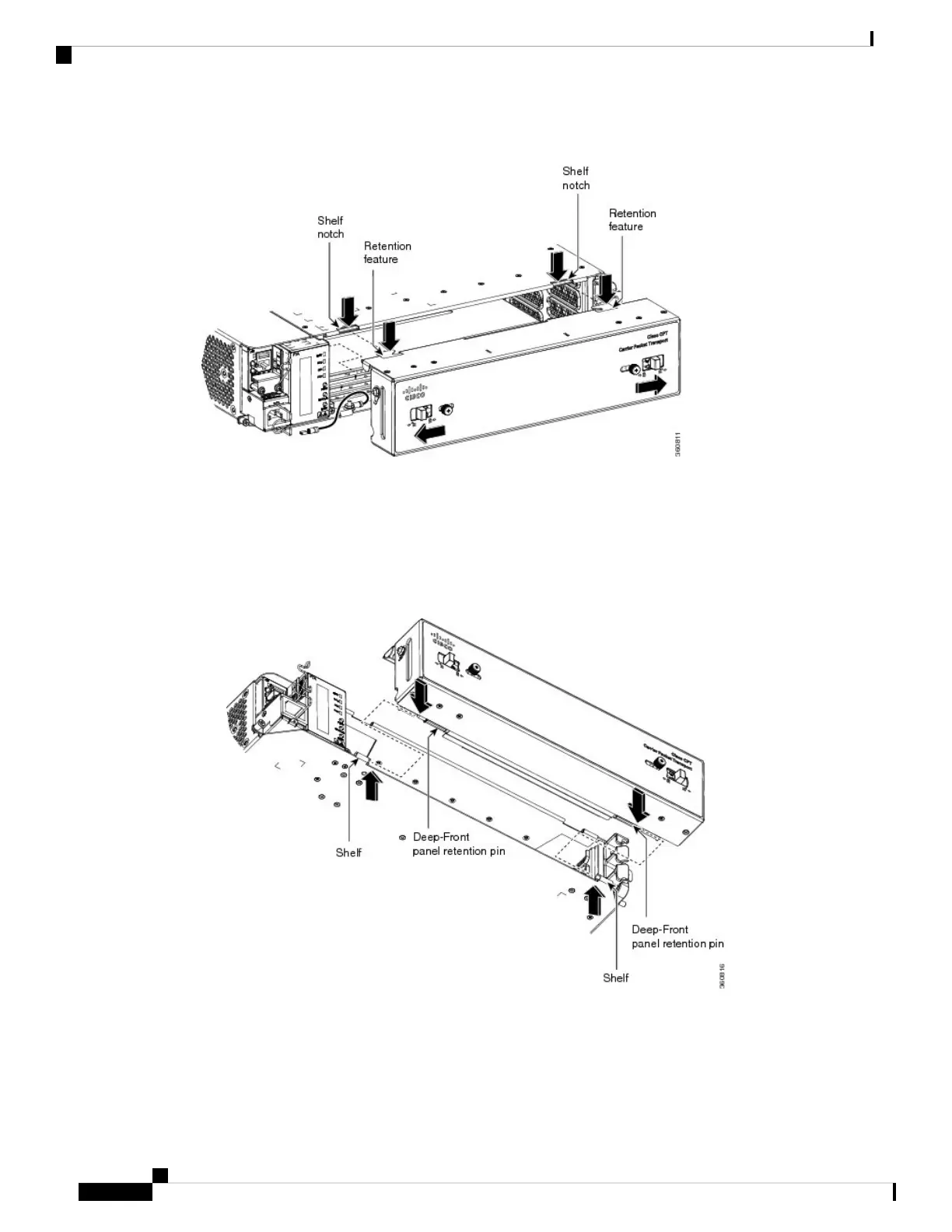

Figure 145: Moving Deep-Front Panel and Shelf in line
Step 4 Align the deep-front panel with the shelf by performing these sub-steps at the same time:
a) Align the right and left retention features of the deep-front panel with the right and left notches present
on the top of the shelf (see Figure 145: Moving Deep-Front Panel and Shelf in line, on page 224).
b) Align the deep-front panel pins present at the bottom of the panel with the shelf hinges (see the following
figure).
Figure 146: Aligning the Deep-Front Panel and Shelf
The following figure shows the deep-front panel aligned with the shelf.
Cisco ONS 15454 Hardware Installation Guide
224
Installing the ONS 15454 M2 Shelf
NTP-G343 Install the Deep-Front Panel of the ONS 15454 M2 Shelf
