Upgrading The Computer
6 - 8 Upgrading the Hard Disk Drive(s)
6
4. Remove screws - from the hard disk assembly.
5. Carefully pull up the tab to disconnect the hard disk cable
.
6. Carefully (the HDD case edges may be sharp) apply pressure using two fingers at
points
& .
7. Lift the assembly out of the bay and separate the hard disk board from the case
by pulling on the tab .
4
7
8
9
10
11
12
4 5
6
7
8
10
9
11
12

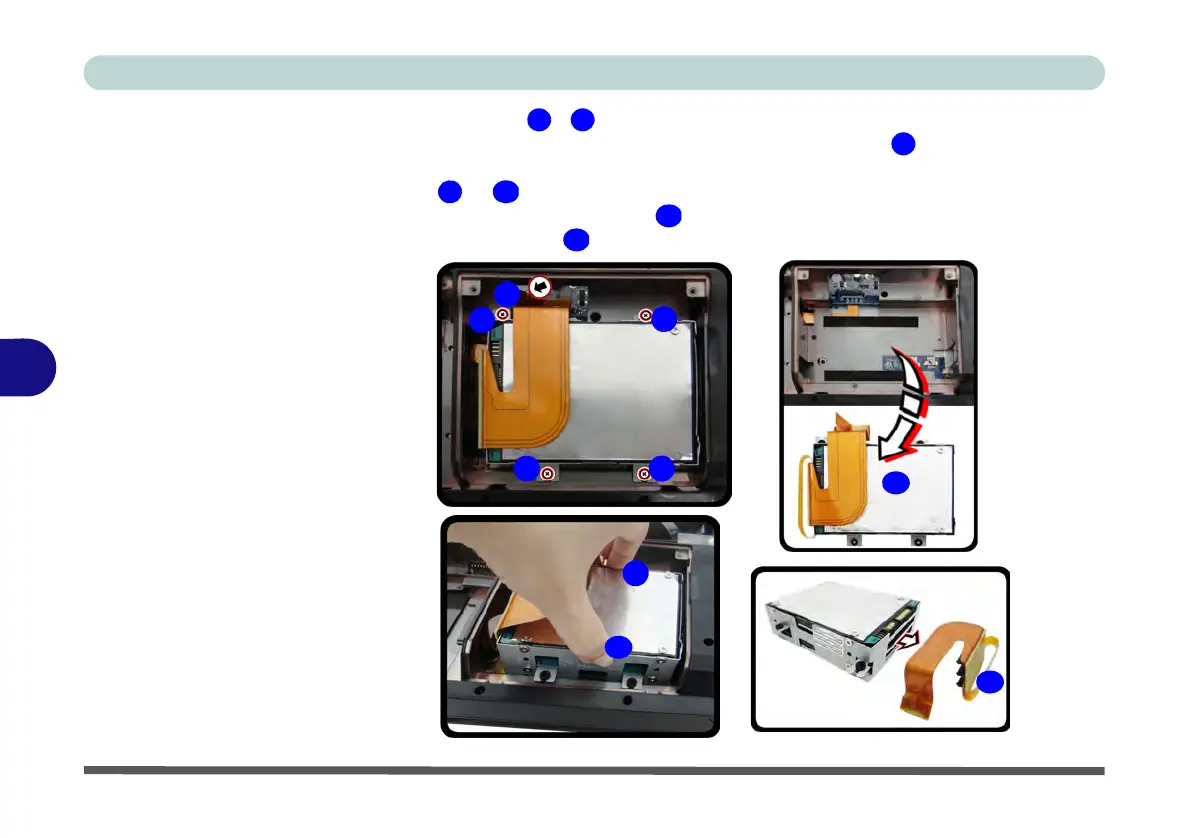

Figure 6 - 4
Bay Cover Removal
& Hard Disk
Assembly Screws
