Upgrading The Computer
Upgrading the Hard Disk Drive(s) 6 - 9
6
8. Remove screws - (depending on how many hard disks you have installed in
the assembly).
9. Separate the hard disk(s) & from the case and mylar insulation cover .
10. Reverse the process to install any new disk(s) and do not forget to install the
insulation plate (onto the upper hard disk), screws, cables and covers (pay careful
attention to the orientation of the hard disks in the case).

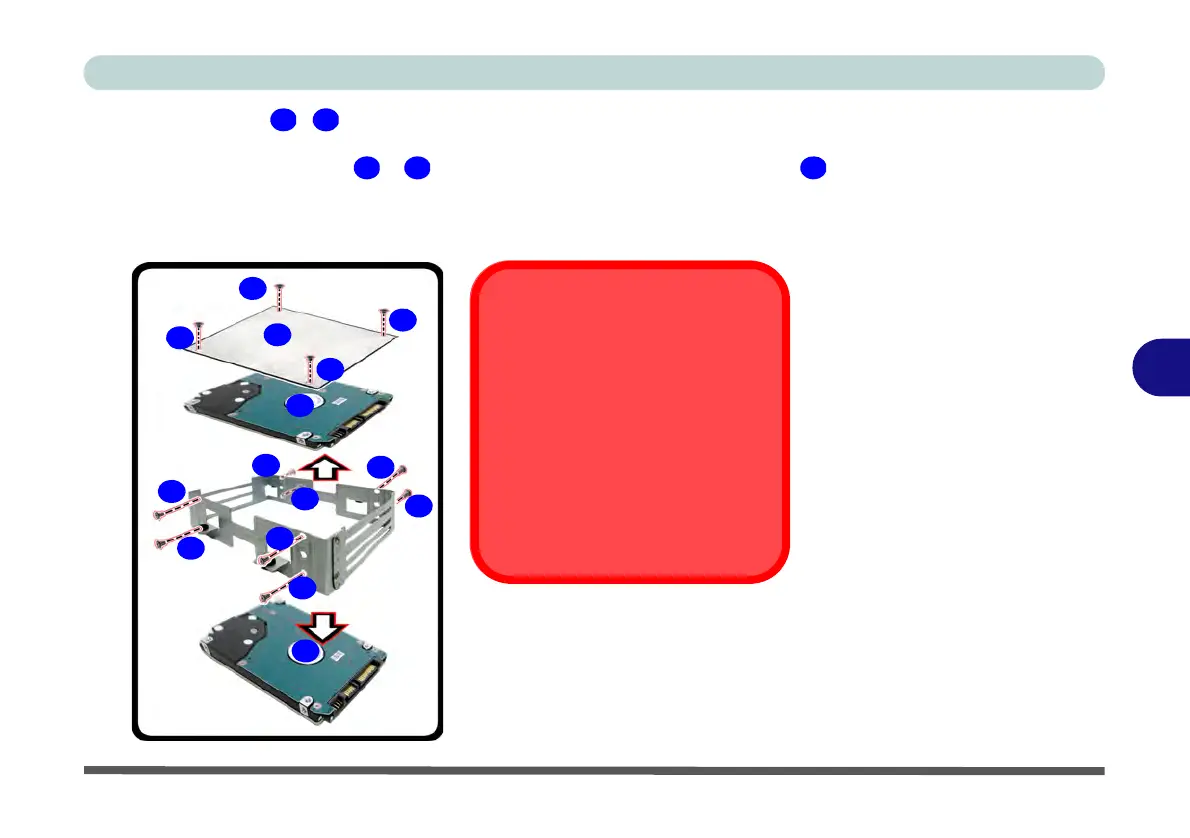

Figure 6 - 5
Primary Hard
Disk(s) Removal
13
18
17
16
15
14
19
20
21
22
23
24
25
26
27
HDD Case Slots
Note that the hard disk case has 3
available slots for hard disks, how-
ever only the top and bottom
slots of the case should be used.
The third hard disk is located in the
secondary hard disk bay located
under the battery compartment
(see over).
