19. Reconnect the LED Module cable (see Figure 6 - 10).
20. Snap the LED cover module down at the top of the module at points & .
21. Push the LED cover module down on the left side at point , and then slide the
module to the right (as illustrated) and snap down to secure it in place.
22. Replace the screws on the bottom of the computer (see Figure 6 - 8).
23. Restart the computer to allow the BIOS to register the new memory configuration
as it starts up.

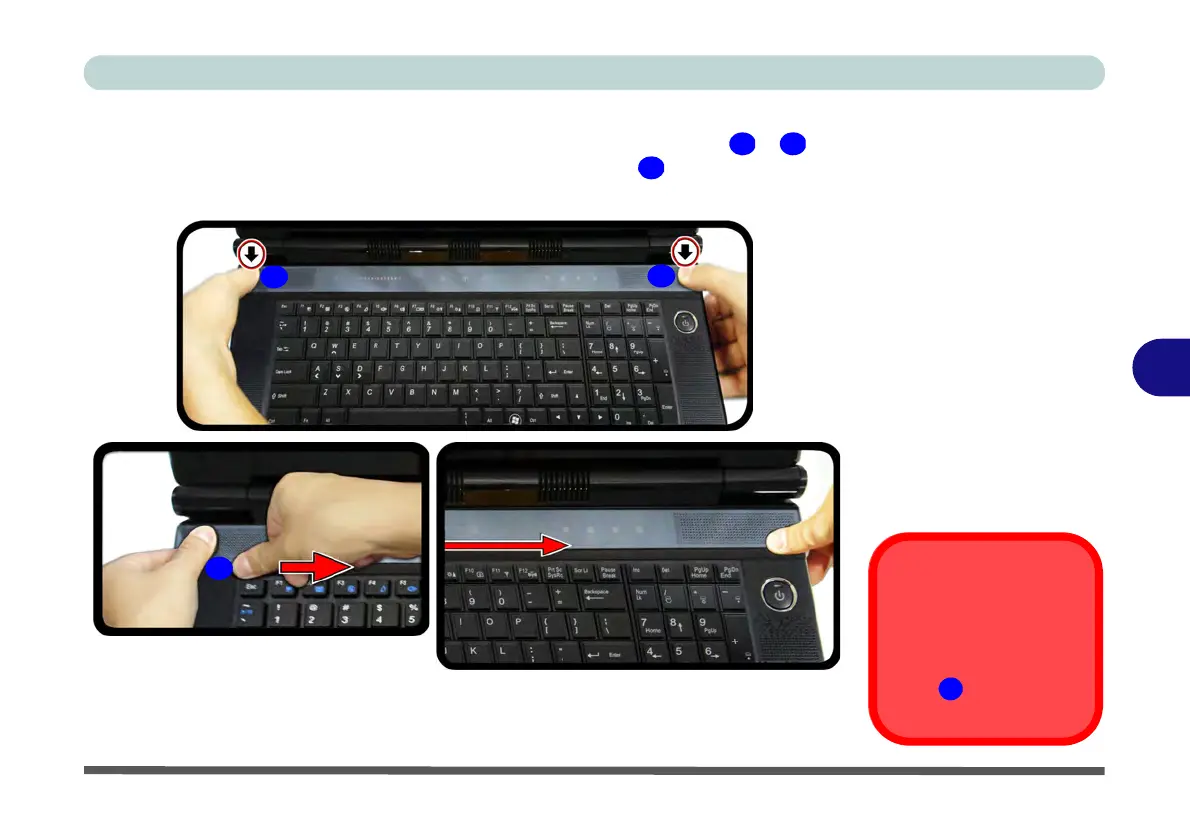

Figure 6 - 20
LED Cover Module
Slide to the Right &
Snap Down

LED Module Cable
Make sure you recon-
nect the LED Module
cable (see Figure 6
- 10).
