Removing the Secondary System Memory (1 memory socket)
1. Turn off the computer, and turn it over and remove the battery.
2. Remove screws -
and component bay cover .
3. Carefully disconnect CPU fan cables & , and remove screws & , and
loosen screws - , in the reverse order to that indicated on the label (i.e.
remove screw
first, and lastly remove screw ).

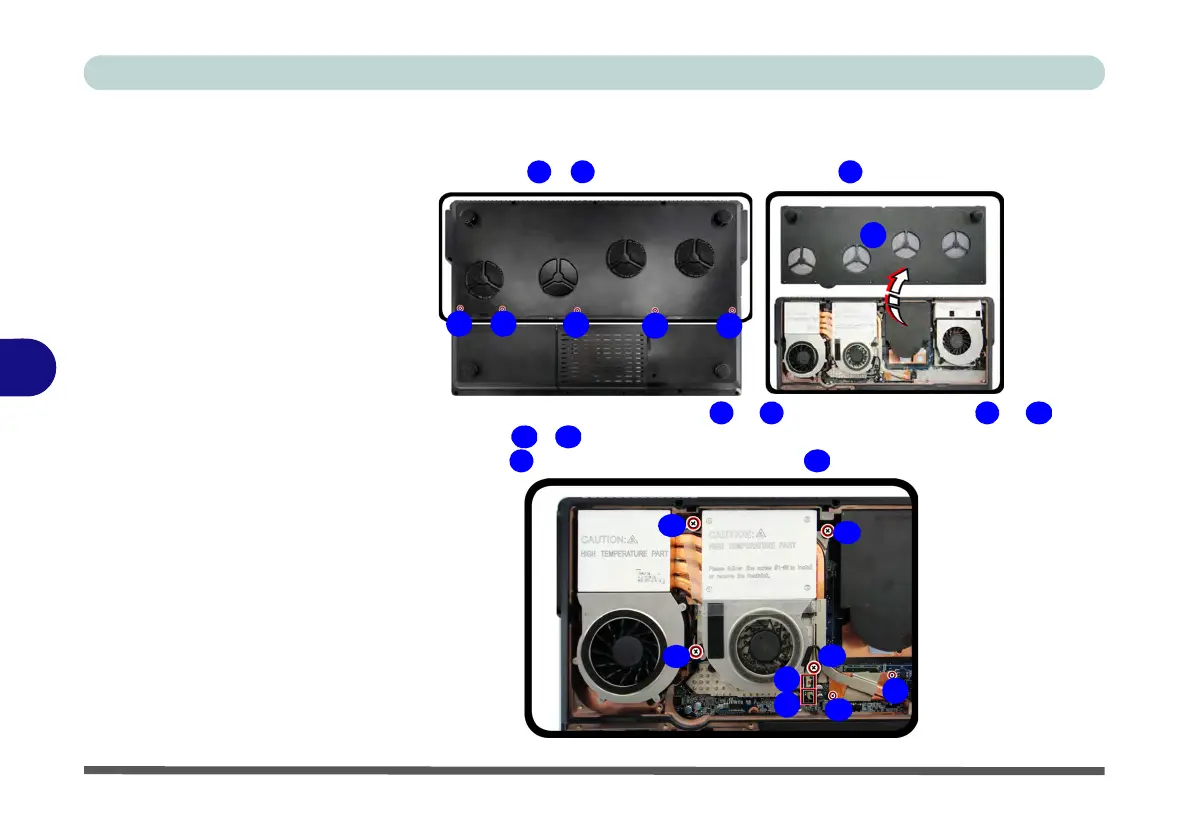

Figure 6 - 21
Component Bay
Cover Removal
Figure 6 - 22
CPU Heatsink Fan
Cables & Screws
