Cloos QINEO NexT - Connection Overview M4

170
QINEO Wire Drive M4

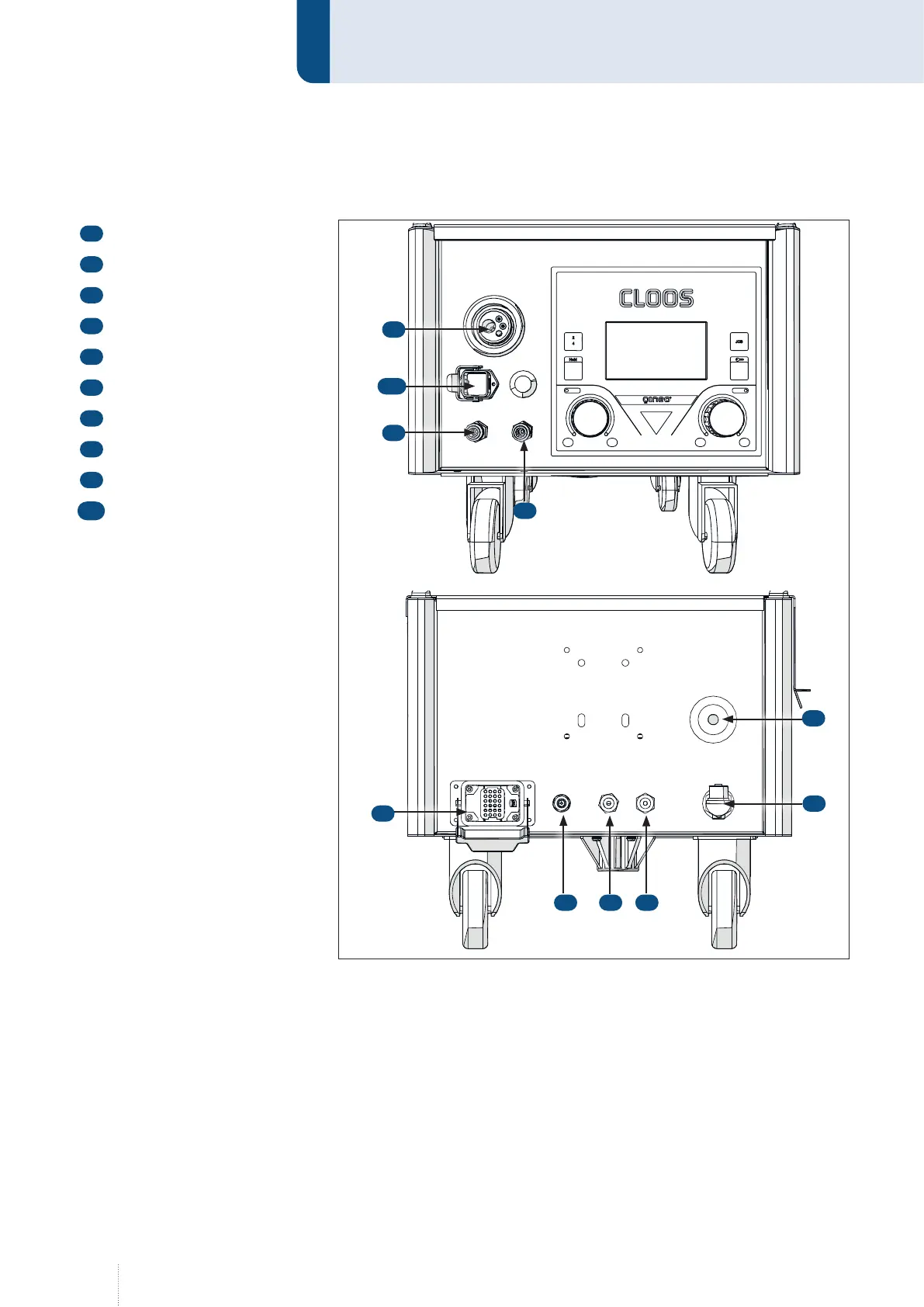

3.1 Connection overview M4
1
Torch cable assembly connection
2
Torch cooling flow
3
Torch cooling return
4
Wire inlet
5
Welding current connection
6
Quick coupling cooling return
7
Quick coupling cooling flow
8
Quick coupling gas
9
Socket to control line
Optional connection RC module
10
9
68
5
7
4
3
2
1
10
