If a PAK is assigned to a user, the user can log on to the welding power
source with the PAK. Only the functions which are enabled for this user are
available.
9.5 Config - Ethernet
An Ethernet interface is used to connect the welding power source to the
QDM (Qineo Data Manager) software. For the communication of the weld-
ing power source within the network, the IP address and the subnet mask
must be set.
Use the arrow keys to move to the desired position for entering numbers.
The selected number field is highlighted in white. You can select a number
between 000 and 255 by means of rotary knob 3. Use one of the arrow keys
to move to the next input field. Press the rotary knob to exit the input
mode.

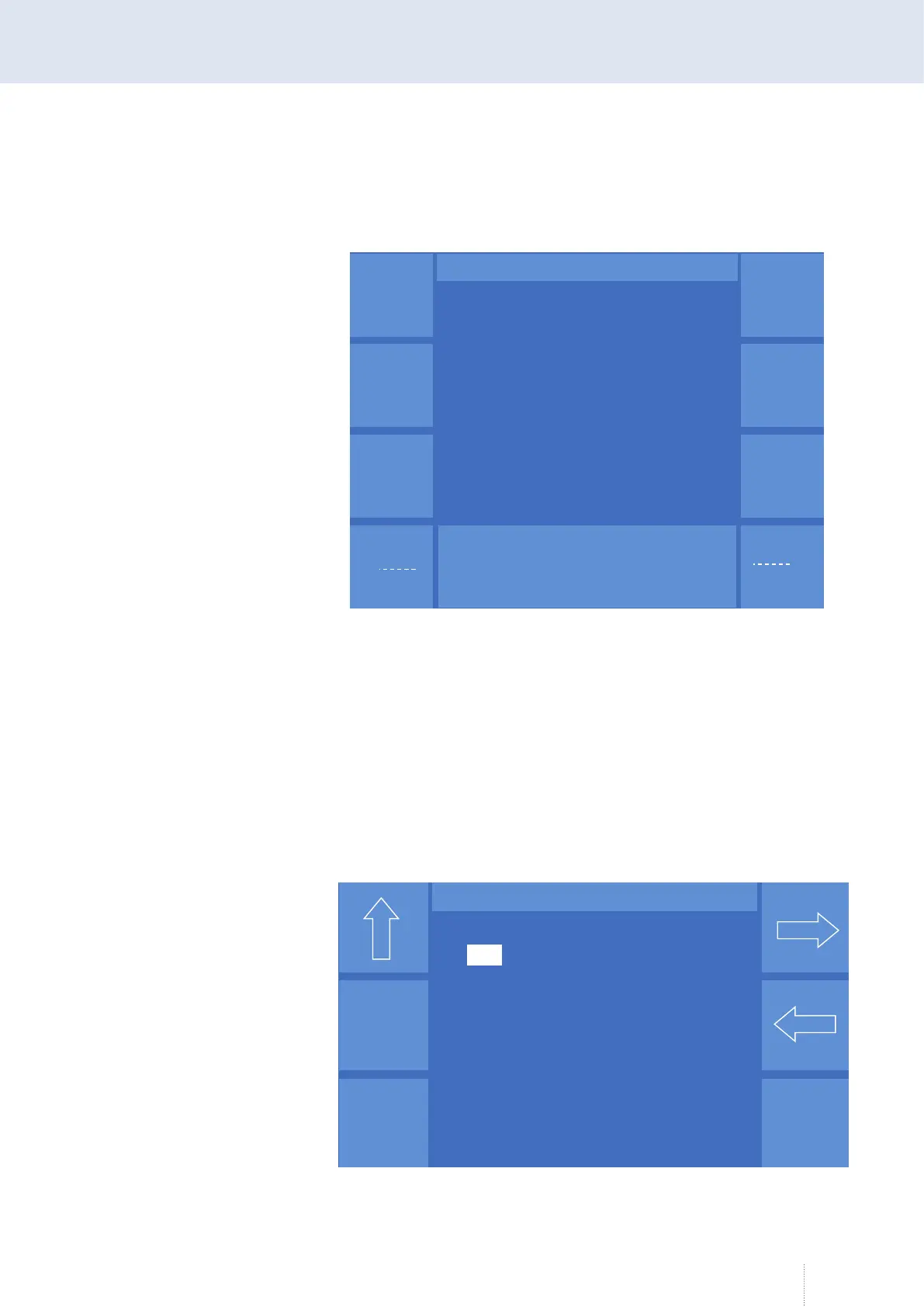

Figure 47. "Main(2)" menu
Konfig
Diagnose
Sprache
M A I N (2)
Daten
sicherung
Anmelden
Abmelden
Puls 4 -Takt
Konfigurator
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
Aktueller Bedienlevel:
Aktueller Bediener:
Mustermann
Konfig - Ethernet
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
Konfig – Ethernet
IP - Adresse
192 . 168 . 170 . 040
Subnetzmaske
255 . 255 . 255 . 000
Figure 48. "Config" - "Ethernet" menu
