10.6.3 Diagnostics - Wire drive unit - QWD-B
This menu displays calibrated and actual current values and signal states,
etc. If the signal state is 1 (On), the corresponding box is highlighted in
yellow.
The value for the calibrated current should be between 1 and 4 A. If the
value is higher or lower, the wire section must be checked.
10.7 Diagnostics - Cooling module
The "Cooling module" menu displays the current functional status of the
water pump and the fan. The symbols are highlighted in yellow when the
components are in operation. The coolant pump also displays the tempera-
ture, the motor current of the pump, any water shortage, the flow rate and
the coolant temperature (for wire drive units with water sensors).
The pump and fan can be started or stopped in diagnostics mode using the
function "Pump fan mode".
Diagnose – QWD-B
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
Typ QN WD B1_1
Software-Version 01.02.11
Status OK
Funktion Motor Stop
Einfädelgeschwindigkeit 5.0 m/min
Einmessstrom 1.00 A
Motor-Strom 0.00 A
Motor-Spannung 0.0 V
Taste Einfädeln
Taste Einmessen
Taste Draht zurück
Taste Einfädeln Schnell
Diagnose Drahtantriebe QWD-B v3.x.x

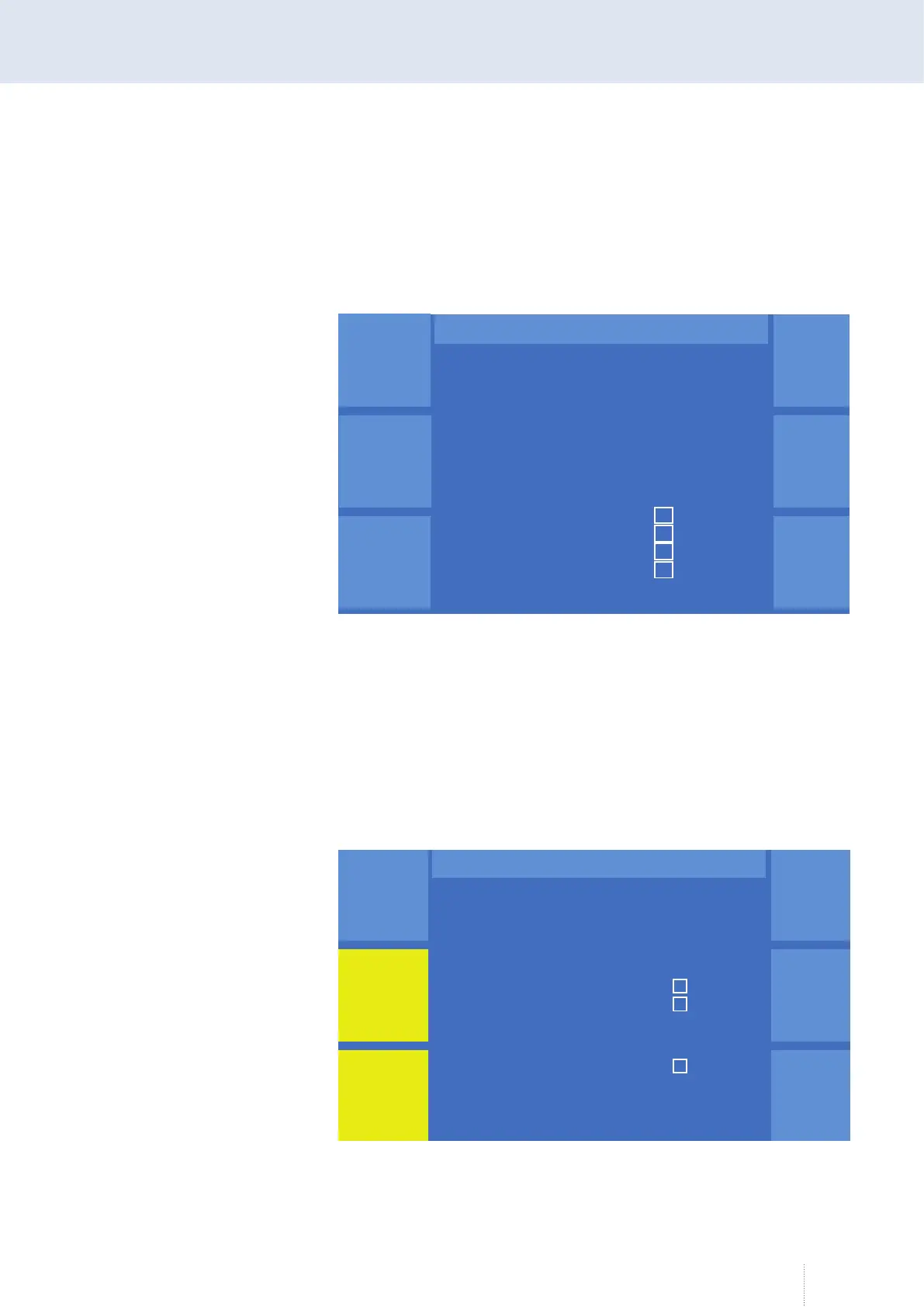

Figure 84. "Diagnostics" - "Wire drive unit" - "QWD-B" menu
Diagnose Kühlmodul
Pumpe
Lüfter
Ein
Led
Diagnose - Kühlmodul
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
Pumpe
Lüfter
Mode
Ausführung
Software-Version:
Pumpe-Lüfter Mode
Start Ein
Pumpe-Lüfter Ein 400 V
Übertemp. Pumpe
Motorstrom Pumpe 0.0 A
Wassermangel
Wasserdurchfluss ----
Wasservorlauftemp 17.0 °C
Wasserrücklauftemp 17.1 °C
Premium
01.03.00
Diagnose
Figure 85. "Diagnostics" - "Cooling module" menu
