Cloos QINEO NexT - Parameters in the Operating Modes 2-Cycle and 4-Cycle

46
MAIN - Programming
During the Job mode, the job has to be saved again! If you did not save the
correction values in a job, the settings of the last selected characteristic
curve are lost!
The numerical values are dimension-free correction values and no absolute
numerical values. The absolute numerical value with the corresponding
physical size is shown in a separate line, see example Figure 12.
When times are corrected (yellow LED), an "OFF" is displayed after "-99". The
function (e.g. Start program) is switched off if "OFF" is displayed.
All correction values are reset to "- 0 -" as soon as another gas/material
combination or another wire diameter is selected.

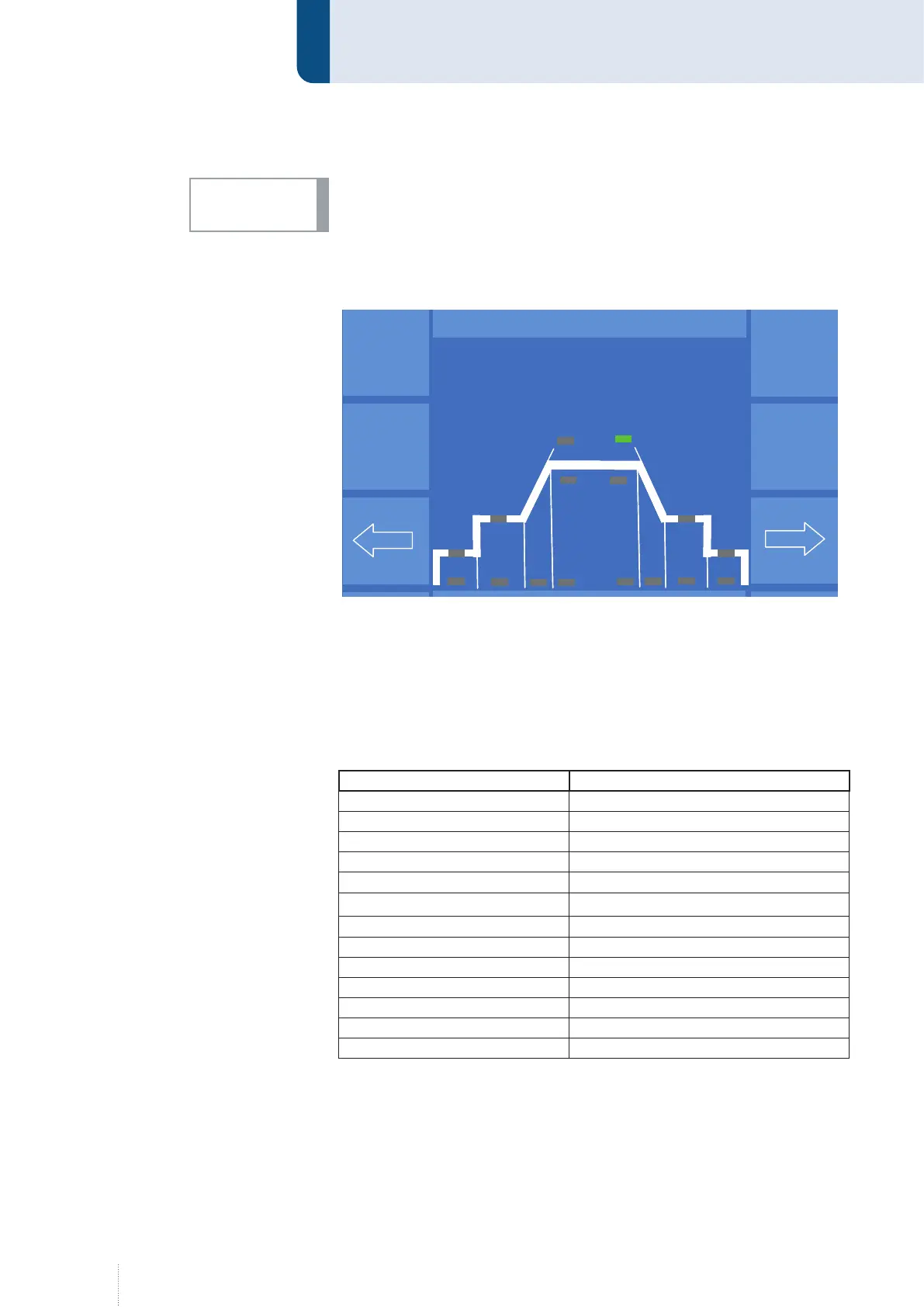

6.1 Parameters in the operating modes 2-cycle and 4-cycle
Function Correction value
Gas pre-flow Off, +/- 99
Inching-in +/- 99
Start program (time) Off, +/- 99
Start program (power) +/- 99
Upslope Off, +/- 99
Main power Absolute value (m/min)
DuoPulse modulation* (+/- 99)
DuoPulse frequency* (+/- 99)
Downslope Off, +/- 99
End crater prog. (Time) Off, +/- 99
End crater prog. (Power) +/- 99
Wire burnback +/- 99
Gas post-flow Off, +/- 99
* Display only if the function is selected!
As far as start, main and end crater power are concerned, the ArcLength
and ArcDynamics can be entered in addition.
INFO!
Figure 12. "Programming" Correction "-0-" menu
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
P R O G R A M M I E R E N
DuoPuls - Frequenz
1.5 Hz
- 0 -
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
P R O G R A M M I E R E N
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
P R O G R A M M I E R E N
DuoPuls - Frequenz
1.5 Hz
- 0 -
