Keypad and menus of the ACU
99-145912-A Chapter 6: Configuration 6-41
Top-level menu

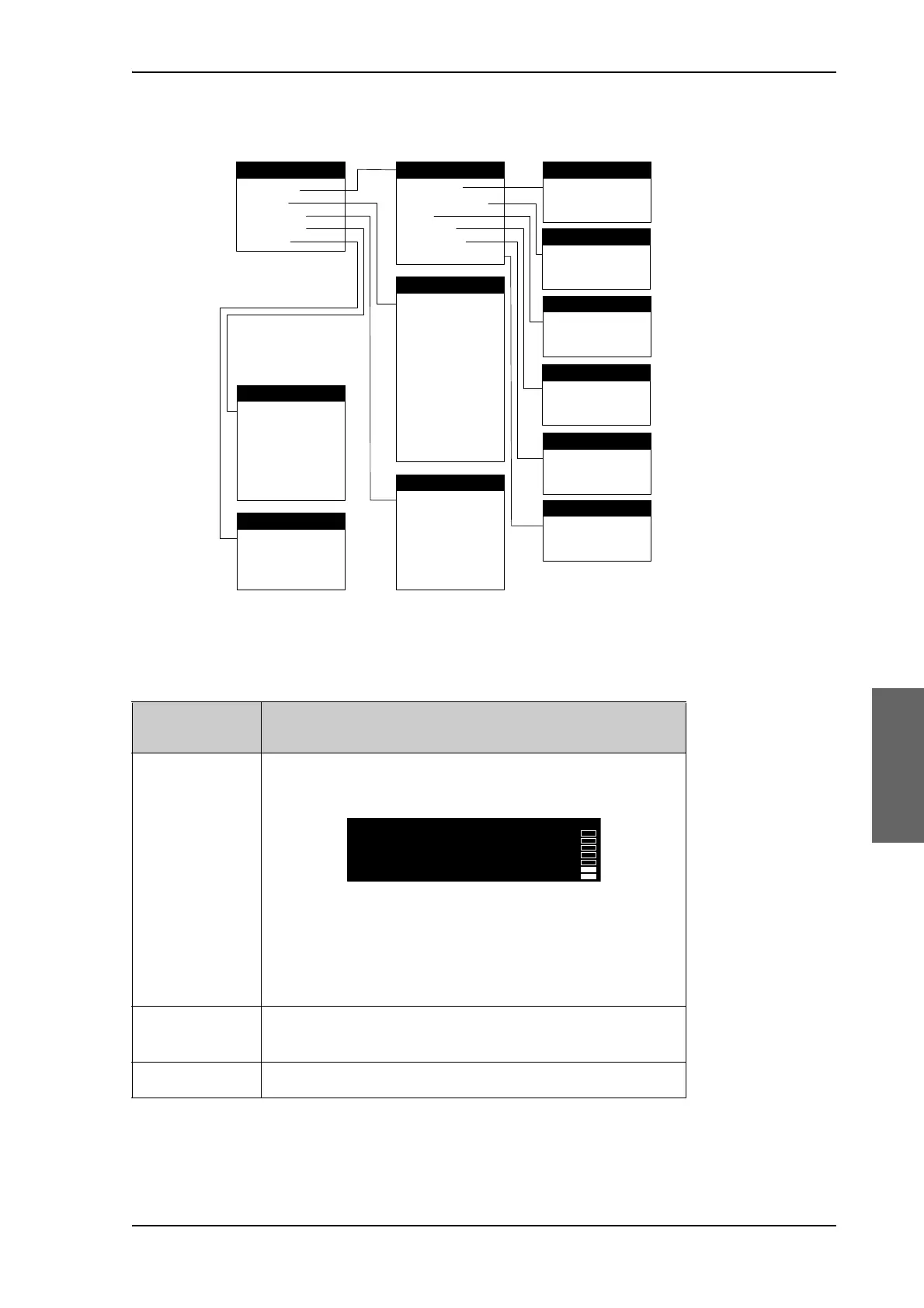

Figure 6-31: Antenna Control Unit, menu tree
MAIN ANT ANT-1
ANTENNA
MODEM
NETWORK
SATELLITE
EVENTS
POINTING
POLARIZATION
GPS
HEADING
VERSIONS
SERIAL NUMBERS
ANTENNA STATE
ELEVATION
AZIMUTH
ANT-2
RX POLARIZATION
TX POLARIZATION
ANT-3
LATITUDE
LONGITUDE
FIX TYPE
ANT-4
HEADING
ANT-5
SW VERSION
ANT-6
ACU
ANTENNA
MODEM
MODEM TYPE
TX ENABLE
RX LOCK
SIGNAL LEVEL
NET LED
STAT LED
TX LED
RX1 LED
RX2 LED
PWR LED
TEMP LED
FAN LED
NETWORK
PORT 1 IP
PORT 1 MASK
PORT 3 IP
PORT 3 MASK
PORT 4 IP
PORT 4 MASK
DEFAULT GATEWAY
SAT
POSITION
RX POLARIZATION
TX POLARIZATION
RX FREQUENCY
LNB LO
TX FREQUENCY
BUC LO
EVENT
<EVENT 1>
<EVENT 2>
<EVENT 3>
<EVENT 4>
Top-level
menu
Description
MAIN View with current status of the SAILOR 100 GX. Example
when logged on to the satellite:
This view is displayed after a time out of 10 minutes. Press
any key (except left arrow) to enter the menu at MAIN.
New events are shown in this display. If an event is displayed,
press OK to jump directly to the menu EVENTS for viewing
the currently active events.
ANTENNA Current ADU parameters, position, software version and serial
numbers of the ADU and ACU.
MODEM Selected GMU type and setup, including signal level.
Table 6-15: Top-level menus of the ACU
