COBHAM SAILOR 100 GX User Manual

Removal and replacement of ADU modules
99-145912-A Chapter 8: Service & maintenance 8-59
Service & maintenance
7. Disconnect the connector from the Azimuth ZRM.
8. Loosen the 2x4 mm Allen screws.
9. Slide out the Azimuth ZRM.
To insert a new Azimuth ZRM follow the instructions above in reverse
order.

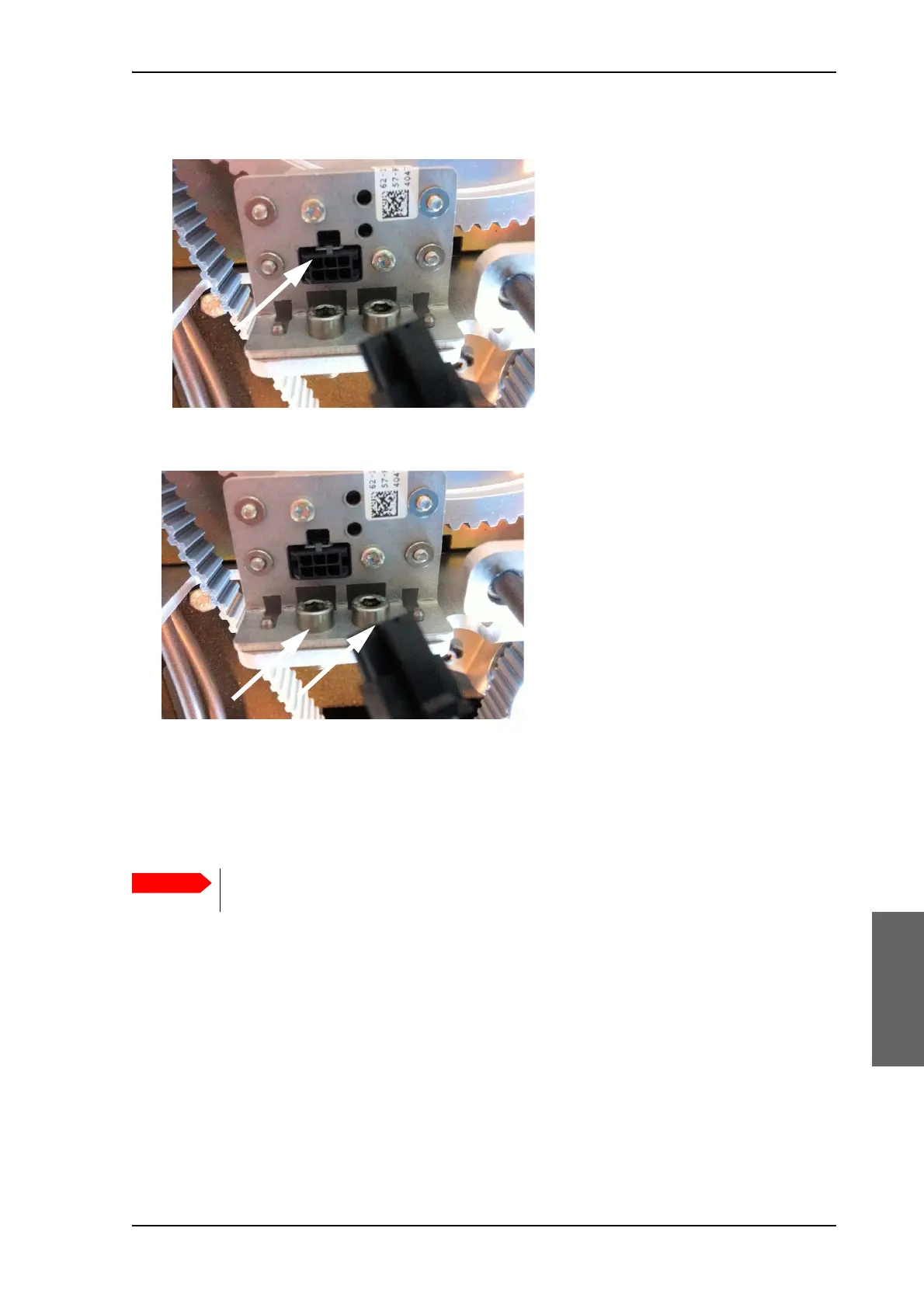

Figure 8-74: Azimuth ZRM, disconnect connector
Figure 8-75: Azimuth ZRM, disconnect connector
Important
It is very important that you slide the ZRM all the way into
the guide pins.
