Removal and replacement of ADU modules
8-58 Chapter 8: Service & maintenance 99-145912-A
8..6.9.3 To replace the Azimuth ZRM
To remove the Azimuth ZRM, do as follows:
1. Open the service hatch.
2. Switch off the power to the antenna on the service switch.
3. Rotate the antenna pedestal so that the Azimuth DDM faces the
service hatch.
4. Rotate the antenna dish to top position.
5. Press in and turn the elevation locking pin (available in some
antennas) to locked position.
6. Loosen the 15x4 mm Allen screws (the 3 Allen screws on top are
longer than the rest) on the cover over the azimuth drive modules,
and remove the cover (lift and slide).
Tools needed:
•TX20
• 4 x 150 mm Allen key
(located inside the service
door of the ADU)

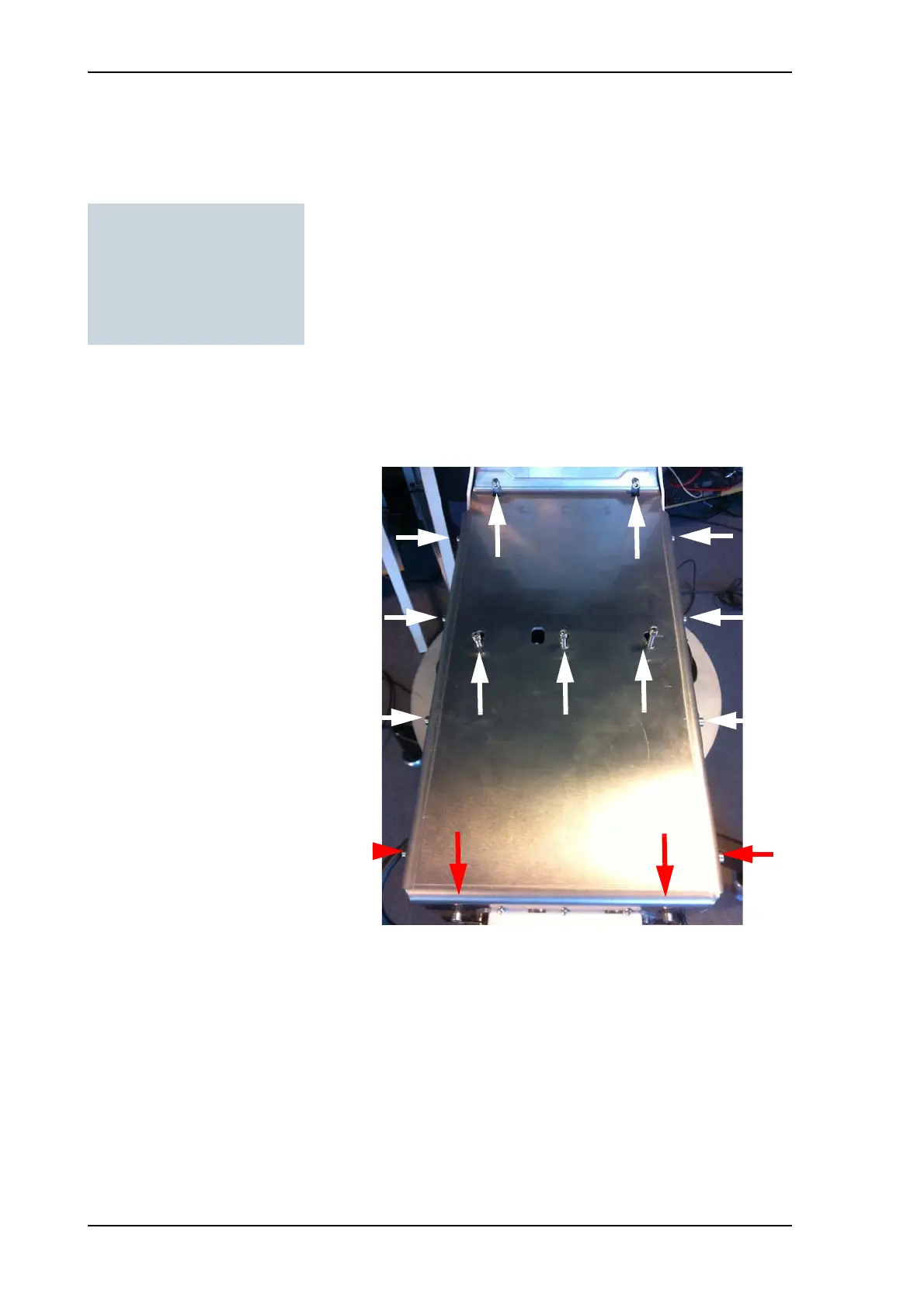

Figure 8-73: Azimuth ZRM, remove cover
L=35 mm L=35 mm L=35 mm
