Configuration with the web interface
6-30 Chapter 6: Configuration 99-145912-A
Processing the statistics report in a spreadsheet application
The statistics report is in a data format that can be imported into
spreadsheet applications, e.g. Microsoft Excel, for further processing.
1. Save the zipped file to your computer and extract the text file. The
file name contains the identification of the system (example: adu-
acu3_stat_20111021110901_day.csv).
2. Open the spreadsheet application, for example Microsoft Excel. On
the tab Data click the tab Import from text. Import the unzipped
text file and follow the instructions in the wizard. When asked about
the delimiter, select ‘comma’.
The following figure shows an example of a statistics report in MS Excel
2007.
Carrier rf.rx (GHz)
Carrier rf.tx (GHz)
Rx frequency of carrier for this record.
Tx frequency of carrier for this record.
Pol.rx
Pol.tx
Current Rx and Tx polarisation modes
Rx Lock (%)
Logon (%)
Rx locked and logon time, in percent, for the sampling
interval.
Pos Ok (%) Valid position, in percent of the sampling interval.
VMU Connection (%) Link with GMU, in percent of the sampling interval.
Blocking (%) Ship in blocking zone, in percent of the sampling
interval.
Parameter recorded Description

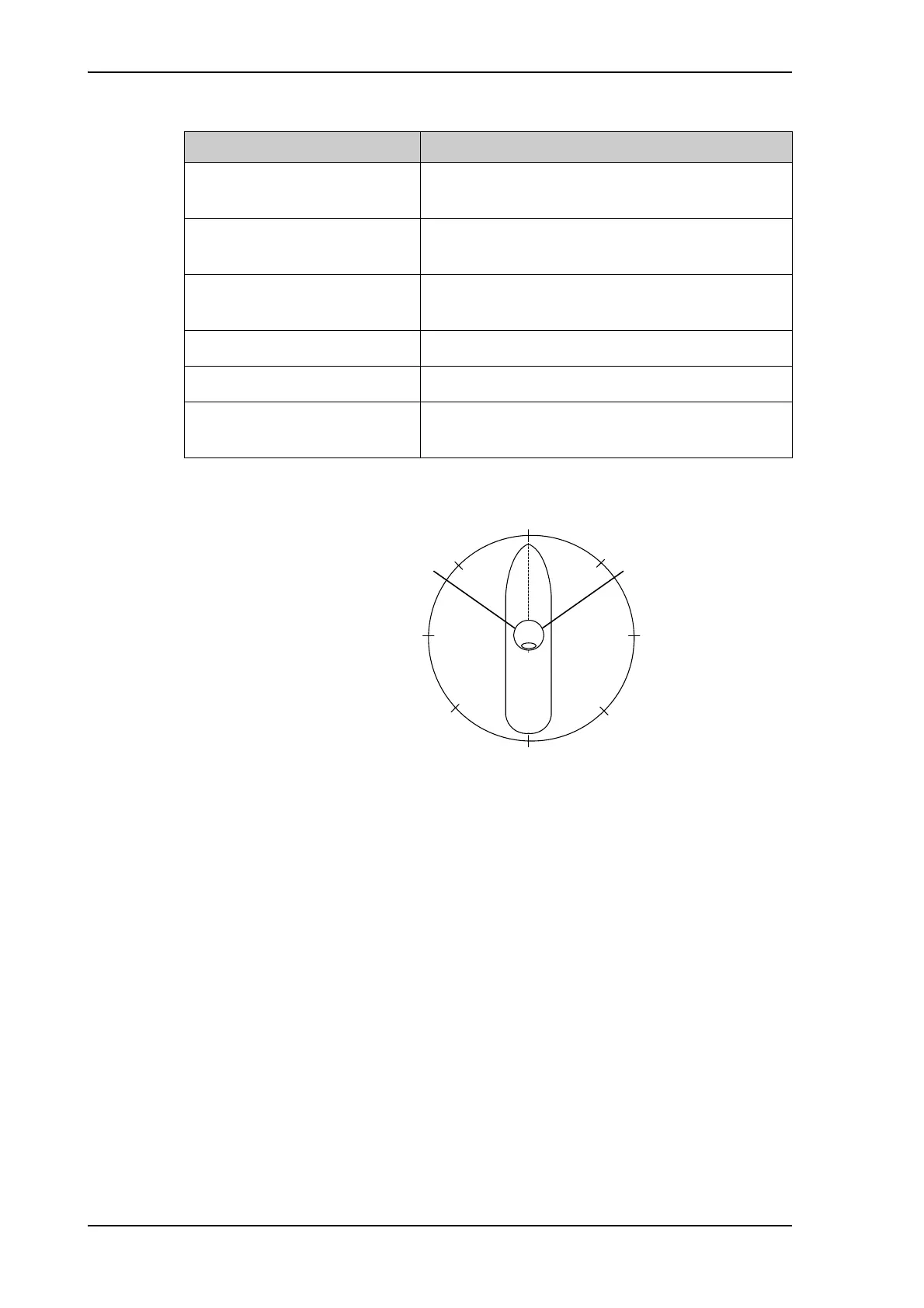

Table 6-13: Parameters recorded in a statistics report (Continued)
Figure 6-21: Statistics — how to read data for a range
360°
000°
45°
90°
180°
135°225°
270°
315°
Antenna
MaxMin
Covered area:
If range > 0: Go from Min to Max counterclockwise
If range < 0: Go from Min to Max clockwise
