Codan HF SSB User Manual

Appendix
HF SSB transceiver reference manual 11-3

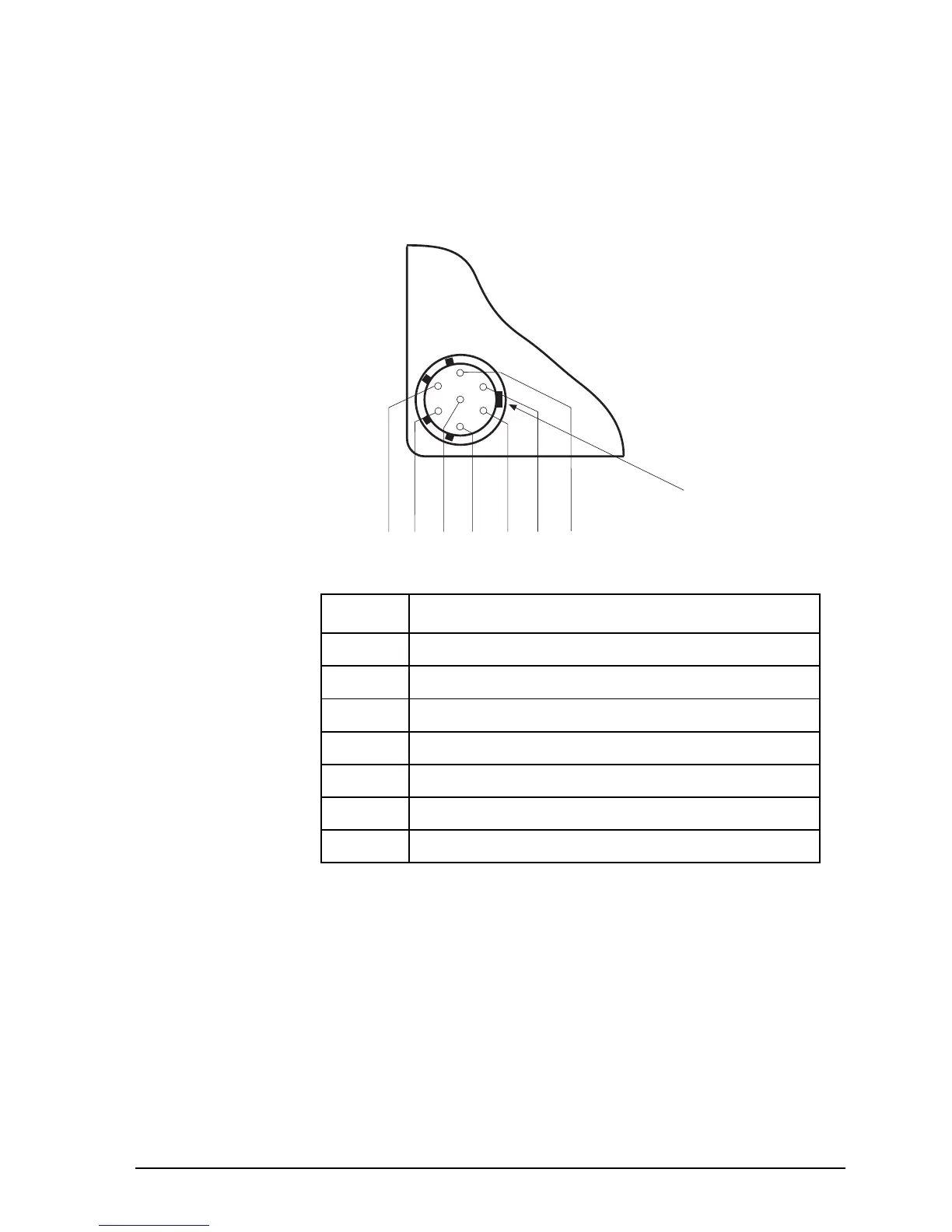

Microphone socket
The microphone socket is unmarked. It is located at the left
of the front panel.
4
37
2
1
6
5
Key reference
Pin Function
1 Loudspeaker audio output
2 Microphone input
3 Ground
4 Data in
5 PTT in (active low) and data out
6 Battery (switched)
7 Front panel speaker (ground return)
Appendix
HF SSB transceiver reference manual 11-3
Microphone socket
The microphone socket is unmarked. It is located at the left
of the front panel.
4
37
2
1
6
5
Key reference
Pin Function
1 Loudspeaker audio output
2 Microphone input
3 Ground
4 Data in
5 PTT in (active low) and data out
6 Battery (switched)
7 Front panel speaker (ground return)

Codan HF SSB Specifications

General

Brand	Codan
Model	HF SSB
Category	Transceiver
Language	English
