Codan HF SSB User Manual

Installation
2-2 HF SSB transceiver reference manual
Type of station
There are two versions of the transceiver. The front control
version has the controls on the front panel of the transceiver.
The extended control version has the controls on a separate
control head.
There are two types of station:
• fixed base station
• mobile station.
Fixed base station
A fixed base station typically consists of an AC power supply
connected directly to the mains. DC output from the power
supply is connected to the transceiver, which in turn is
connected to an antenna.

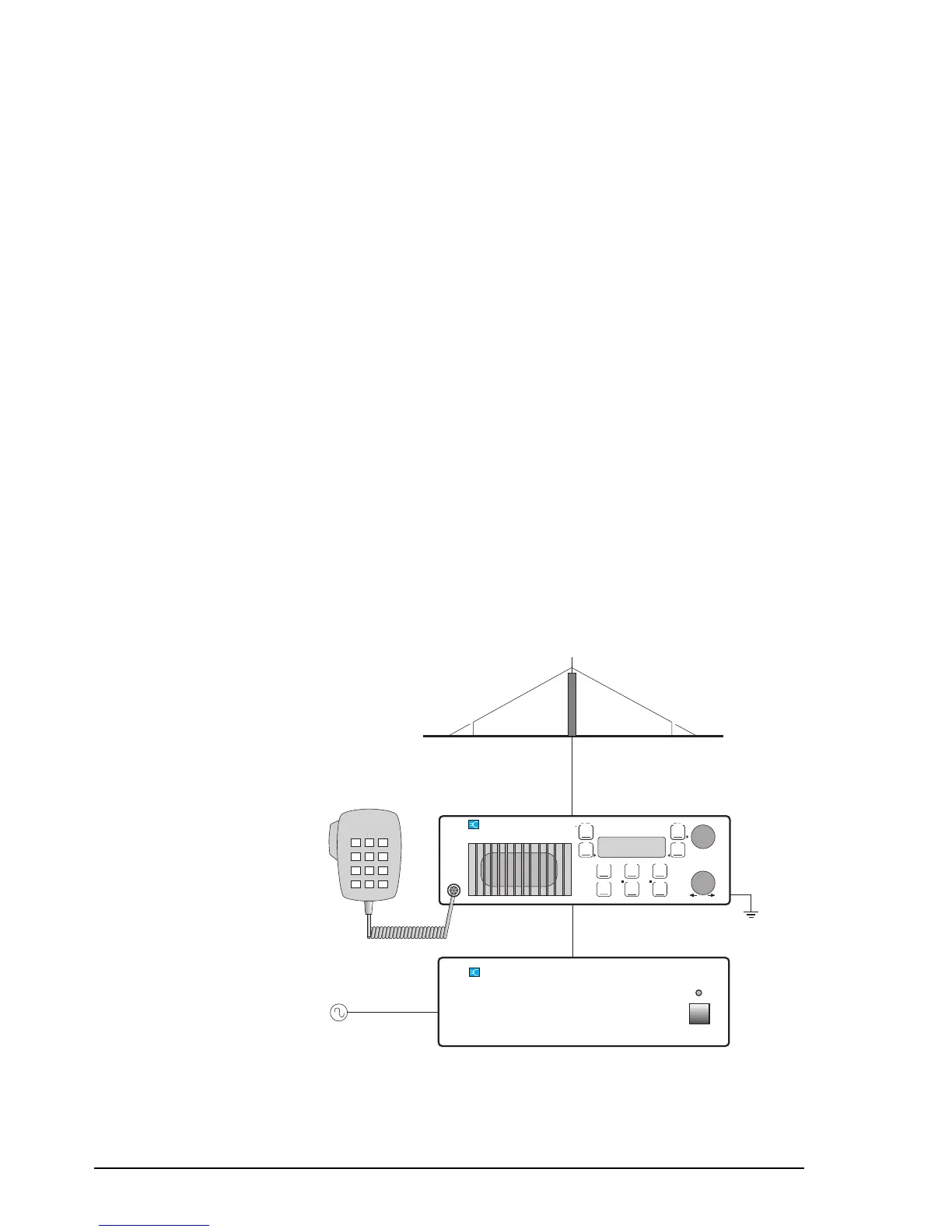

AC power supply
Coaxial cable
Broadband antenna
system
Microphone
Earth point
AC mains
Chan
1
Chan
1
XXXX Power Supply
CODAN
On/Off
Select
Mode
Scan
Emgcy
Call
S'Call
Mute
Voice
Mute
On/Off Mode
Tune
USB/LSB
F2F1
Volume
93XX SSB Transceiver
CODAN
Front control
transceiver
Figure 2.1
A typical fixed base station
Installation
2-2 HF SSB transceiver reference manual
Type of station
There are two versions of the transceiver. The front control
version has the controls on the front panel of the transceiver.
The extended control version has the controls on a separate
control head.
There are two types of station:
• fixed base station
• mobile station.
Fixed base station
A fixed base station typically consists of an AC power supply
connected directly to the mains. DC output from the power
supply is connected to the transceiver, which in turn is
connected to an antenna.
AC power supply
Coaxial cable
Broadband antenna
system
Microphone
Earth point
AC mains
Chan
1
Chan
1
XXXX Power Supply
CODAN
On/Off
Select
Mode
Scan
Emgcy
Call
S'Call
Mute
Voice
Mute
On/Off Mode
Tune
USB/LSB
F2F1
Volume
93XX SSB Transceiver
CODAN
Front control
transceiver
Figure 2.1
A typical fixed base station
