Installation
2-8 HF SSB transceiver reference manual
Mounting the control head and loudspeaker
Make sure that the transceiver is disconnected from the DC
power source before connecting the control head to the
Remote Control connector on the transceiver.
Select a suitable location to mount the control head and
loudspeaker. Avoid places exposed to direct sunlight such as
the car dashboard close to the windscreen.
L/S loudspeaker socket
10-pin control cable
connector
Bottom entry
cable path
Top entry
cable path

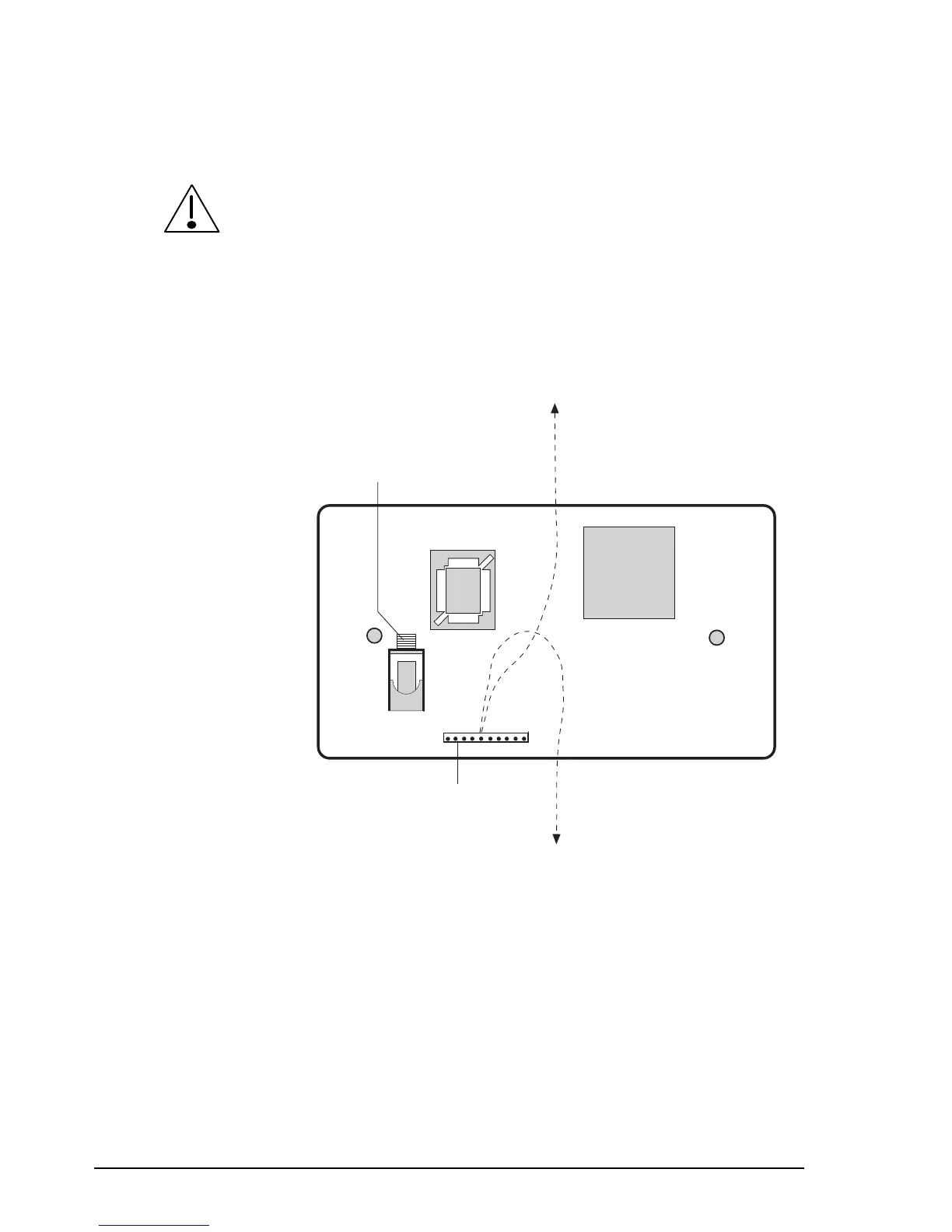

Figure 2.3
Rear view of control head without cover
Installation
2-8 HF SSB transceiver reference manual
Mounting the control head and loudspeaker
Make sure that the transceiver is disconnected from the DC
power source before connecting the control head to the
Remote Control connector on the transceiver.
Select a suitable location to mount the control head and
loudspeaker. Avoid places exposed to direct sunlight such as
the car dashboard close to the windscreen.
L/S loudspeaker socket
10-pin control cable
connector
Bottom entry
cable path
Top entry
cable path
Figure 2.3
Rear view of control head without cover
