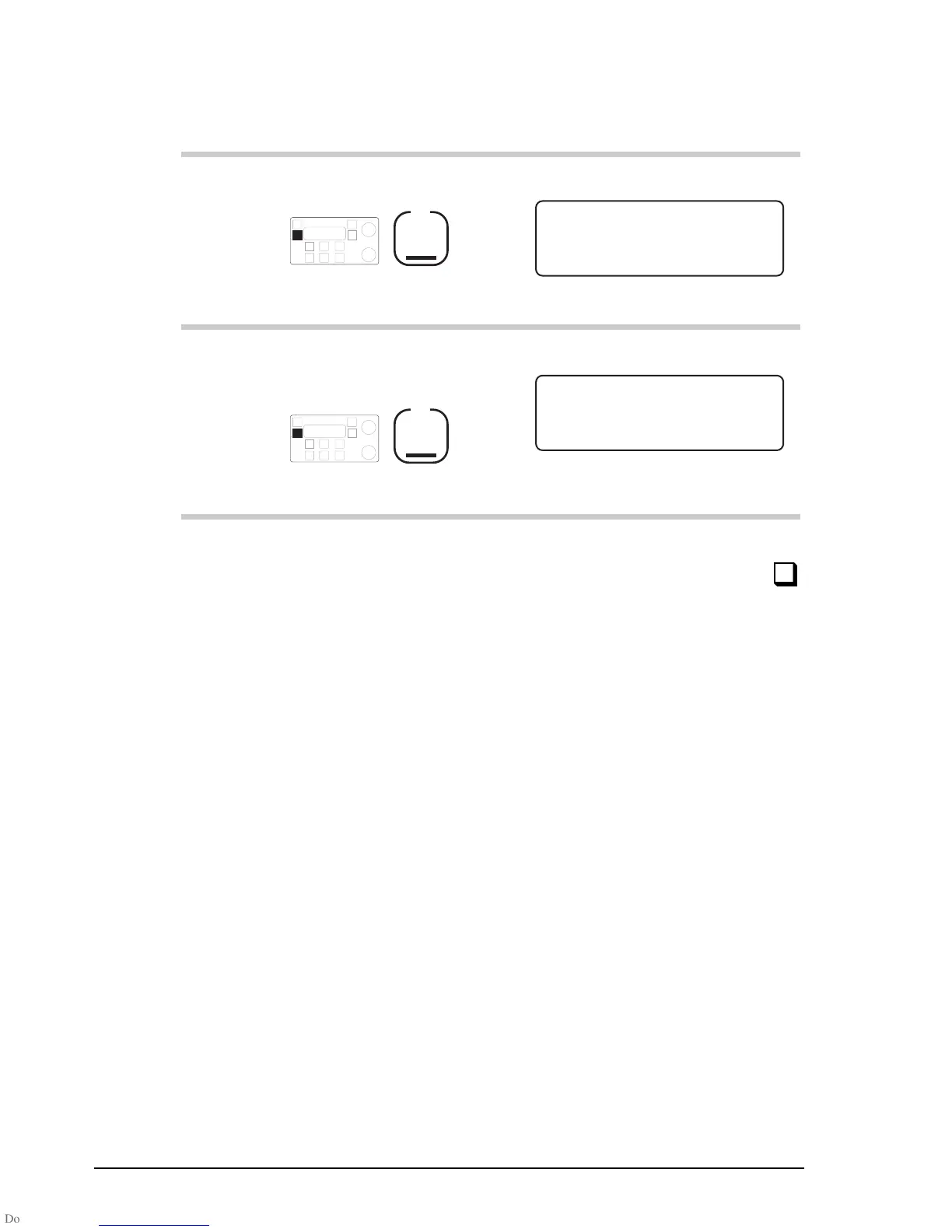

Channel and scan table setup
3-28
HF SSB transceiver reference manual
Action
Notes
4.
Press
F1
Example of the display:
DELETE
Scan T
able:
2
EXIT
Local Network
F1 to delete table
5.
To delete the scan
table, press
F1
Example of the display:
149
2040
CALL
Rx.
USB
HI
Geneva Switzerland
Pwr
Channel and scan table setup
3-28
HF SSB transceiver reference
manual
Action
Notes
4.
Press
F1
Example of the display:
DELETE
Scan T
able:
2
EXIT
Local Network
F1 to delete table
5.
To delete the scan
table, press
F1
Example of the display:
149
2040
CALL
Rx.
USB
HI
Geneva Switzerland
Pwr
