InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 12
AMF26-P-2.4 Reference Guide.pdf

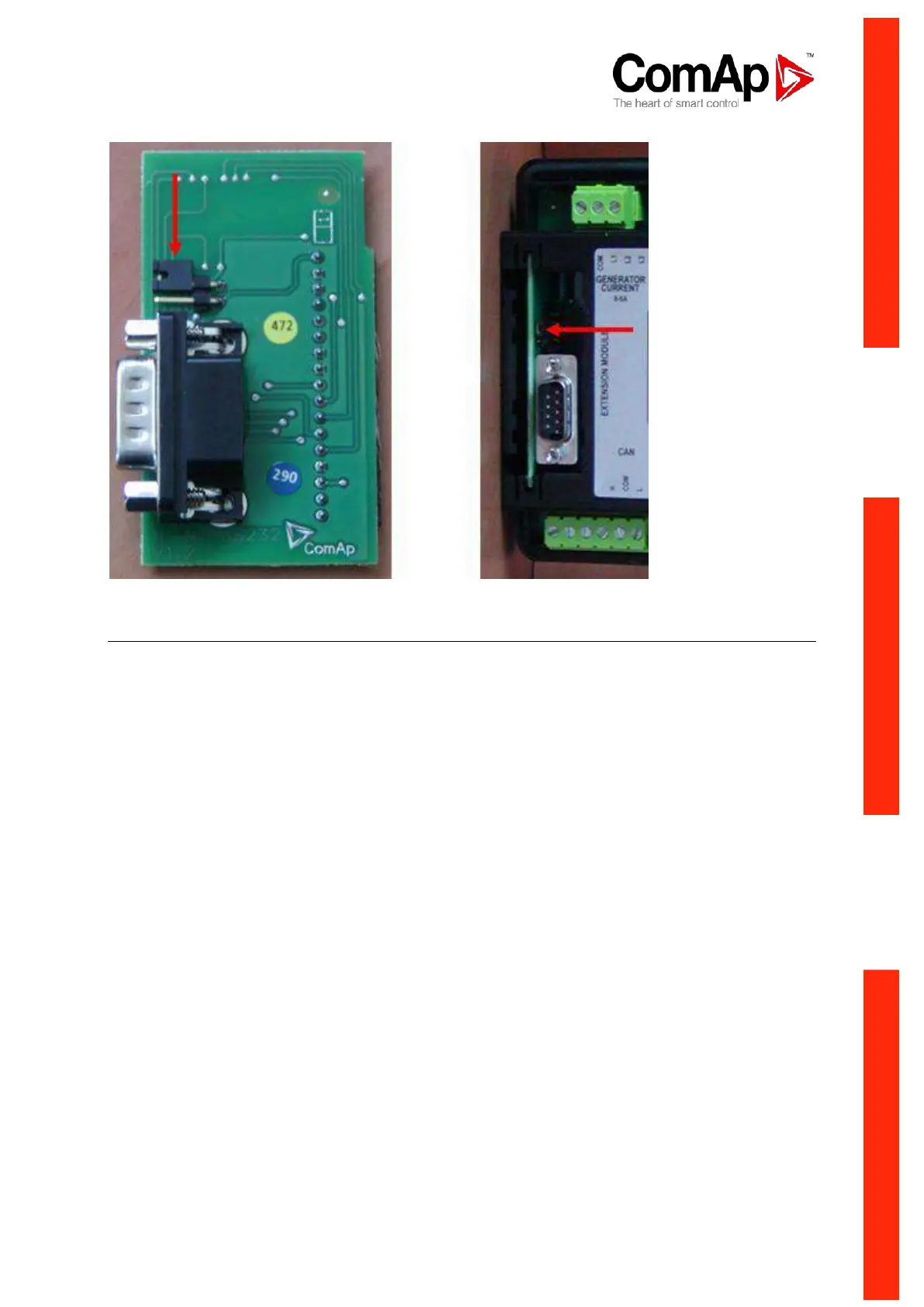

RS 232 communication module with the boot jumper.
IL-NT RS232-485 Communication module
IL-NT RS232-485 is optional plug-in card to enable InteliLite
NT
the RS232 and RS485 communication.
This is required for computer or Modbus connection. Card inserts into expansion slot back on the
controller. The IL-NT RS232-485 is a dual port module with RS232 and RS485 interfaces at
independent COM channels. The RS232 is connected to COM1 and RS485 to COM2.
To insert the module, please follow the instructions for IL-NT RS232 module, procedure is analogous.
You must open the cover first (use screwdriver to open) and then insert the module into slot. Once you
have inserted it, the module will snap under plastic teeth. It is supposed to be installed permanently.
Should you need to remove it, the safest way is to remove whole back cover and than remove module
manually.
