ComAp InteliLite NT AMF26-P - Voltage Measurement and Generator Connection Types

InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 36
AMF26-P-2.4 Reference Guide.pdf
7
Binary output 1 – PREHEATING*
8
Binary output 2 – BREAKER TRIP*
9
Power supply – Minus
*Untill version IL-NT-AMF26-P-1.0 and LiteEdit-4.4.1 these funcuions are fixed, since IL-NT-AMF26-P-2.0 and
LiteEdit-4.4.2 the BI/BOs are fully configurable.
IL-NT-EFCPM2
Input
Description
CT l
Input range up to 10 mA (earth fault protection input)
CT k
Common (earth fault protection input)
BIO1
Binary input/output*
BIO2
Binary input/output*
BIO3
Binary input/output*
BIO4
Binary input/output*
BIO5
Binary input/output*
BIO6
Binary input/output*
BIO7
Binary input/output*
BATT-
Power supply – Minus
*Depends on configuration in LiteEdit PC software (supported from LiteEdit-4.4.2).

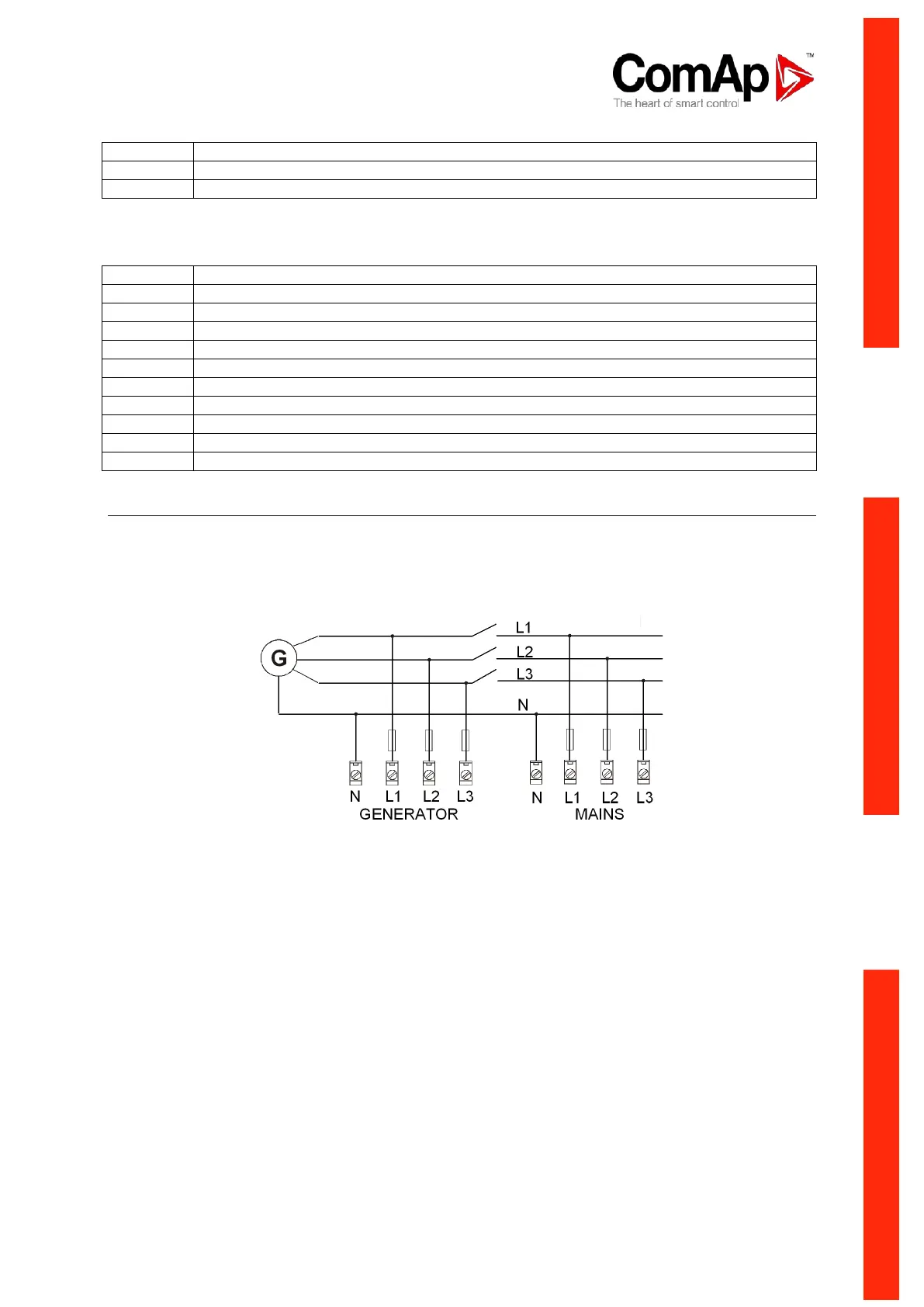

Voltage measurement and generator connection types
There are 4 voltage measurement ConnectionType options, every type matches to corresponding
generator connection type.
ConnectionType: 3 Phase 4 Wires
Three phase “wye” measurement – 3PY
3 Phase 4 Wires - STAR Connecti
