ComAp InteliLite NT AMF26-P - Extension Modules (CAN Bus) Connection

InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 46
AMF26-P-2.4 Reference Guide.pdf

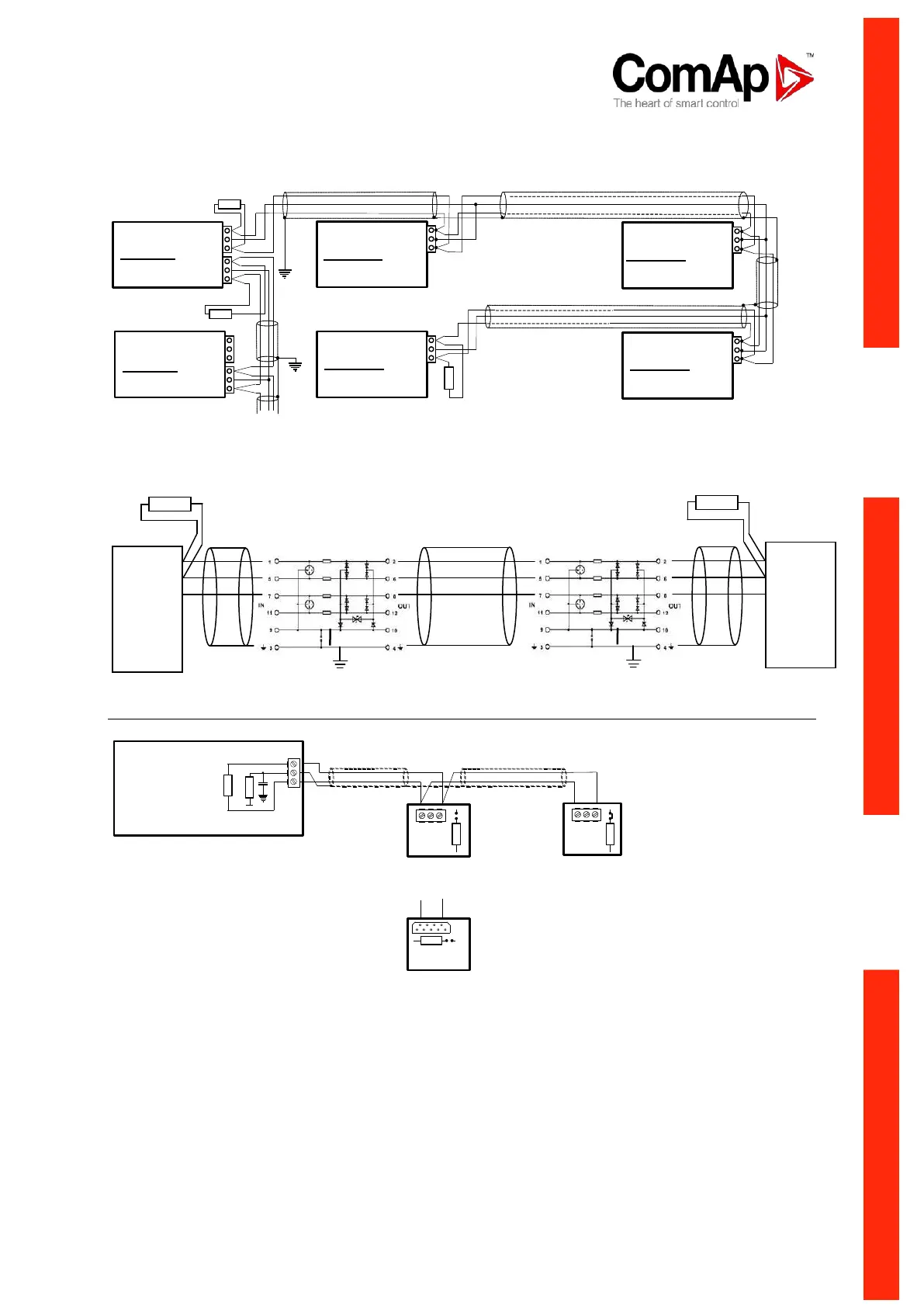

Picture 2 - longer distances (connection between rooms within one building)
CAN1
H
COM
L
CAN2
120
1.iS-CU
Addr.: 1Addr.: 1
CAN1 CAN1
8.iS-AIN
Addr.: 8
7.iS-BIN
Addr.: in13
out7
CAN1 CAN1
1.iS-AIN
Addr.: 1
120
1.iS-BIN
Addr.: in1
out1
CAN1CAN2
2.iS-CU
120
H
COM
L
H
COM
L
H
COM
L
H
COM
L
H
COM
L
H
COM
L
H
COM
L
Picture 3 - surge hazard (connection out of building in case of storm etc.)
120 Ω 120 Ω
PT5-HF-12DC-ST (CAN)
PT5-HF-5DC-ST (RS485)
Extension modules (CAN bus) connection
CAN H
CAN L
IGL-RA15 (optional)
CAN H
CAN L
or
CAN L
CAN H
COM
IGS-PTM (optional)
CAN L
CAN H
COM
IG-IOM (optional)
5
9
CAN L
CAN H
120 ohm
EXTENSION
MODULES
H
L
120 ohm
10 ohm
15nF
COM
IL-NT
H/A
L/B
COM
H/A
L/B
COM
