InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 57
AMF26-P-2.4 Reference Guide.pdf
Exact formulas:
The output is closed when the current at least in one phase is for 1 sec over CT ratio/200+2
The output is opened when the current in all three phases is for 1 sec below CT ratio/200+2
Hint:
Values are truncated after division, not rounded.
Fault Reset
The output is a copy of Fault Reset button on controller and binary input FAULTRESBUTTON.
Gen Healthy
The output is a copy of generator status LED on IL-NT front panel. The output is closed if gen-set is
running and all gen-set electric values are in limits.
Mains Healthy
The output is copy of mains status LED on IL-NT front panel. The output is closed if mains voltage and
frequency are within limits.
Timer 1
The output closes when Timer 1 is active.
Timer 2
The output closes when Timer 2 is active.
Timer 3
The output closes when Timer 3 is active.
For more details about Timer options see Date/Time: Timer1..3Function.
DualAMFCtrlOut
Control output for Mutual Standby Application. This binary output of controller 1 must be configured
and interconnected with binary input DualAMFCtrlIn of controller 2 for correct Mutual Standby function

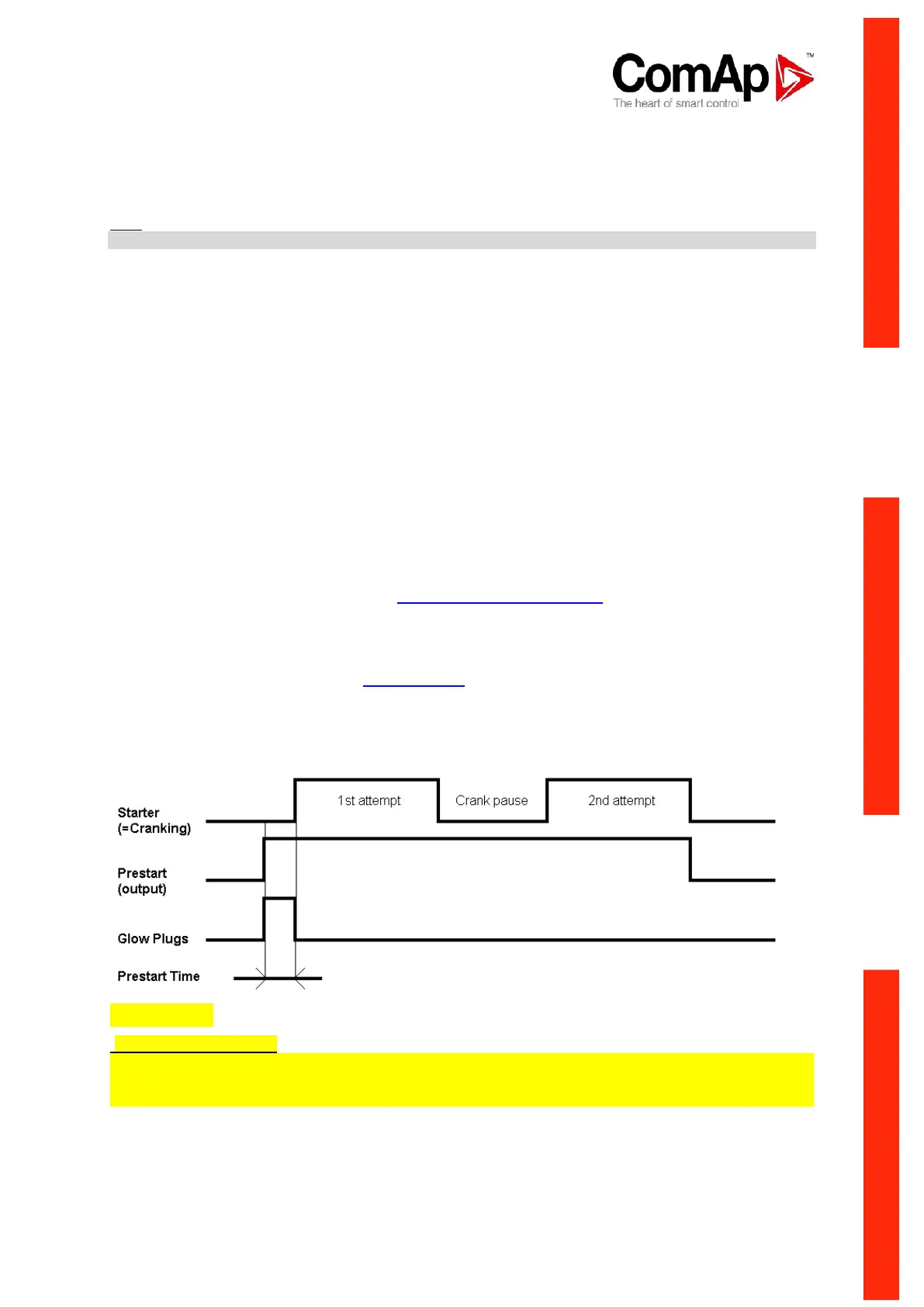

Glow Plugs
The output closes prior to the engine start (by Prestart Time) and opens at the beginning of cranking
time. In case of repeated crank attempts the output doesn’t close again and stays inactive.
Fuel Pump
Automatic evaluation:
Automatic function is evaluated based on Fuel Pump ON and Fuel Pump OFF values, which are
placed in Basic settings setpoint group. When Fuel level value (measured on Analog Input 3) drops
below/on level given by Engine Params: Fuel Pump ON, then binary output FUEL PUMP is activated.
