InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 44
AMF26-P-2.4 Reference Guide.pdf
+
Battery
-
iL
4k7 :
+
-
Power
Supply

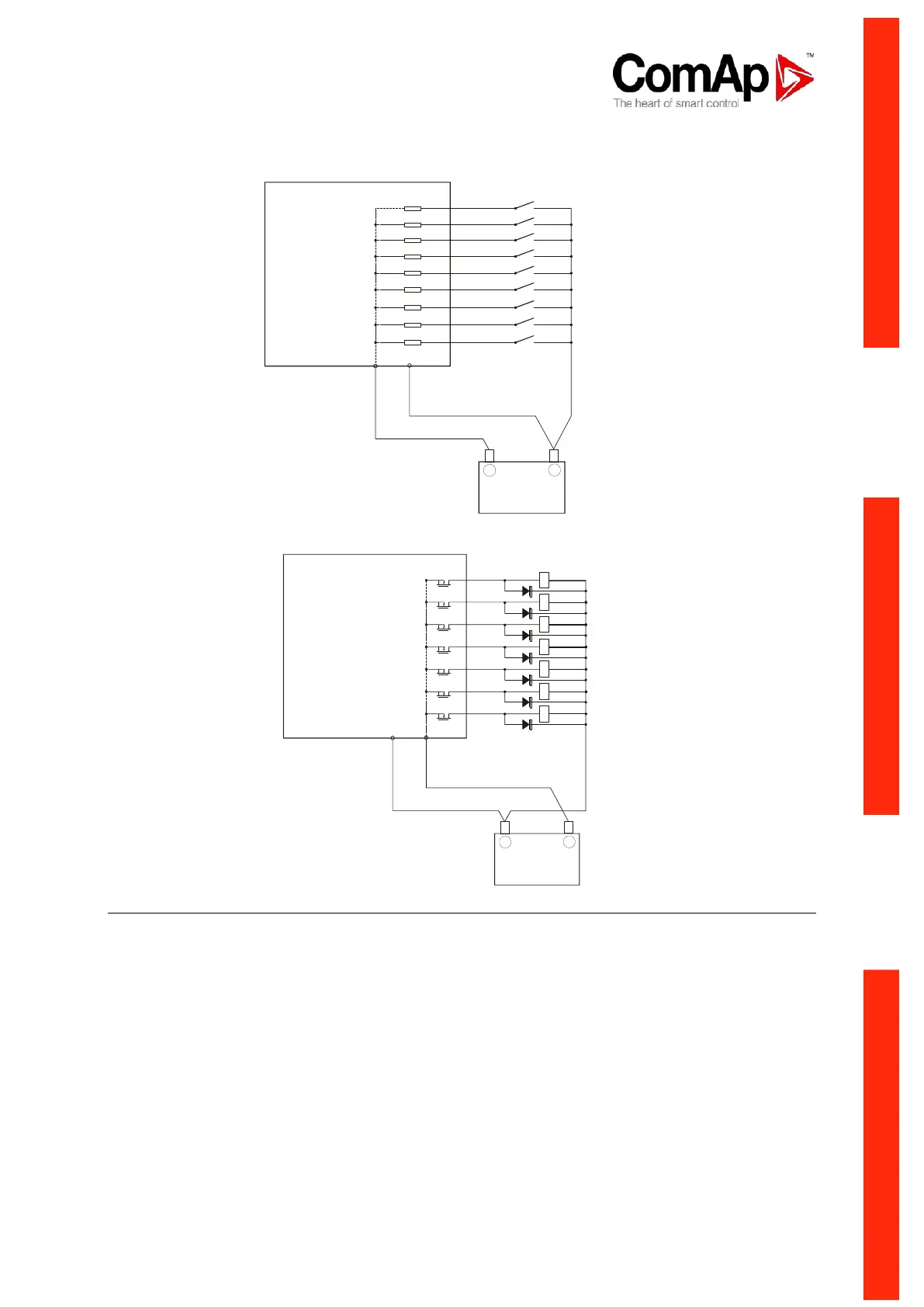

Connection of IL-NT binary inputs
Connection of IL-NT binary outputs
Recommended CAN/RS485 connection
CAN bus connection
The bus has to be terminated by 120 Ohm resistors at both ends.
External units can be connected on the CAN bus line in any order, but keeping line arrangement (no
tails, no star) is necessary.
Standard maximum bus length is 200m
Shielded cable has to be used, shielding has to be connected to PE on one side (controller side).
A) For shorter distances (all network components within one room) – picture 1
Interconnect H and L; shielding connect to PE on controller side
B) For longer distances (connection between rooms within one building) – picture 2
+
Battery
-
iL
LOAD
+
-
Power
Supply
To Next Page
