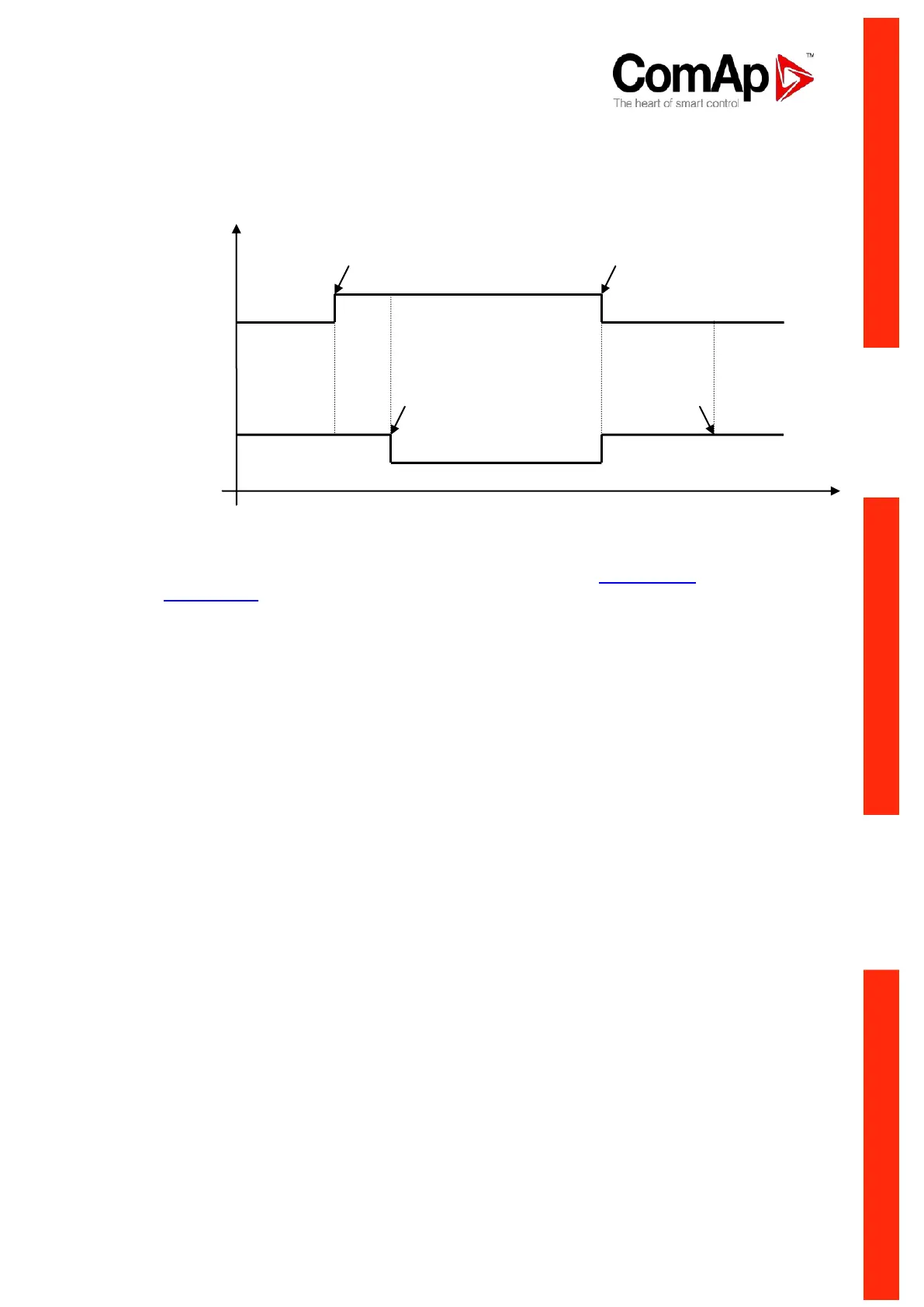

analog inputs read from the ECU. If the output is configured (which means configured on physical
binary output or VPIO output), the issuing of communication error is blocked during Prestart and
Stopping procedure as shown in the picture.
Configuration1..3
The output closes when respective configuration (of nominal values) in Alternate Cfg group is active
in case Config Switch is set to AutDetect.
Remote Connect
This output copies state of “R” letter which is visible on controlle display in case any Remote
connection is active. When “R” is visible the output is active, when not visible the output is not active.
Beginning of
Prestart
Fuel
solenoid
deactivation
ECU
communication
failure alarm
blocked
End of
Prestart
Engine
stopped
t
ECU PwrRelay
