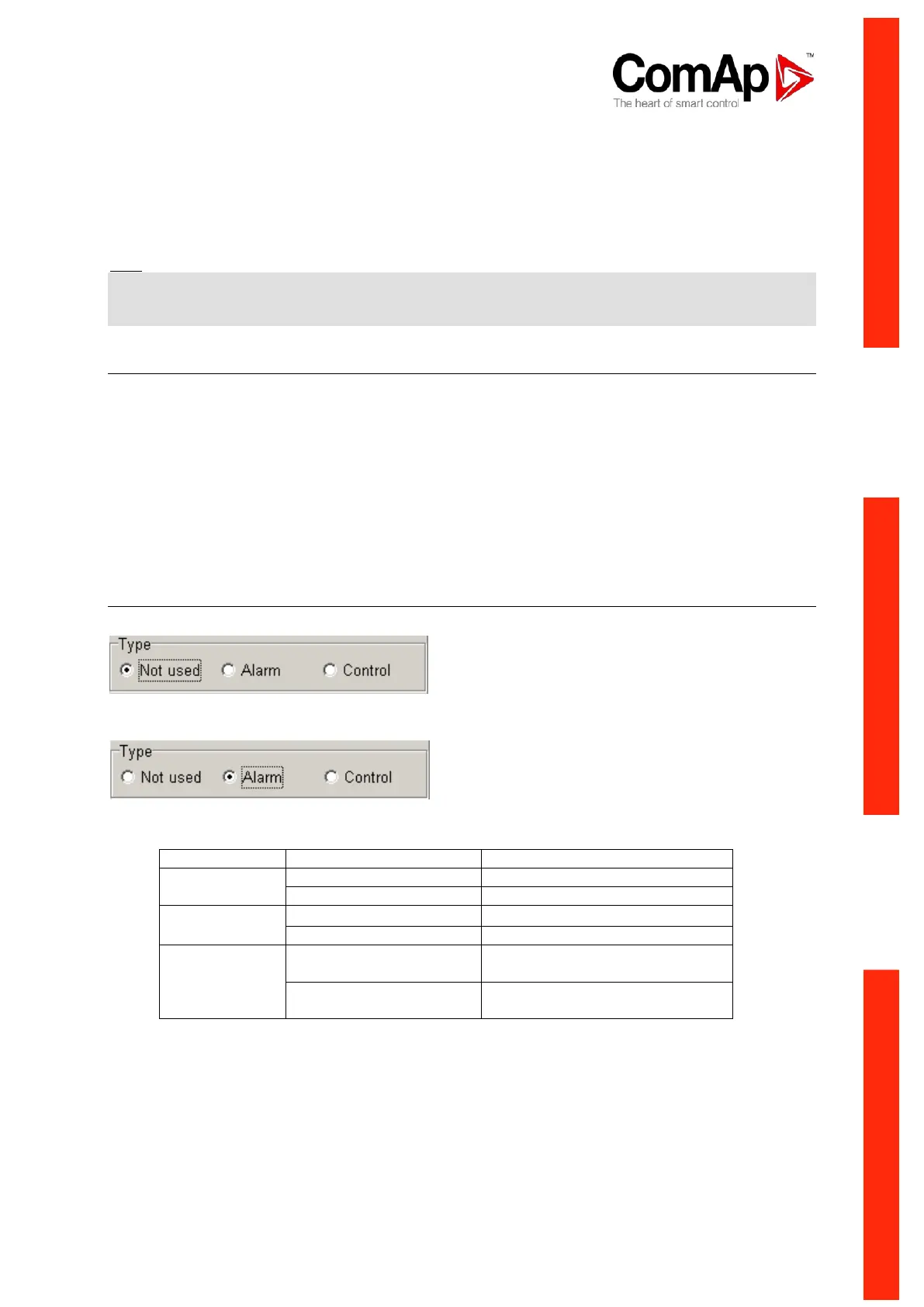

Inputs and Outputs
For Inputs/Outputs overview table see chapter Technical Data.
Hint:
Any Binary input or output can be configured to any IL-NT controller terminal or changed to different
function by LiteEdit software. There is fix 1 sec delay when any binary input is configured as
protection.
Binary inputs IL-NT - default
BI1 Oil Pressure (Control type)
BI2 High Eng Temp (Control type)
BI3 Not Used
BI4 MCB Feedback (Control type)
BI5 GCB Feedback (Control type)
BI6 Remote Start/Stop (Control type)
BI7 MainsFailBlock (Control type)
Binary inputs - list
Not Used
Binary input has no function. Use this configuration when Binary input is not connected.
Alarm
If the input is closed (or opened) selected alarm is activated.
Binary Alarm configuration items
Name
14 characters ASCII string
Contact type
NC
Normally closed
NO
Normally opened
Alarm type
Warning
Shut down
Alarm active
All the time
Valid if checkbox “Engine running
only” is not checked
Engine running only
Valid if checkbox “Engine running
only” is checked
