InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 14
AMF26-P-2.4 Reference Guide.pdf

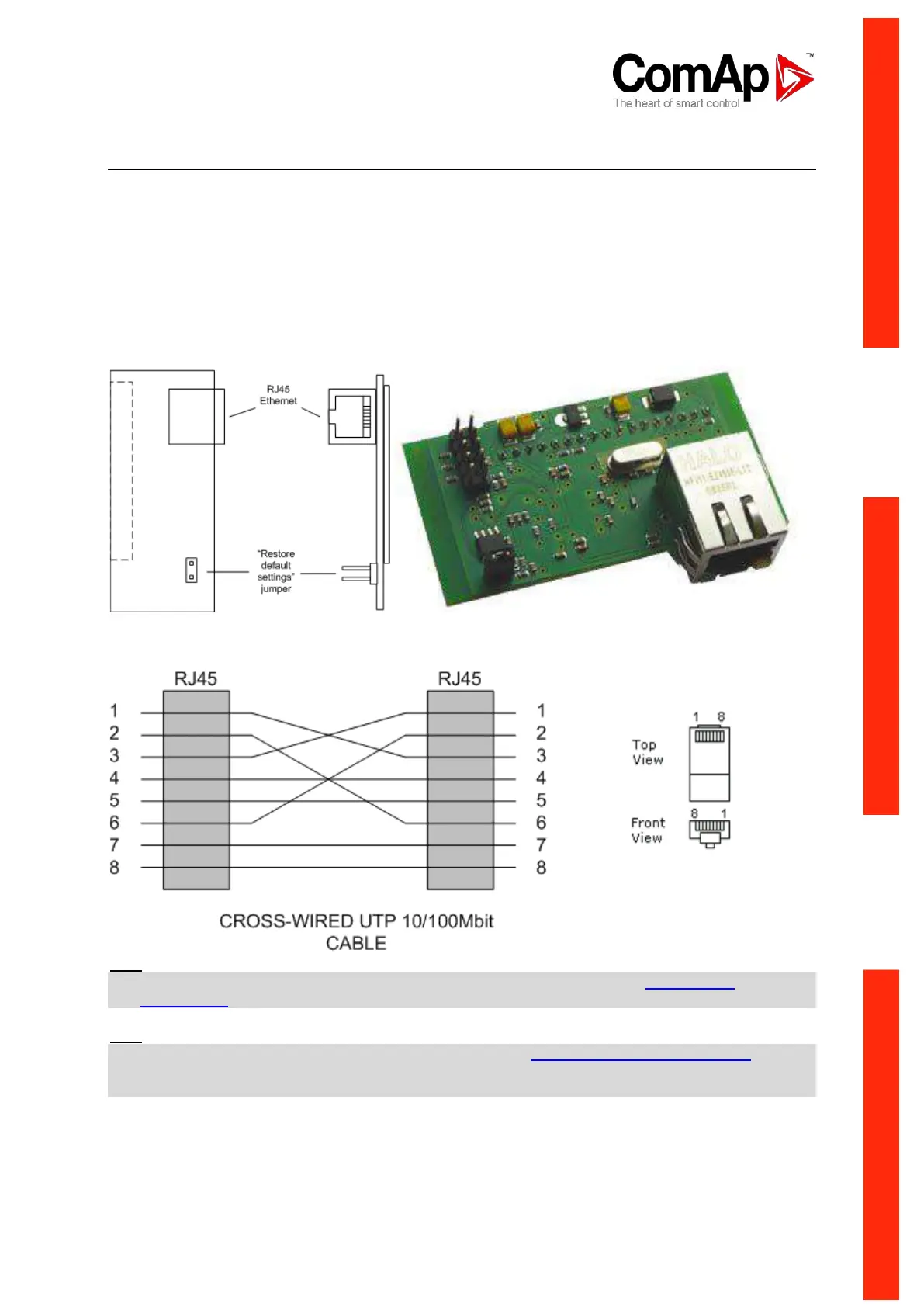

IB-Lite Ethernet communication plug-in card
IB-Lite is a plug-in card with Ethernet 10/100 Mbit interface in RJ45 connector. The card is internally
connected to both COM1 and COM2 serial channels and provides an interface for connecting a PC
with LiteEdit or InteliMonitor through ethernet/internet network, for sending active e-mails and for
integration of the controller into a building management (Modbus TCP protocol).
This card also enables to monitor and control the genset over web browser from any location with
internet access using appropriate security measures.
Card inserts into “extension module” slot back on the controller. To insert the module, please follow
the instructions for IL-NT RS232 module, procedure is analogical.
Use Ethernet UTP cable with RJ45 connector for connection of the module into your ethernet network.
The module can be also connected directly to a PC using cross-wired UTP cable.
Hint:
Modbus TCP protocol using IB-Lite communication module requires setting COM1 Mode = DIRECT
and COM2 Mode = MODBUS.
Hint:
The module requires some settings before initial usage. See IB-Lite-1.2-Reference Guide.pdf for more
details about IB-Lite communication plug-in card.
