Getting Started
How to install
During the configuration of controller or setpoints changes is required a password to the controller.
The default password from ComAp is “0”.
General
To ensure proper function:
Use grounding terminals.
Wiring for binary inputs and analog inputs must not be run with power cables.
Analog and binary inputs should use shielded cables, especially when length >3m.
Wiring
Tightening torque, allowable wire size and type, for the Field-Wiring Terminals:

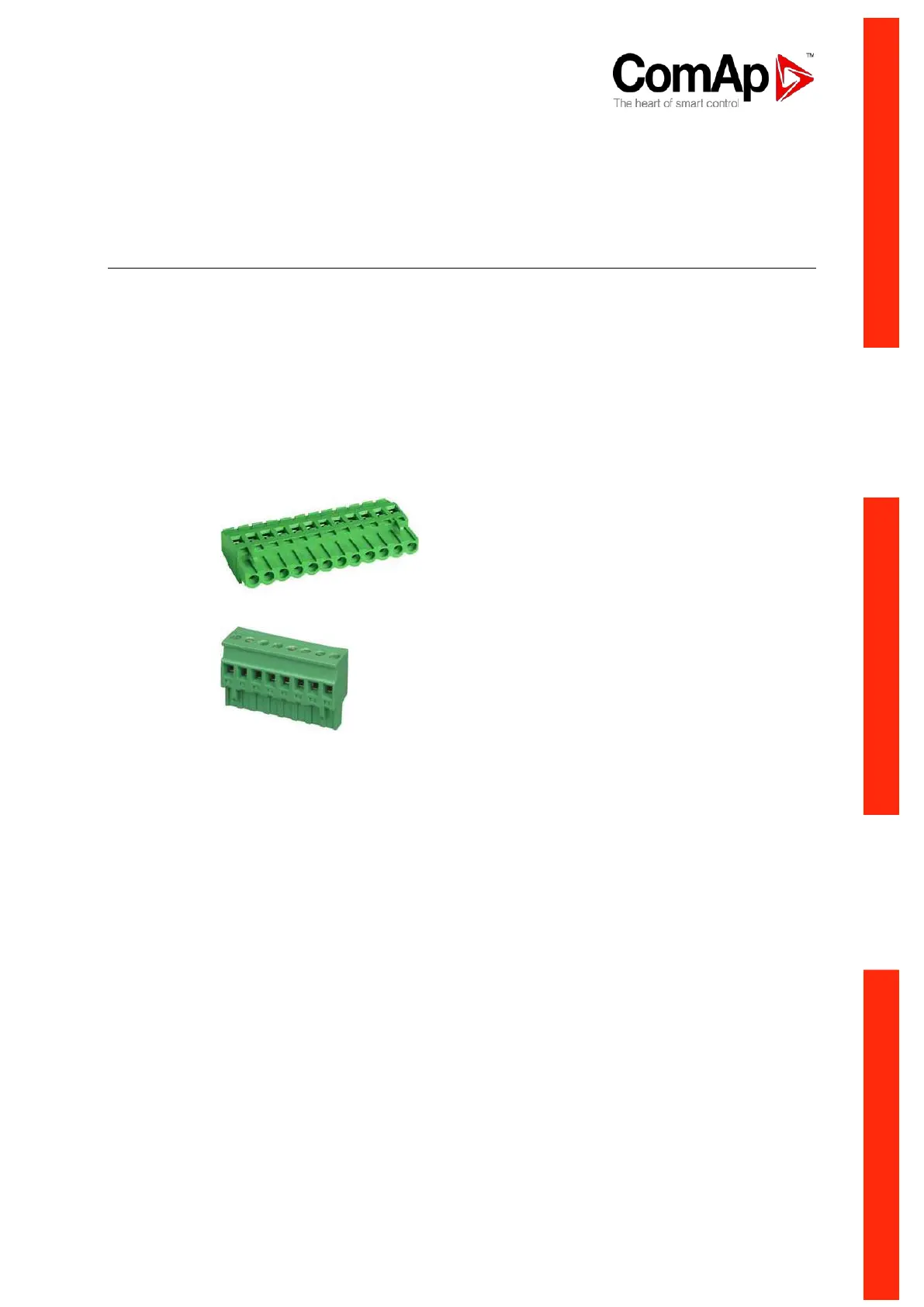

Based on terminal type:
PA256:
Specified tightening torque 0,5Nm (4,4 In-lb)
2EDGK:
Specified tightening torque 0,4Nm (3,5 In-lb)
For field type terminals:
Use only diameter 2,0-0,5mm (12-26AWG) conductor, rated for 75°C minimum.
For Mains(Bus) Voltage and Generator Voltage terminals
Use only diameter 2,0-0,5mm (12-26AWG) conductor, rated for 90°C minimum.
Use copper conductors only.
Grounding
The shortest possible piece of wire should be used for controller grounding.
Use cable min. 2,5mm
2
Brass M4x10 screw with star washer securing ring type grounding terminal shall be used.
The negative “-“ battery terminal has to be properly grounded.
Switchboard and engine has to be grounded in common spot. Use as short as possible cable to the
grounding point.
Power supply
To ensure proper function:
Use min. power supply cable of 1,5mm
2
