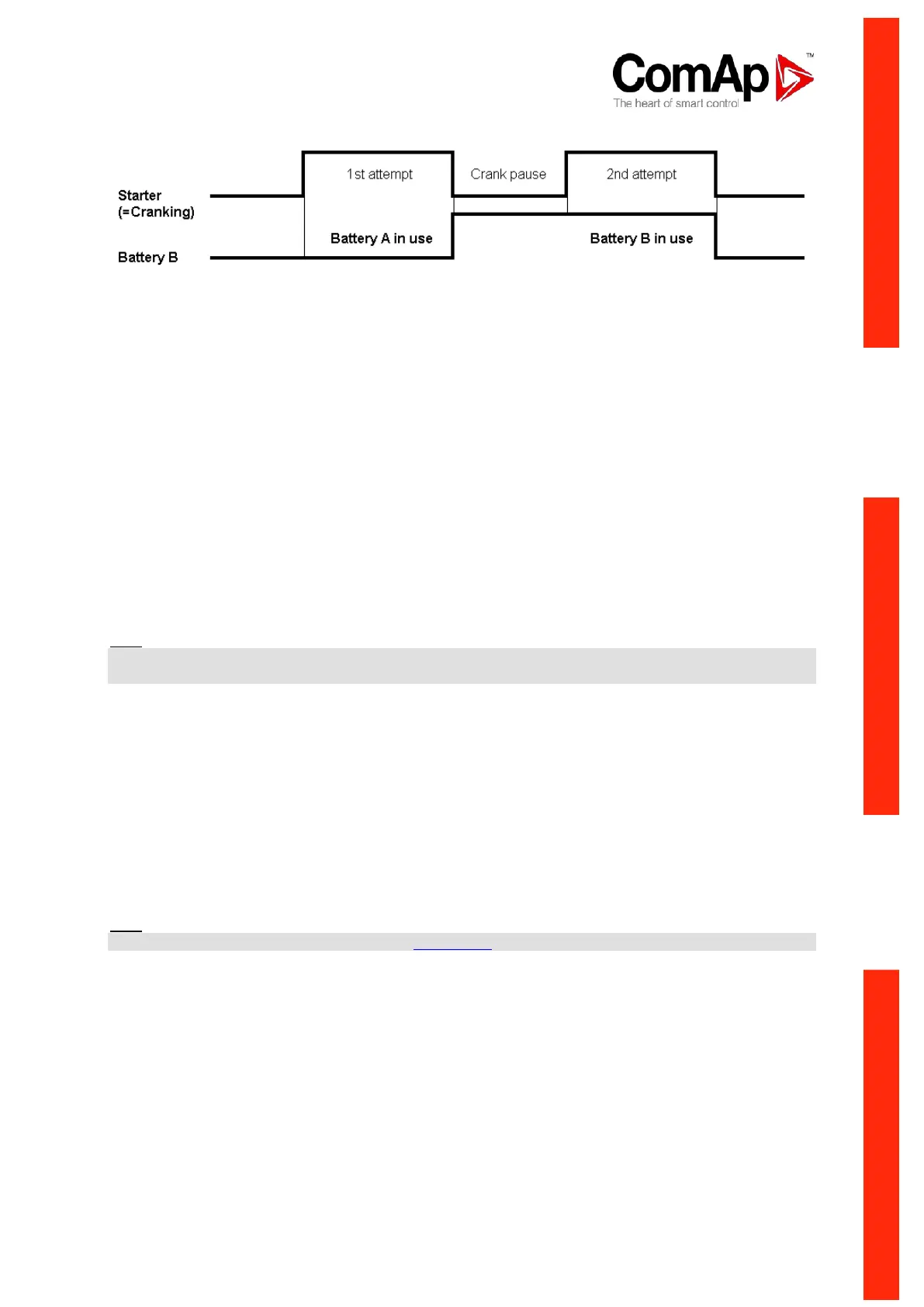

InteliLite
NT
AMF26-P, SW version 2.4, ©ComAp – January 2016 54
AMF26-P-2.4 Reference Guide.pdf
Fuel Solenoid
Closed output opens the fuel solenoid and enables the engine start.
The output opens if:
x EMERGENCY STOP comes or
x Cooled gen-set is stopped or
x in pause between repeated starts
Stop Solenoid
The closed output energizes stop solenoid to stop the engine.
The output is active at least for Stop Time, if the stop lasts longer, it stays active until all symptoms
say the engine is stopped.
The engine is stopped if:
RPM < 2 and
Generator voltage < 10V and
Oil pressure < Engine Params: Starting Oil P.
Hint:
The engine can be started anytime, if all symptoms say the engine is steady regardless of the fact the
Stop Solenoid can still be active (in that case it is deactivated before cranking).
Stop Pulse
The output is active for 1 second after Stop Solenoid output activation. This signal is sent to ECU in
case of engine stop request.
Ignition
The output closes after reaching value of crank RPM, fixed 30RPM. Opens after stopping of the
engine or in pause during repeated start.
Prestart
The output closes prior to the engine start (Prestart) and opens when Starting RPM speed is reached.
During Crank Attempts the output is closed too.
The output could be used for pre-glow, pre-heat or prelubrication.
Hint:
For more information see picture describing Glow Plugs binary output.
Cooling Pump
The output closes when gen-set starts and opens after stop of the engine.
Idle/Nominal
The output IDLE/NOMINAL closes after the timer Idle Time elapses. The Idle Time counter starts to
countdown when Starting RPM reached. The Underspeed protection is not evaluated during fixed 5
