Nominal Current
Short Crct Sd

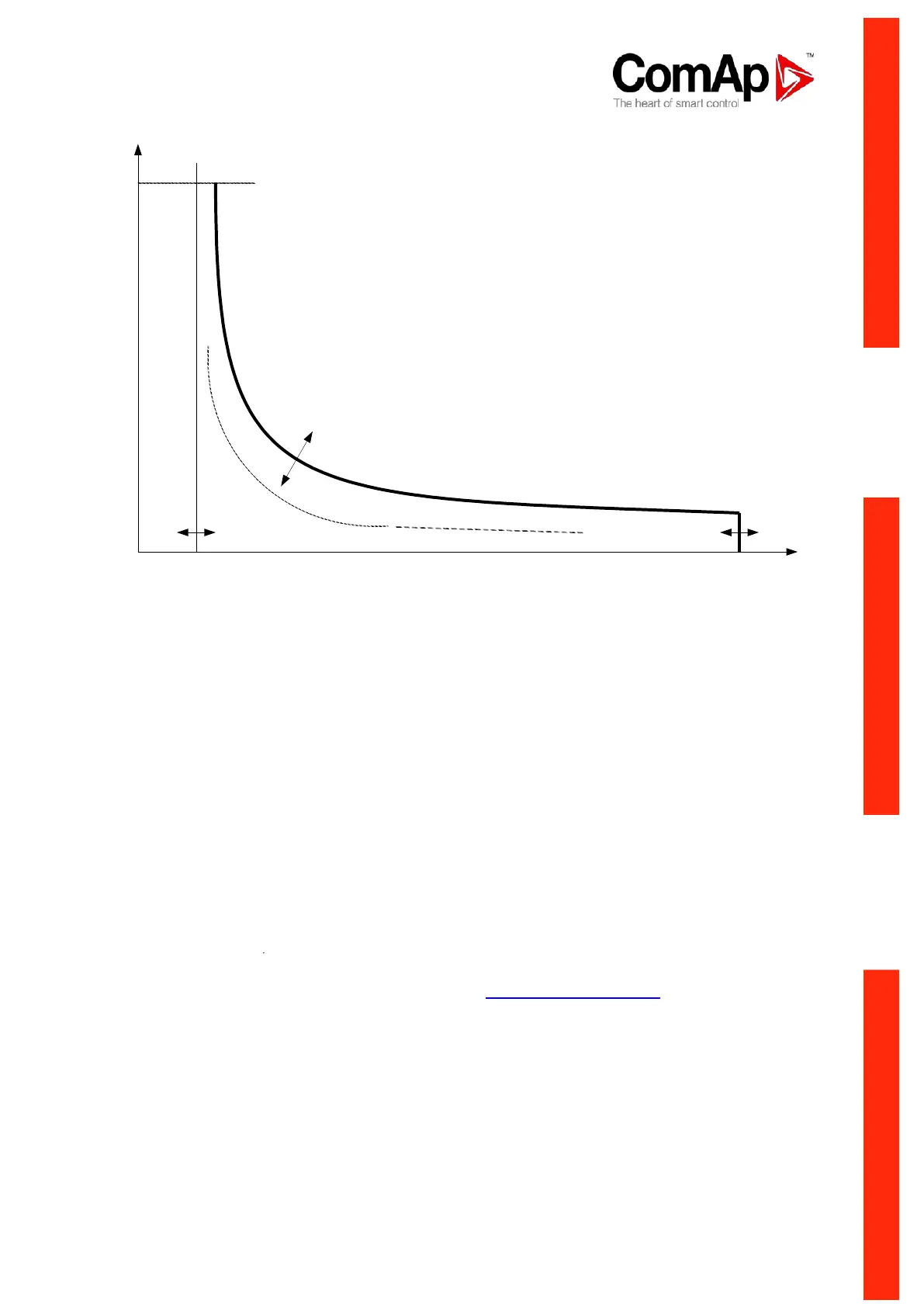

Amps IDMT Del
Maximal Reaction time
Reaction time
Amps Unbal Sd [%]
Threshold for generator current asymmetry (unbalance).
Step: 1% of Nominal current
Range: 1 – 200% of Nominal current
Amps Unbal Del [s]
Delay for generator current unbalance
Step: 0,1 s
Range: 0,0 – 600,0 s
EF Protection [ENABLED / DISABLED]
ENABLED: Earth Fault Protection is evaluated according to Earth Fault Sd and Earth Fault Del
setting. This setting makes sense only in case that IL-NT-EFCPM module is used.
DISABLED: Earth Fault Protection is NOT evaluated. This setting should be chosen in case that
IL-NT-EFCPM module is NOT used.
Earth Fault Sd [A]
Treshold for Earth Fault Sd protection.
Step: 0,01
Range: 0,03 to 5,00
For more information about Earth Fault Protection see Earth Fault measurement.
Earth Fault Del [s ]
Delay for Earth Fault Sd evaluation
Step: 0,01
Range: 0,03 to 5,00
