Detailed Statistics

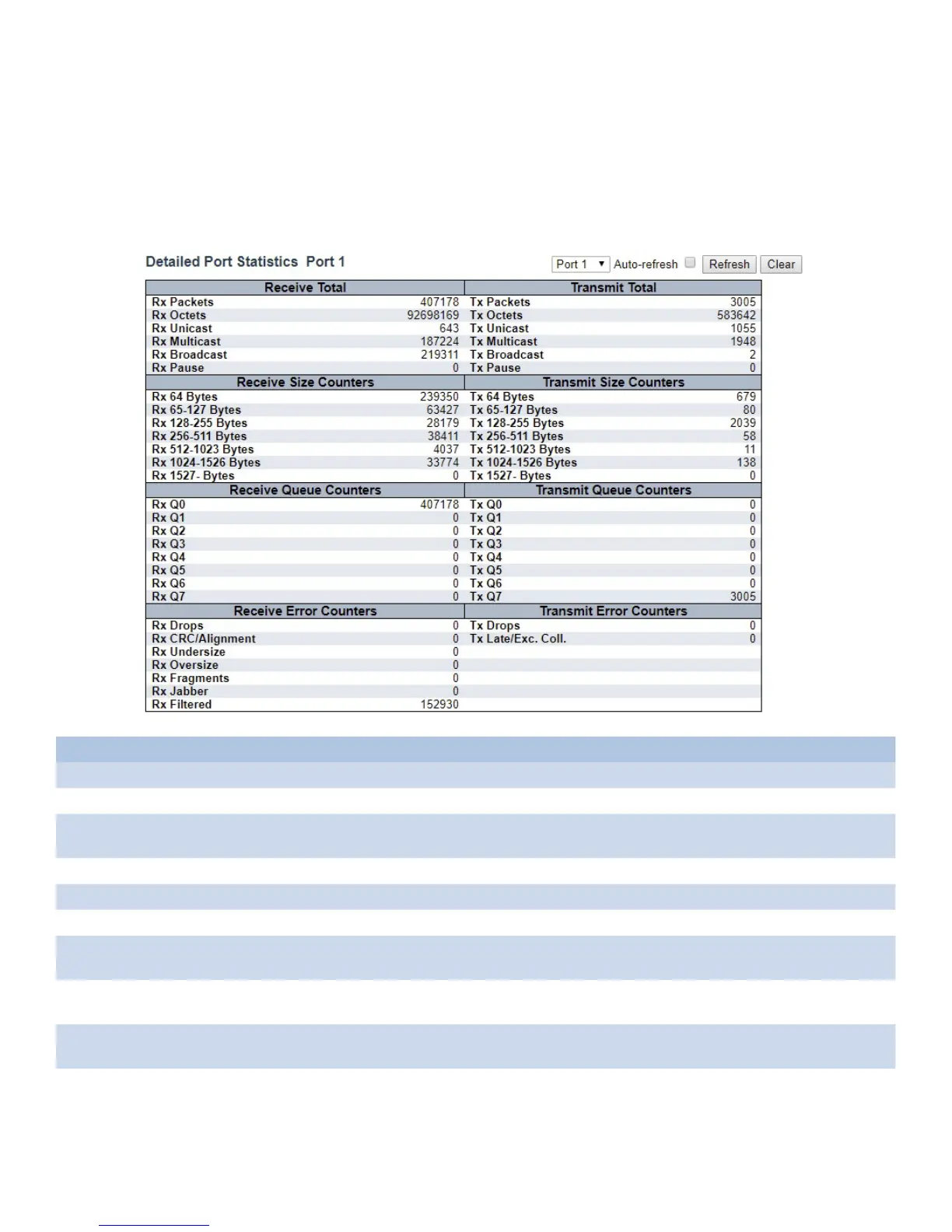

This page provides detailed traffic statistics for a specific switch port. Use the port select box to
select which switch port details to display.
The displayed counters are the totals for receive and transmit, the size counters for receive and
transmit, and the error counters for receive and transmit.
Object Description
Receive Total and Transmit Total
Rx and Tx Packets The number of received and transmitted (good and bad) packets.
Rx and Tx Octets The number of received and transmitted (good and bad) bytes. Includes FCS, but excludes
framing bits.
Rx and Tx Unicast The number of received and transmitted (good and bad) unicast packets.
Rx and Tx Multicast The number of received and transmitted (good and bad) multicast packets.
Rx and Tx Broadcast The number of received and transmitted (good and bad) broadcast packets.
Rx and Tx Pause A count of the MAC Control frames received or transmitted on this port that have an opcode
indicating a PAUSE operation.
Receive and Transmit
Size Counters
The number of received and transmitted (good and bad) packets split into categories based
on their respective frame sizes.
Receive and Transmit
Queue Counters
The number of received and transmitted packets per input and output queue.
Receive Error Counters
