4 CONTROLS

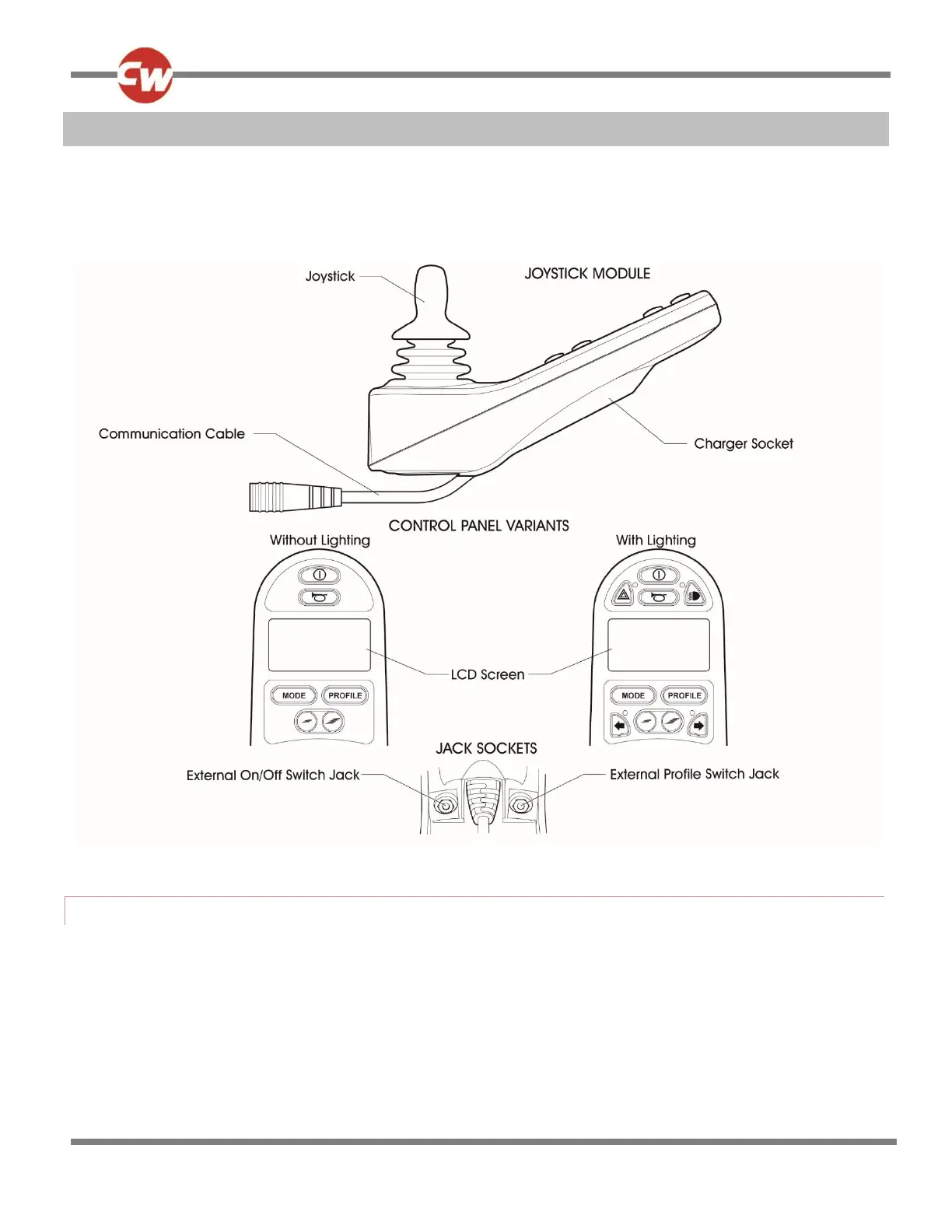

The R-net control system has two versions of Joystick Module – with and without lighting control. Most of the controls are
common to both however, the lighting buttons are only included on the Joystick Module with lighting control. Each of the
controls is explained within this section.
4.1 JOYSTICK
The primary function of the joystick is to control the speed and direction of the wheelchair. The further you push the joysti ck
from the center position the faster the wheelchair will move. When you release the joystick the brakes are automatically
applied.
If the wheelchair is fitted with actuators, the joystick can also be used to move and select actuators, refer to section 5.5 for
more details.
